DNSViz: A DNS visualization tool

ericgermann.photography

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • ericgermann.photography/MX
  • ericgermann.photography/NS
  • ericgermann.photography/NSEC3PARAM
  • ericgermann.photography/SOA
  • ericgermann.photography/TXT
Secure (1)
  • photography/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Insecure (6)
  • ericgermann.photography/DNSKEY (alg 13, id 36584)
  • ericgermann.photography/DNSKEY (alg 13, id 49677)
  • ericgermann.photography/DNSKEY (alg 15, id 13075)
  • ericgermann.photography/DNSKEY (alg 15, id 48248)
  • ericgermann.photography/DNSKEY (alg 8, id 32686)
  • ericgermann.photography/DNSKEY (alg 8, id 43126)
Secure (8)
  • ./DNSKEY (alg 8, id 18733)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 951)
  • NSEC3 proving non-existence of ericgermann.photography/DS
  • photography/DNSKEY (alg 8, id 29049)
  • photography/DNSKEY (alg 8, id 30361)
  • photography/DNSKEY (alg 8, id 40935)
  • photography/DS (alg 8, id 30361)

Delegation statusDelegation status

Insecure (1)
  • photography to ericgermann.photography
Secure (1)
  • . to photography

NoticesNotices

Errors (3)
  • NSEC3 proving non-existence of ericgermann.photography/DS: An iterations count of 0 must be used in NSEC3 records to alleviate computational burdens. See RFC 9276, Sec. 3.1.
  • NSEC3 proving non-existence of ericgermann.photography/DS: An iterations count of 0 must be used in NSEC3 records to alleviate computational burdens. See RFC 9276, Sec. 3.1.
  • ericgermann.photography/DS has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (3)
  • NSEC3 proving non-existence of ericgermann.photography/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.
  • NSEC3 proving non-existence of ericgermann.photography/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.
  • ericgermann.photography/DS has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

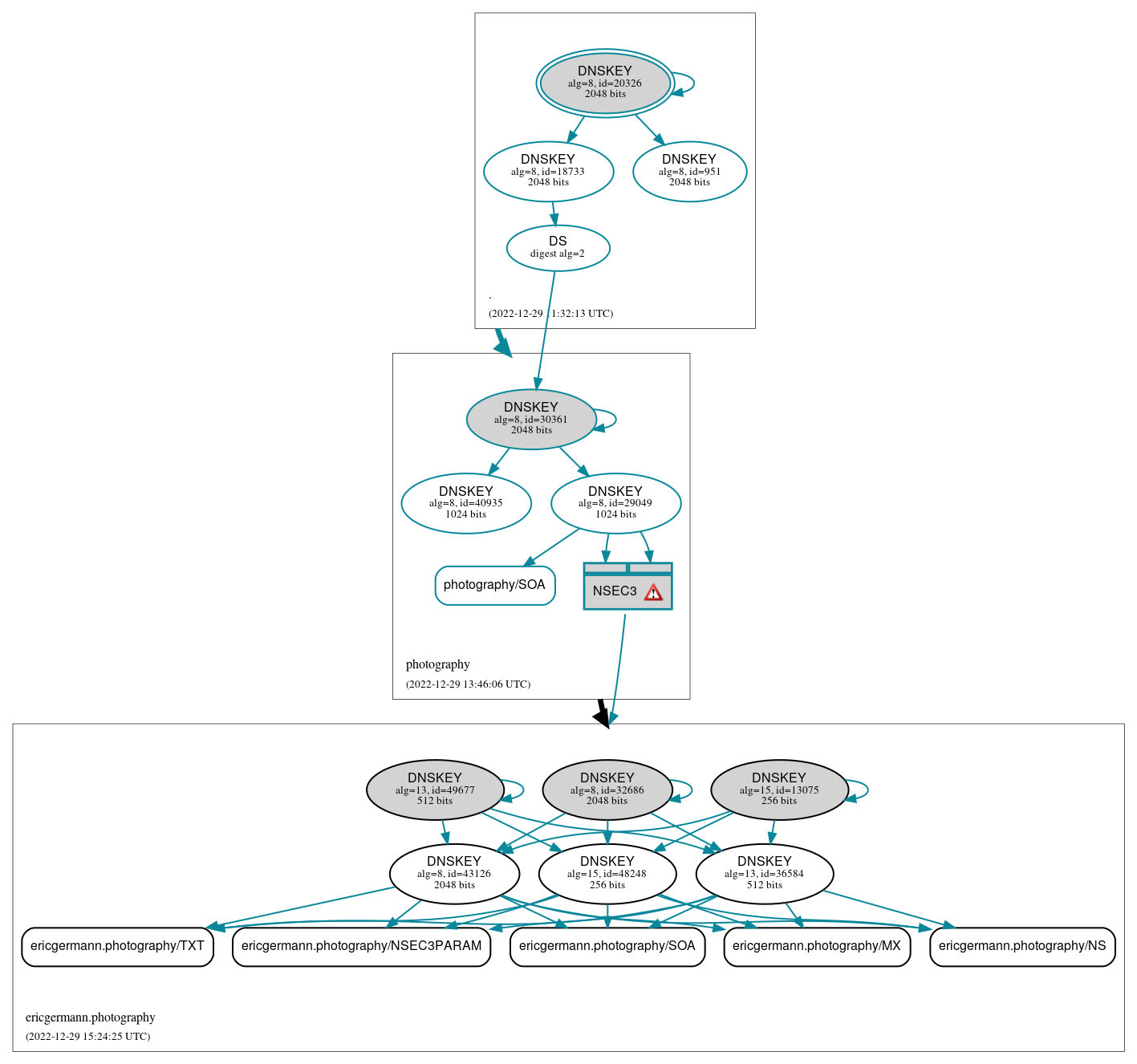

DNSSEC authentication graph
