DNSViz: A DNS visualization tool

uwgb.edu

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Bogus (1)
  • uwgb.edu/SOA
Secure (6)
  • uwgb.edu/A
  • uwgb.edu/MX
  • uwgb.edu/NS
  • uwgb.edu/NSEC3PARAM
  • uwgb.edu/SOA
  • uwgb.edu/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 61809)
  • edu/DNSKEY (alg 13, id 35663)
  • edu/DNSKEY (alg 13, id 35999)
  • edu/DS (alg 13, id 35663)
  • uwgb.edu/DNSKEY (alg 8, id 25050)
  • uwgb.edu/DNSKEY (alg 8, id 35881)
  • uwgb.edu/DNSKEY (alg 8, id 39714)
  • uwgb.edu/DS (alg 8, id 35881)

Delegation statusDelegation status

Secure (2)
  • . to edu
  • edu to uwgb.edu

NoticesNotices

Errors (28)
  • RRSIG uwgb.edu/A alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-15 16:52:21+00:00) is 2 days in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/A alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-15 16:52:21+00:00) is 2 days in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 35881: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 35881: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 35881: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/DNSKEY alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 02:14:13+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/MX alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 08:10:39+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/MX alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 08:10:39+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/NS alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-15 16:52:21+00:00) is 2 days in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/NS alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-15 16:52:21+00:00) is 2 days in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/NSEC3PARAM alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 02:24:44+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/NSEC3PARAM alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 02:24:44+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/SOA alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 13:36:17+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/SOA alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 13:36:17+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/TXT alg 8, id 25050: The Signature Expiration field of the RRSIG RR (2025-11-16 05:27:41+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • RRSIG uwgb.edu/TXT alg 8, id 39714: The Signature Expiration field of the RRSIG RR (2025-11-16 05:27:41+00:00) is 1 day in the past. See RFC 4035, Sec. 5.3.1.
  • edu to uwgb.edu: No valid RRSIGs made by a key corresponding to a DS RR were found covering the DNSKEY RRset, resulting in no secure entry point (SEP) into the zone. See RFC 4035, Sec. 2.2, RFC 6840, Sec. 5.11. (143.235.32.249, 143.235.32.250, 2600:1d00::a53:1, 2600:1d00::a53:2, TCP_-_EDNS0_4096_D_KN)
  • iq2my.45ung.uwgb.edu/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/DNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (5)
  • iq2my.45ung.uwgb.edu/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • uwgb.edu/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

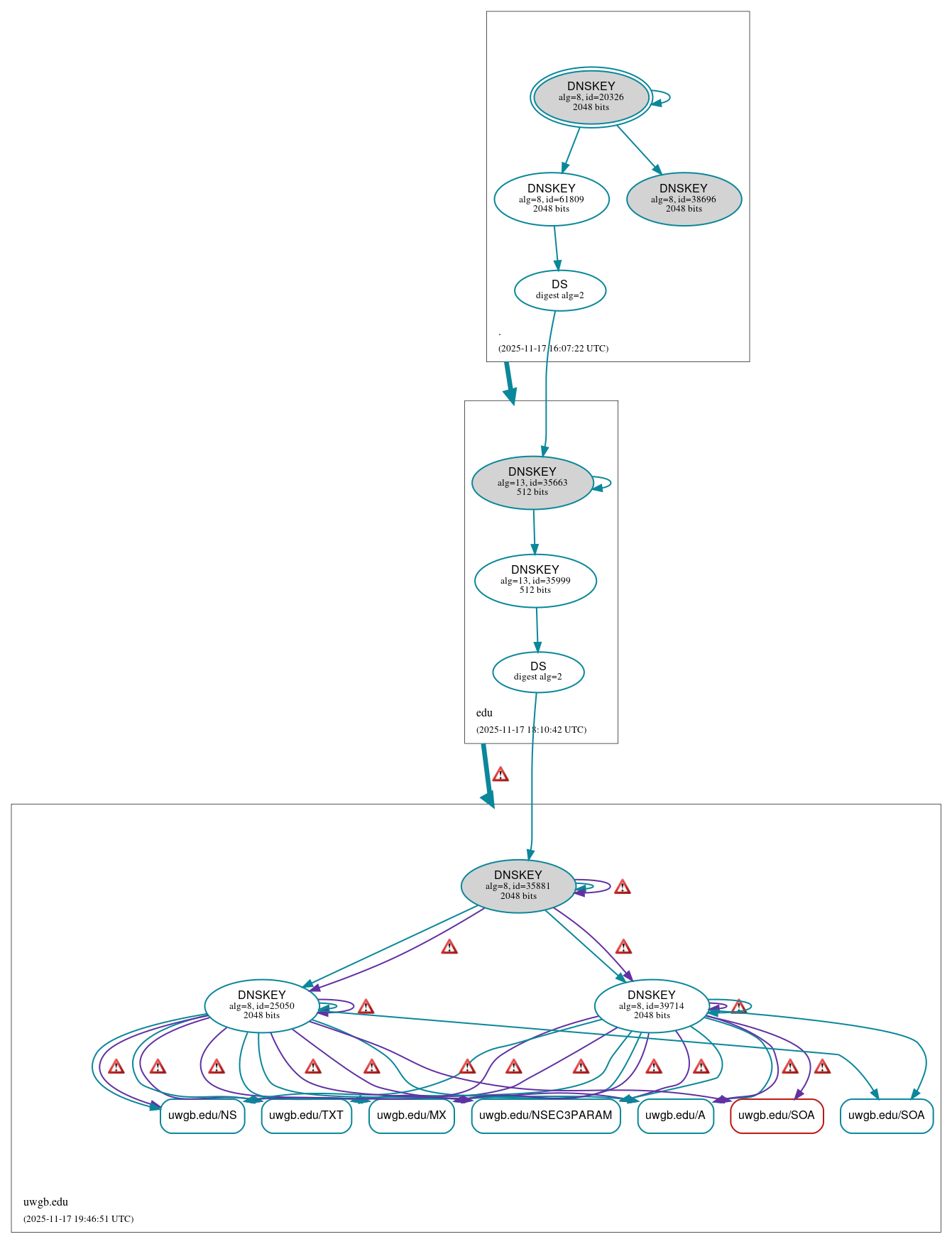

DNSSEC authentication graph
