DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • tm/NS
  • tm/NSEC3PARAM
  • tm/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 46441)
  • ./DNSKEY (alg 8, id 53148)
  • tm/DNSKEY (alg 8, id 36787)
  • tm/DNSKEY (alg 8, id 9849)
  • tm/DS (alg 8, id 36787)

Delegation statusDelegation status

Secure (1)
  • . to tm

NoticesNotices

Errors (6)
  • tm zone: The server(s) were not responsive to queries over TCP. See RFC 1035, Sec. 4.2. (64.251.31.180, 80.249.100.44, 2607:feb8::5:8, 2a13:f040::4000:0:0:44)
  • tm/SOA: No response was received from the server over TCP (tried 3 times). See RFC 1035, Sec. 4.2. (64.251.31.180, 80.249.100.44, 2607:feb8::5:8, 2a13:f040::4000:0:0:44, TCP_-_EDNS0_4096_D_N)
  • n9xa3.hp0zj.tm/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • tm/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • tm/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • tm/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (4)
  • n9xa3.hp0zj.tm/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • tm/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • tm/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • tm/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

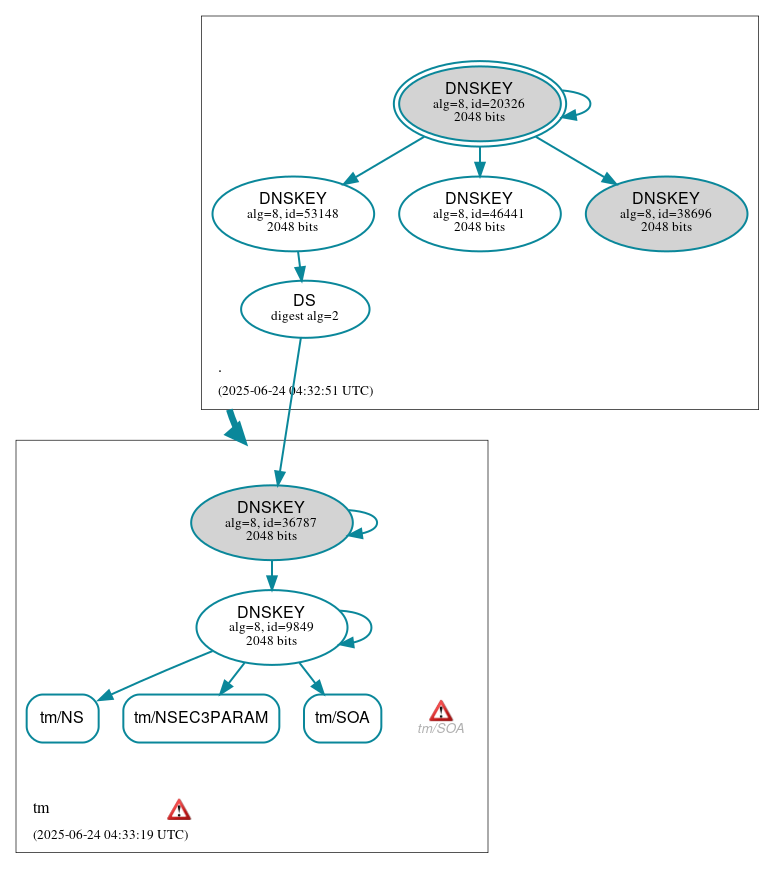

DNSSEC authentication graph
