soylentnews.org | DNSViz

soylentnews.org

Updated: 2024-11-22 23:26:57 UTC (1 day ago) Update now

DNSSEC options (hide)

|?| RR types:
|?| DNSSEC algorithms:
|?| DS digest algorithms:
|?| Denial of existence:
|?| Redundant edges:
|?| Ignore RFC 8624:
|?| Ignore RFC 9276:
|?| Multi-signer:
|?| Trust anchors:
- Root zone KSK
|?| Additional trusted keys:

Notices

DNSSEC Authentication Chain

RRset status

Secure (6)

soylentnews.org/A
soylentnews.org/AAAA
soylentnews.org/MX
soylentnews.org/NS
soylentnews.org/SOA
soylentnews.org/TXT

DNSKEY/DS/NSEC status

Secure (9)

./DNSKEY (alg 8, id 20326)
./DNSKEY (alg 8, id 61050)
org/DNSKEY (alg 8, id 11529)
org/DNSKEY (alg 8, id 26974)
org/DNSKEY (alg 8, id 42393)
org/DS (alg 8, id 26974)
soylentnews.org/DNSKEY (alg 13, id 14222)
soylentnews.org/DNSKEY (alg 13, id 37630)
soylentnews.org/DS (alg 13, id 37630)

Delegation status

Secure (2)

. to org
org to soylentnews.org

Notices

Errors (3)

soylentnews.org zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (69.43.31.82, 2602:fd63:12::2)
soylentnews.org/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (69.43.31.82, 2602:fd63:12::2, UDP_-_NOEDNS_)
soylentnews.org/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (69.43.31.82, 2602:fd63:12::2, UDP_-_NOEDNS_)

DNSKEY legend

Full legend

	SEP bit set
	Revoke bit set
	Trust anchor

See also

DNSSEC Debugger by Verisign Labs.

Download: png | svg

Warning

JavaScript is required to make the graph below interactive.

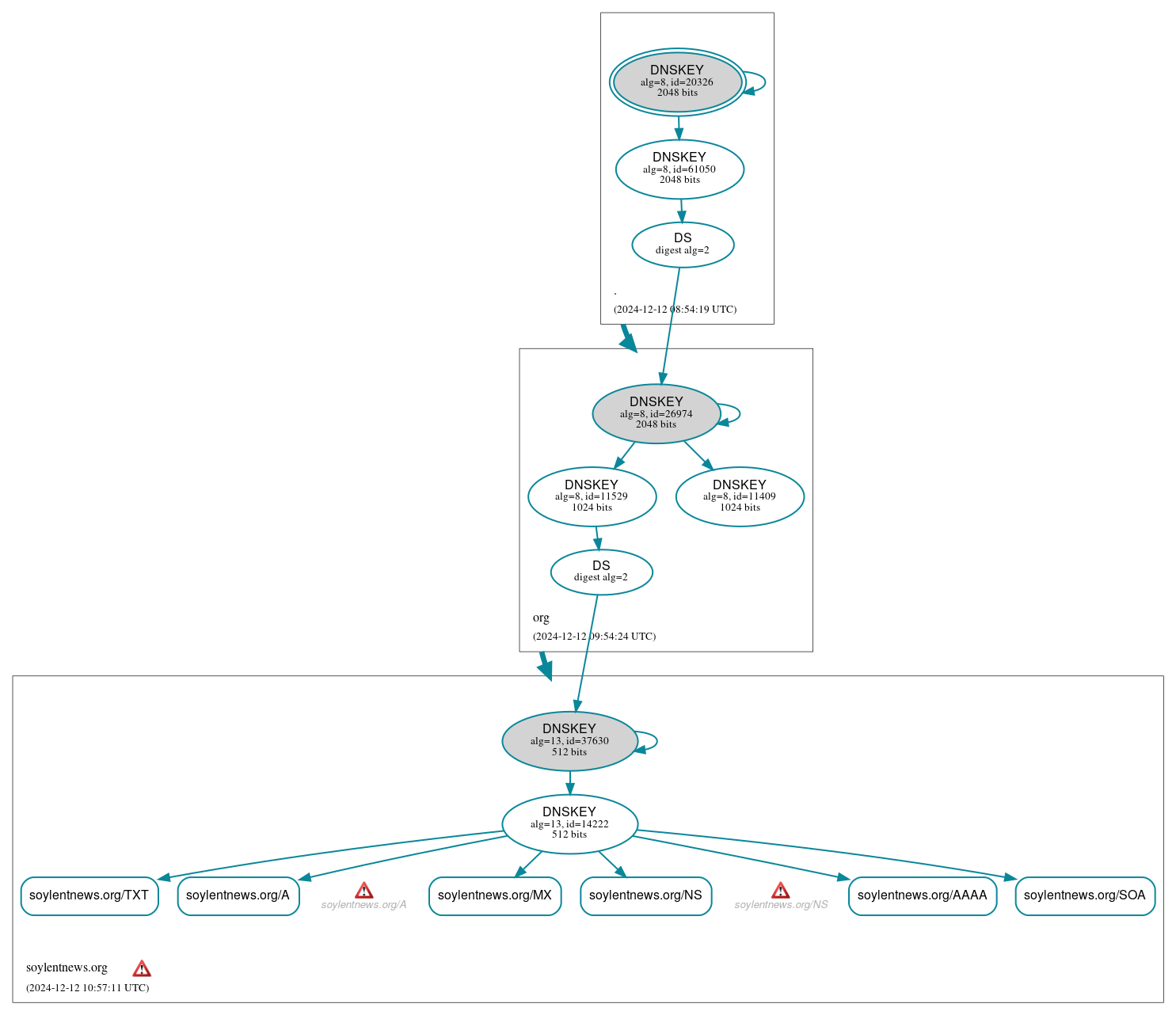

DNSSEC authentication graph
