DNSViz: A DNS visualization tool

prc.gov

Updated: 2021-07-13 21:55:53 UTC (1228 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • prc.gov/A
  • prc.gov/MX
  • prc.gov/NS
  • prc.gov/SOA
  • prc.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26838)
  • gov/DNSKEY (alg 8, id 48498)
  • gov/DNSKEY (alg 8, id 57735)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • prc.gov/DNSKEY (alg 7, id 14430)
  • prc.gov/DNSKEY (alg 7, id 40220)
  • prc.gov/DNSKEY (alg 7, id 44058)
  • prc.gov/DNSKEY (alg 7, id 9245)
  • prc.gov/DS (alg 7, id 14430)
  • prc.gov/DS (alg 7, id 14430)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to prc.gov

NoticesNotices

Errors (3)
  • prc.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • 62vz1rwblx.prc.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • prc.gov/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (23)
  • RRSIG prc.gov/A alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 14430: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 14430: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 14430: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 14430: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/DNSKEY alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/MX alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/NS alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/SOA alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • RRSIG prc.gov/TXT alg 7, id 40220: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1). See RFC 8624, Sec. 3.1.
  • gov to prc.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): sauthns1.qwest.net, sauthns2.qwest.net See RFC 1034, Sec. 4.2.2.
  • gov to prc.gov: The following NS name(s) were found in the delegation NS RRset (i.e., in the gov zone), but not in the authoritative NS RRset: sauthns1.centurylink.net, sauthns2.centurylink.net See RFC 1034, Sec. 4.2.2.
  • prc.gov/DS (alg 7, id 14430): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • prc.gov/DS (alg 7, id 14430): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • prc.gov/DS (alg 7, id 14430): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • prc.gov/DS (alg 7, id 14430): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • prc.gov/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • prc.gov/DNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • 62vz1rwblx.prc.gov/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • prc.gov/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

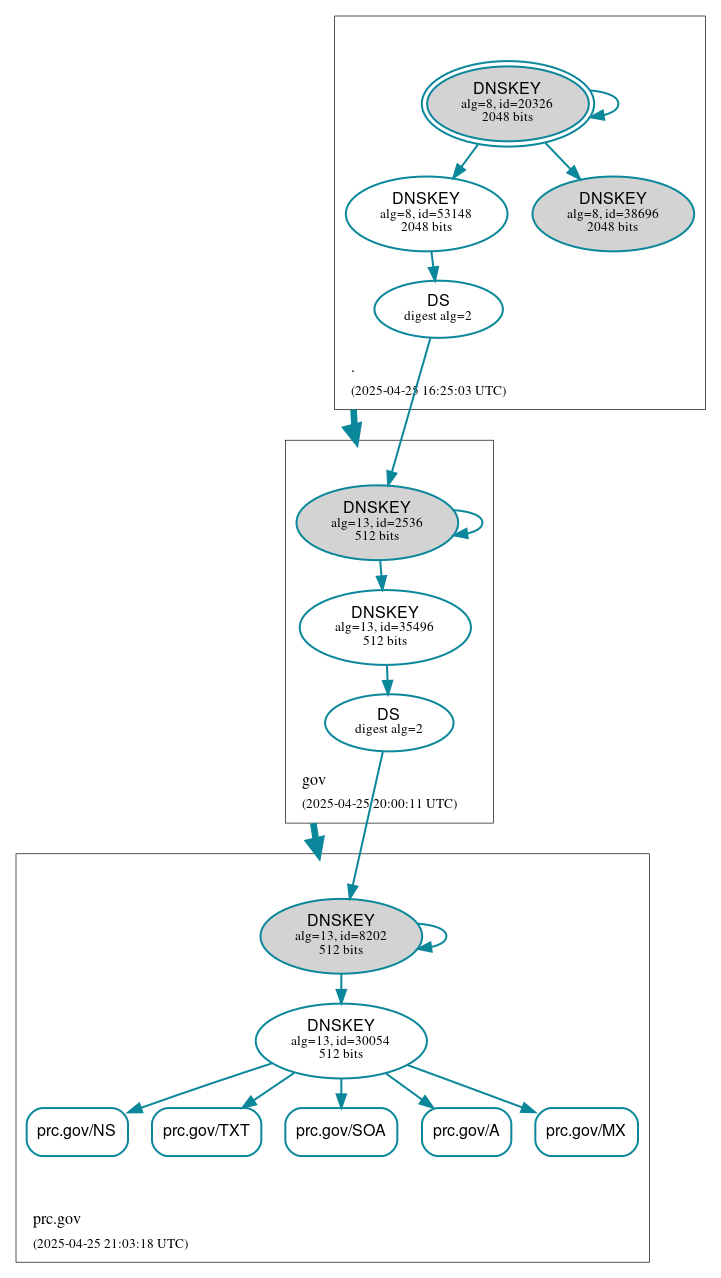

DNSSEC authentication graph
