DNSViz: A DNS visualization tool

ns1.eriomem.net

Updated: 2025-01-08 09:53:24 UTC (366 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (2)
  • ns1.eriomem.net/A
  • ns1.eriomem.net/AAAA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (9)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26470)
  • ./DNSKEY (alg 8, id 61050)
  • eriomem.net/DNSKEY (alg 10, id 20482)
  • eriomem.net/DNSKEY (alg 10, id 65420)
  • eriomem.net/DS (alg 10, id 20482)
  • net/DNSKEY (alg 13, id 31059)
  • net/DNSKEY (alg 13, id 37331)
  • net/DS (alg 13, id 37331)

Delegation statusDelegation status

Secure (2)
  • . to net
  • net to eriomem.net

NoticesNotices

Errors (1)
  • eriomem.net zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (51.15.1.132, 2001:bc8:30a3:200::1)
Warnings (7)
  • RRSIG eriomem.net/DNSKEY alg 10, id 20482: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 10 (RSASHA512). See RFC 8624, Sec. 3.1.
  • RRSIG eriomem.net/DNSKEY alg 10, id 20482: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 10 (RSASHA512). See RFC 8624, Sec. 3.1.
  • RRSIG ns1.eriomem.net/A alg 10, id 65420: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 10 (RSASHA512). See RFC 8624, Sec. 3.1.
  • RRSIG ns1.eriomem.net/AAAA alg 10, id 65420: DNSSEC implementers are recommended against implementing signing with DNSSEC algorithm 10 (RSASHA512). See RFC 8624, Sec. 3.1.
  • net to eriomem.net: The glue address(es) for ns1.eriomem.net (2001:bc8:30a3:200::1) differed from its authoritative address(es) (2a05:f480:1400:2c3f:5400:4ff:fef4:e48). See RFC 1034, Sec. 4.2.2.
  • net to eriomem.net: The glue address(es) for ns1.eriomem.net (51.15.1.132) differed from its authoritative address(es) (136.244.111.41). See RFC 1034, Sec. 4.2.2.
  • eriomem.net/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

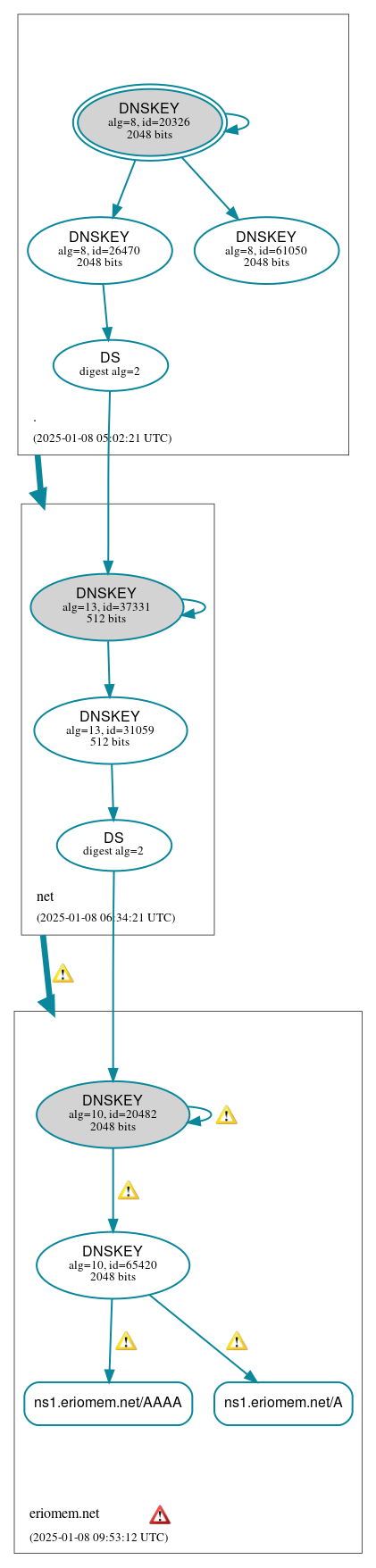

DNSSEC authentication graph
