navy.mil
Updated:
2025-12-18 22:08:59 UTC (11 days ago)
Go to most recent »
Notices
DNSSEC Authentication Chain
RRset status
Secure (6)
- navy.mil/A
- navy.mil/MX
- navy.mil/NS
- navy.mil/NSEC3PARAM
- navy.mil/SOA
- navy.mil/TXT
DNSKEY/DS/NSEC status
Secure (13)
- ./DNSKEY (alg 8, id 20326)
- ./DNSKEY (alg 8, id 38696)
- ./DNSKEY (alg 8, id 61809)
- mil/DNSKEY (alg 8, id 27018)
- mil/DNSKEY (alg 8, id 45019)
- mil/DNSKEY (alg 8, id 48003)
- mil/DS (alg 8, id 45019)
- navy.mil/DNSKEY (alg 8, id 42766)
- navy.mil/DNSKEY (alg 8, id 50332)
- navy.mil/DNSKEY (alg 8, id 52315)
- navy.mil/DNSKEY (alg 8, id 59958)
- navy.mil/DS (alg 8, id 50332)
- navy.mil/DS (alg 8, id 50332)
Delegation status
Secure (2)
- . to mil
- mil to navy.mil
Notices
Errors (11)
- navy.mil zone: The following NS name(s) did not resolve to address(es): squad.navo.mil, squid.navo.mil, minnow.navo, squid.navo
- navy.mil zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (140.16.248.54, 192.252.143.243, 192.252.154.243, 192.252.155.243, 192.252.157.243, 192.252.162.243, 192.252.180.243)
- navy.mil/A: No response was received from the server over UDP (tried 11 times). See RFC 1035, Sec. 4.2. (192.252.143.243, UDP_-_EDNS0_4096_D_KN)
- navy.mil/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (140.16.248.54, 192.252.154.243, 192.252.155.243, 192.252.157.243, 192.252.162.243, 192.252.180.243, UDP_-_NOEDNS_)
- navy.mil/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (140.16.248.54, 192.252.154.243, 192.252.155.243, 192.252.157.243, 192.252.162.243, 192.252.180.243, UDP_-_NOEDNS_)
- navy.mil/NS: No response was received from the server over UDP (tried 15 times). See RFC 1035, Sec. 4.2. (192.252.143.243, UDP_-_EDNS0_4096_D_KN)
- navy.mil/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
- cr6ms.v7fk9.navy.mil/A has errors; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (12)
- mil to navy.mil: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the mil zone): squid.navo.mil, crnaone.navy.mil, minnow.navo, navy.mil, squid.navo, squad.navo.mil See RFC 1034, Sec. 4.2.2.
- navy.mil/A: No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. See RFC 6891, Sec. 6.2.6. (214.23.245.6, UDP_-_EDNS0_4096_D_KN)
- navy.mil/DS (alg 8, id 50332): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
- navy.mil/DS (alg 8, id 50332): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
- navy.mil/DS (alg 8, id 50332): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
- navy.mil/DS (alg 8, id 50332): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
- navy.mil/SOA: No response was received from the server over UDP (tried 4 times) until the 100 EDNS option was removed. See RFC 6891, Sec. 6.1.2. (131.77.60.232, UDP_-_EDNS0_512__O(100)KN)
- navy.mil/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
- cr6ms.v7fk9.navy.mil/A has warnings; select the "Denial of existence" DNSSEC option to see them.
- navy.mil/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.

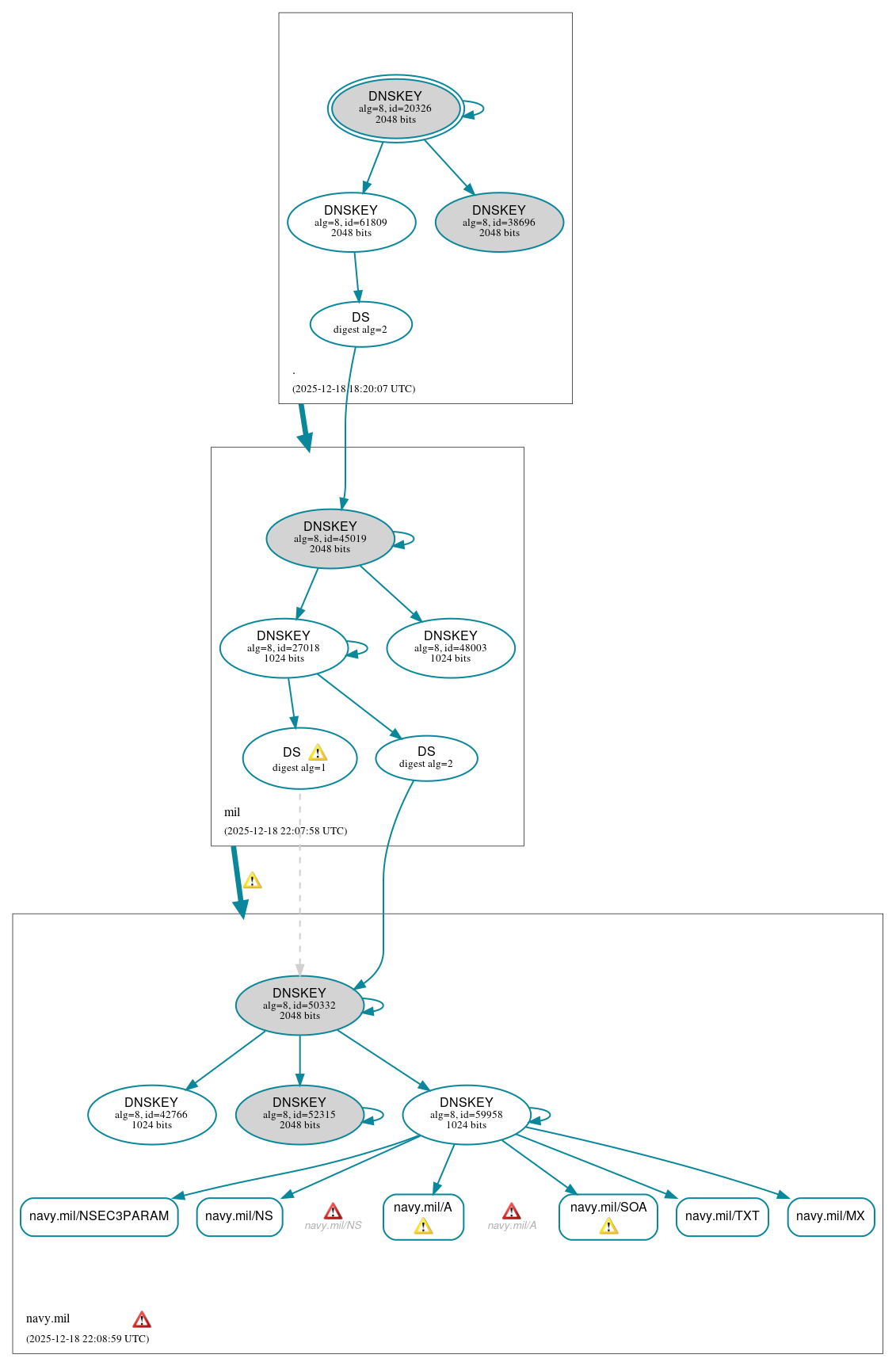

JavaScript is required to make the graph below interactive.
