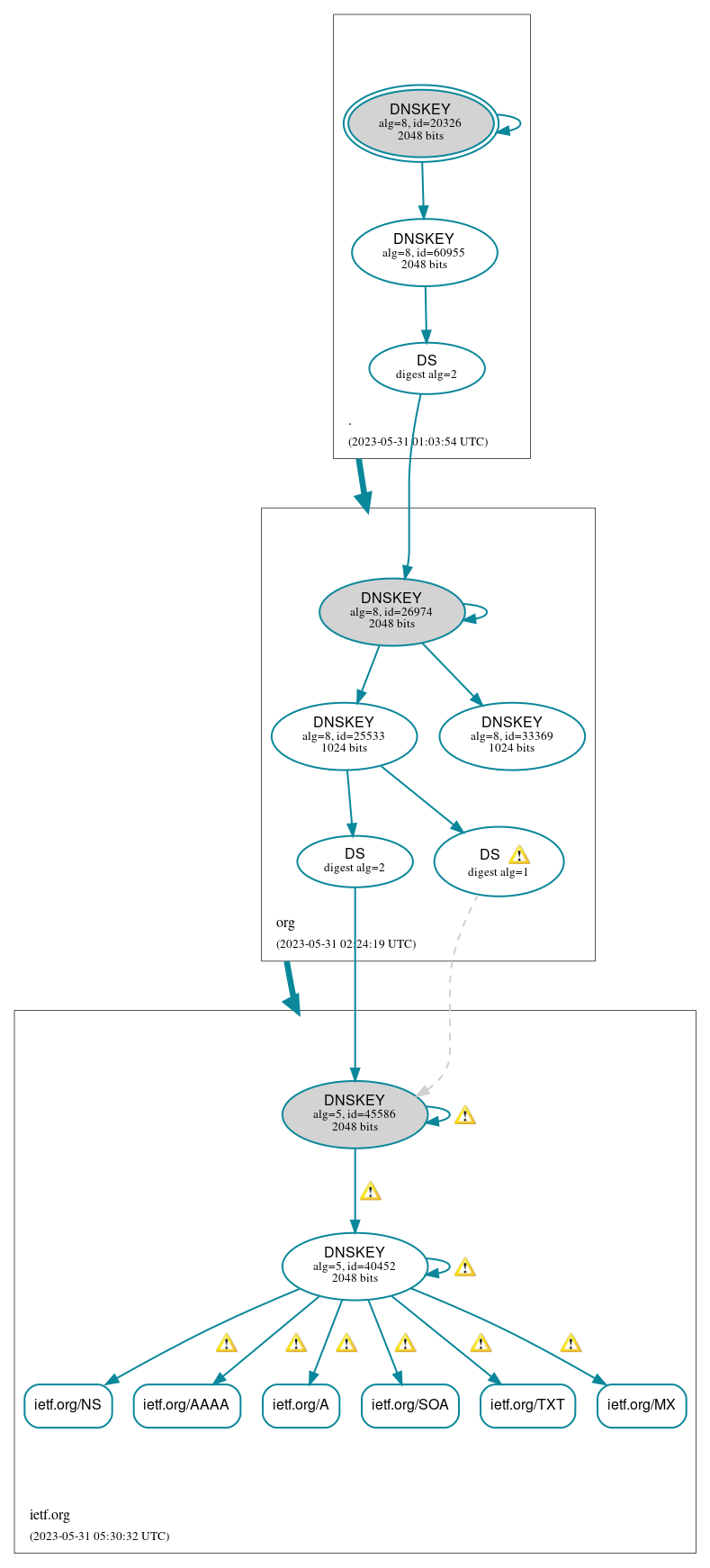

DNSSEC Authentication Chain
RRset status
Secure
(6)
ietf.org/A
ietf.org/AAAA
ietf.org/MX
ietf.org/NS
ietf.org/SOA
ietf.org/TXT
DNSKEY/DS/NSEC status
Secure
(10)
./DNSKEY (alg 8, id 20326)
./DNSKEY (alg 8, id 60955)
ietf.org/DNSKEY (alg 5, id 40452)
ietf.org/DNSKEY (alg 5, id 45586)
ietf.org/DS (alg 5, id 45586)
ietf.org/DS (alg 5, id 45586)
org/DNSKEY (alg 8, id 25533)
org/DNSKEY (alg 8, id 26974)
org/DNSKEY (alg 8, id 33369)
org/DS (alg 8, id 26974)
Delegation status
Secure
(2)
. to org
org to ietf.org
Notices
Warnings
(14)
RRSIG ietf.org/A alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/AAAA alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/DNSKEY alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/DNSKEY alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/DNSKEY alg 5, id 45586: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/DNSKEY alg 5, id 45586: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/MX alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/NS alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/SOA alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
RRSIG ietf.org/TXT alg 5, id 40452: DNSSEC specification recommends not signing with DNSSEC algorithm 5 (RSASHA1).
ietf.org/DS (alg 5, id 45586): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
ietf.org/DS (alg 5, id 45586): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
ietf.org/DS (alg 5, id 45586): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
ietf.org/DS (alg 5, id 45586): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
DNSKEY legend
Full legend
SEP bit set
Revoke bit set
Trust anchor
