DNSViz: A DNS visualization tool

fj

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • fj/NS
  • fj/NSEC3PARAM
  • fj/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 46441)
  • ./DNSKEY (alg 8, id 53148)
  • fj/DNSKEY (alg 15, id 53415)
  • fj/DNSKEY (alg 15, id 57406)
  • fj/DS (alg 15, id 53415)

Delegation statusDelegation status

Secure (1)
  • . to fj

NoticesNotices

Errors (4)
  • fj/NSEC3PARAM: The response had an invalid RCODE (SERVFAIL). See RFC 1035, Sec. 4.1.1. (185.28.194.194, UDP_-_NOEDNS_)
  • fj/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • 26ojw.83ru2.fj/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • fj/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

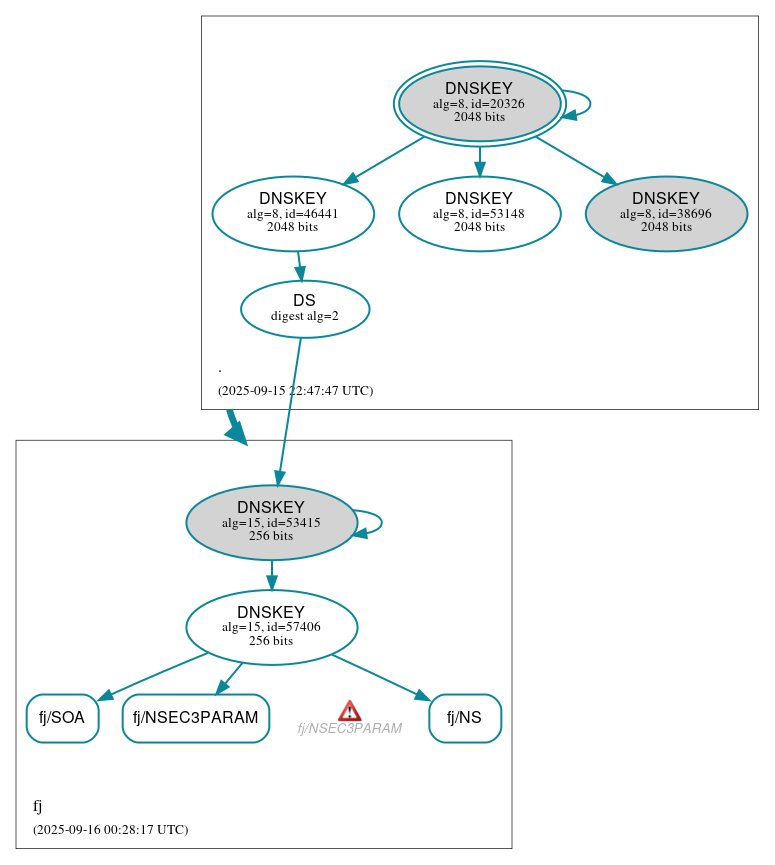

DNSSEC authentication graph
