DNSViz: A DNS visualization tool

disasterhousing.gov

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • disasterhousing.gov/A
  • disasterhousing.gov/AAAA
  • disasterhousing.gov/NS
  • disasterhousing.gov/NSEC3PARAM
  • disasterhousing.gov/SOA
  • disasterhousing.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 46441)
  • ./DNSKEY (alg 8, id 61809)
  • disasterhousing.gov/DNSKEY (alg 8, id 15597)
  • disasterhousing.gov/DNSKEY (alg 8, id 36982)
  • disasterhousing.gov/DNSKEY (alg 8, id 38708)
  • disasterhousing.gov/DNSKEY (alg 8, id 6375)
  • disasterhousing.gov/DS (alg 8, id 36982)
  • disasterhousing.gov/DS (alg 8, id 36982)
  • gov/DNSKEY (alg 13, id 2536)
  • gov/DNSKEY (alg 13, id 35496)
  • gov/DS (alg 13, id 2536)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to disasterhousing.gov

NoticesNotices

Errors (6)
  • gov/DS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (193.0.14.129, UDP_-_NOEDNS_)
  • vj6bq.opeb7.disasterhousing.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/MX has errors; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (8)
  • disasterhousing.gov/DS (alg 8, id 36982): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • disasterhousing.gov/DS (alg 8, id 36982): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • disasterhousing.gov/DS (alg 8, id 36982): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • disasterhousing.gov/DS (alg 8, id 36982): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • disasterhousing.gov/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/MX has warnings; select the "Denial of existence" DNSSEC option to see them.
  • disasterhousing.gov/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

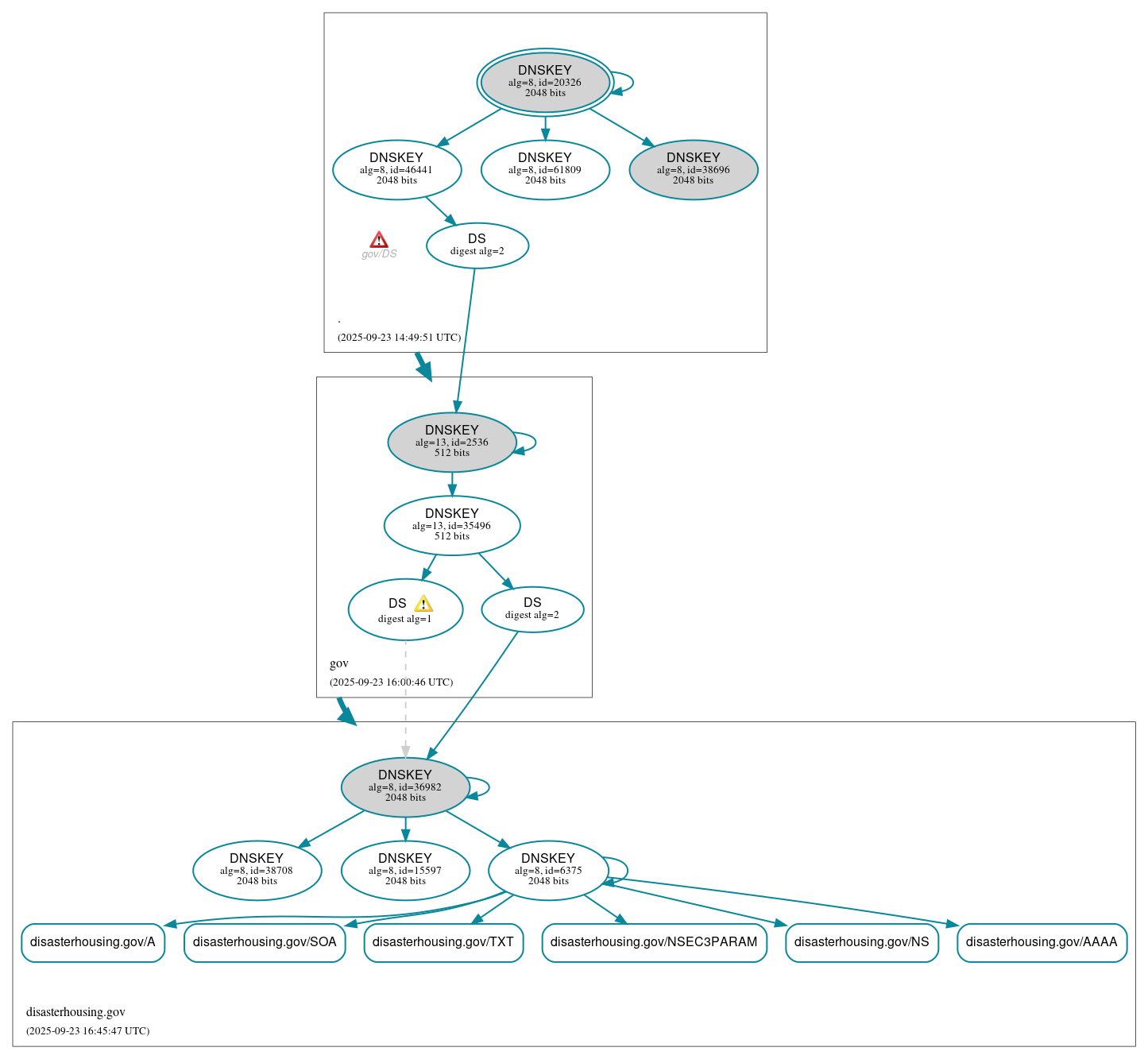

DNSSEC authentication graph
