DNSViz: A DNS visualization tool

codewiz.org

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • codewiz.org/A
  • codewiz.org/AAAA
  • codewiz.org/MX
  • codewiz.org/NS
  • codewiz.org/SOA
  • codewiz.org/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20038)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • codewiz.org/DNSKEY (alg 13, id 53631)
  • codewiz.org/DNSKEY (alg 13, id 58505)
  • codewiz.org/DS (alg 13, id 53631)
  • org/DNSKEY (alg 8, id 26974)
  • org/DNSKEY (alg 8, id 36783)
  • org/DNSKEY (alg 8, id 55149)
  • org/DS (alg 8, id 26974)

Delegation statusDelegation status

Secure (2)
  • . to org
  • org to codewiz.org

NoticesNotices

Errors (16)
  • codewiz.org zone: The server(s) responded over TCP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60)
  • codewiz.org zone: The server(s) responded over UDP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60)
  • codewiz.org/A: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN)
  • codewiz.org/AAAA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN)
  • codewiz.org/DNSKEY: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • codewiz.org/MX: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • codewiz.org/NS: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN)
  • codewiz.org/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, TCP_-_EDNS0_4096_D_N)
  • codewiz.org/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_4096_D_KN_0x20)
  • codewiz.org/TXT: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (2.228.72.60, 2001:b02:400:1::60, UDP_-_EDNS0_4096_D_KN)
  • 9p4a2.5xbag.codewiz.org/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • codewiz.org/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • codewiz.org/DNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • codewiz.org/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
  • codewiz.org/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • codewiz.org/NSEC3PARAM has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (3)
  • org to codewiz.org: The following NS name(s) were found in the delegation NS RRset (i.e., in the org zone), but not in the authoritative NS RRset: ns1.codewiz.org See RFC 1034, Sec. 4.2.2.
  • org to codewiz.org: The glue address(es) for ns1.codewiz.org (2.228.72.10) differed from its authoritative address(es) (2.228.72.60). See RFC 1034, Sec. 4.2.2.
  • org to codewiz.org: The glue address(es) for ns1.codewiz.org (2001:b02:400:1::10) differed from its authoritative address(es) (2001:b02:400:1::60). See RFC 1034, Sec. 4.2.2.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

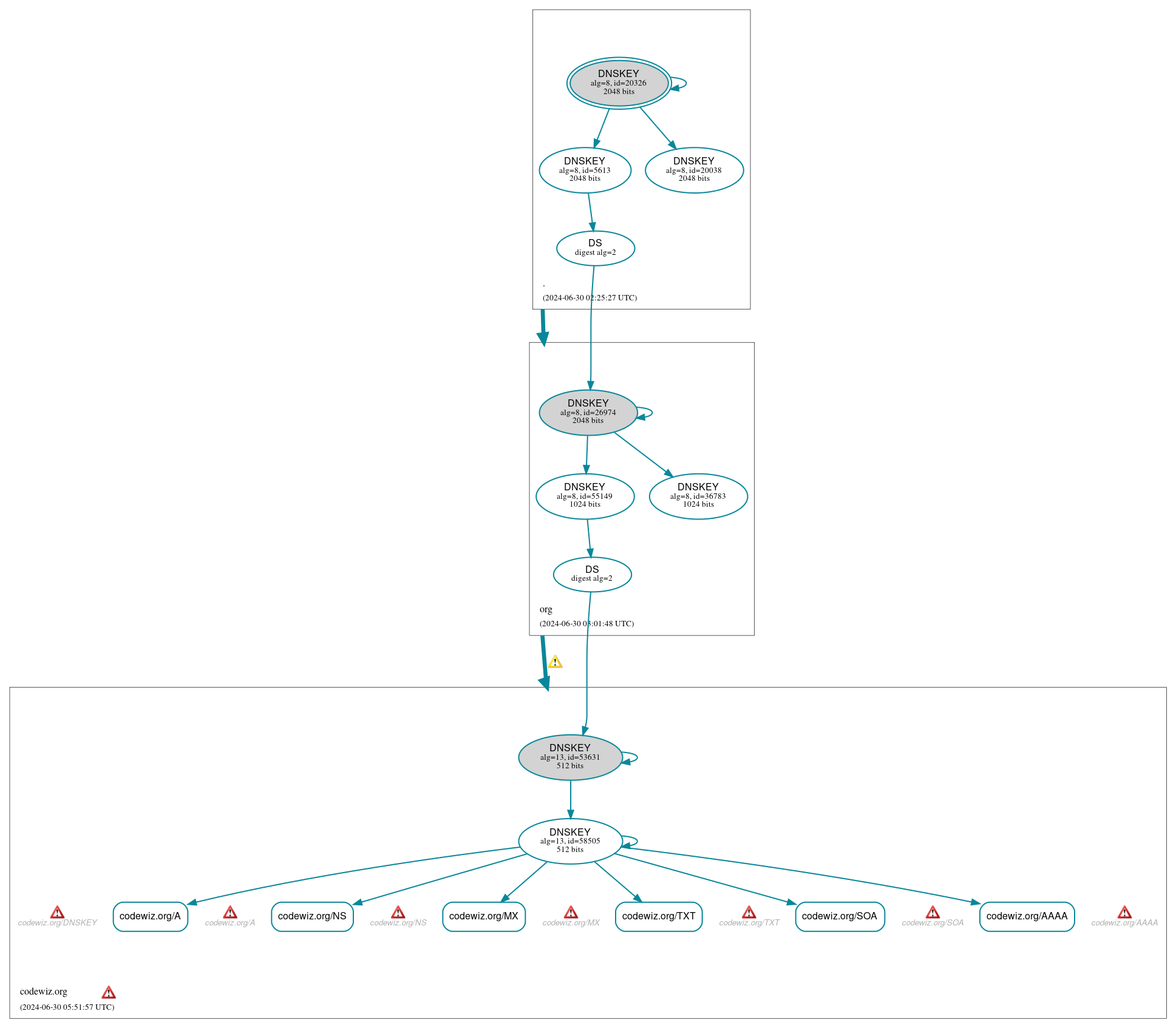

DNSSEC authentication graph
