DNSViz: A DNS visualization tool

cloud

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices

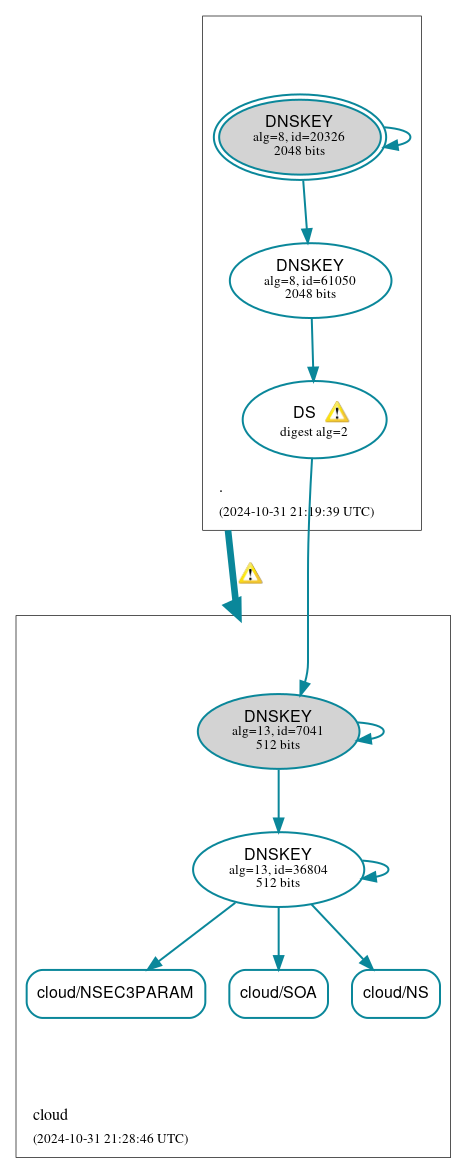

DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • cloud/NS
  • cloud/NSEC3PARAM
  • cloud/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (5)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • cloud/DNSKEY (alg 13, id 36804)
  • cloud/DNSKEY (alg 13, id 7041)
  • cloud/DS (alg 13, id 7041)

Delegation statusDelegation status

Secure (1)
  • . to cloud

NoticesNotices

Warnings (4)
  • . to cloud: Authoritative AAAA records exist for ns01.trs-dns.net, but there are no corresponding AAAA glue records. See RFC 1034, Sec. 4.2.2.
  • cloud/DS (alg 13, id 7041): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)
  • cloud/DS (alg 13, id 7041): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)
  • cloud/DS has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.
DNSSEC authentication graph
