DNSViz: A DNS visualization tool

bosque.gov

Updated: 2025-10-28 14:48:44 UTC (43 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 61809)
  • bosque.gov/DS (alg 13, id 29658)
  • bosque.gov/DS (alg 13, id 9351)
  • gov/DNSKEY (alg 13, id 2536)
  • gov/DNSKEY (alg 13, id 35496)
  • gov/DS (alg 13, id 2536)
Non_existent (2)
  • bosque.gov/DNSKEY (alg 13, id 29658)
  • bosque.gov/DNSKEY (alg 13, id 9351)

Delegation statusDelegation status

Bogus (1)
  • gov to bosque.gov
Secure (1)
  • . to gov

NoticesNotices

Errors (17)
  • bosque.gov zone: The server(s) responded over TCP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206)
  • bosque.gov zone: The server(s) responded over UDP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206)
  • bosque.gov/A: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/AAAA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/CDNSKEY: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/CDS: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/DNSKEY: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • bosque.gov/MX: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • bosque.gov/NS: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/NSEC3PARAM: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • bosque.gov/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, TCP_-_EDNS0_4096_D_N)
  • bosque.gov/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_4096_D_KN_0x20)
  • bosque.gov/TXT: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (199.141.126.202, 199.141.126.206, 2600:12f0:0:ac04::202, 2600:12f0:0:ac04::206, UDP_-_EDNS0_4096_D_KN)
  • gov to bosque.gov: No valid RRSIGs made by a key corresponding to a DS RR were found covering the DNSKEY RRset, resulting in no secure entry point (SEP) into the zone. See RFC 4035, Sec. 2.2, RFC 6840, Sec. 5.11.
  • bosque.gov/DNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • veu3m.bgtf0.bosque.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • bosque.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

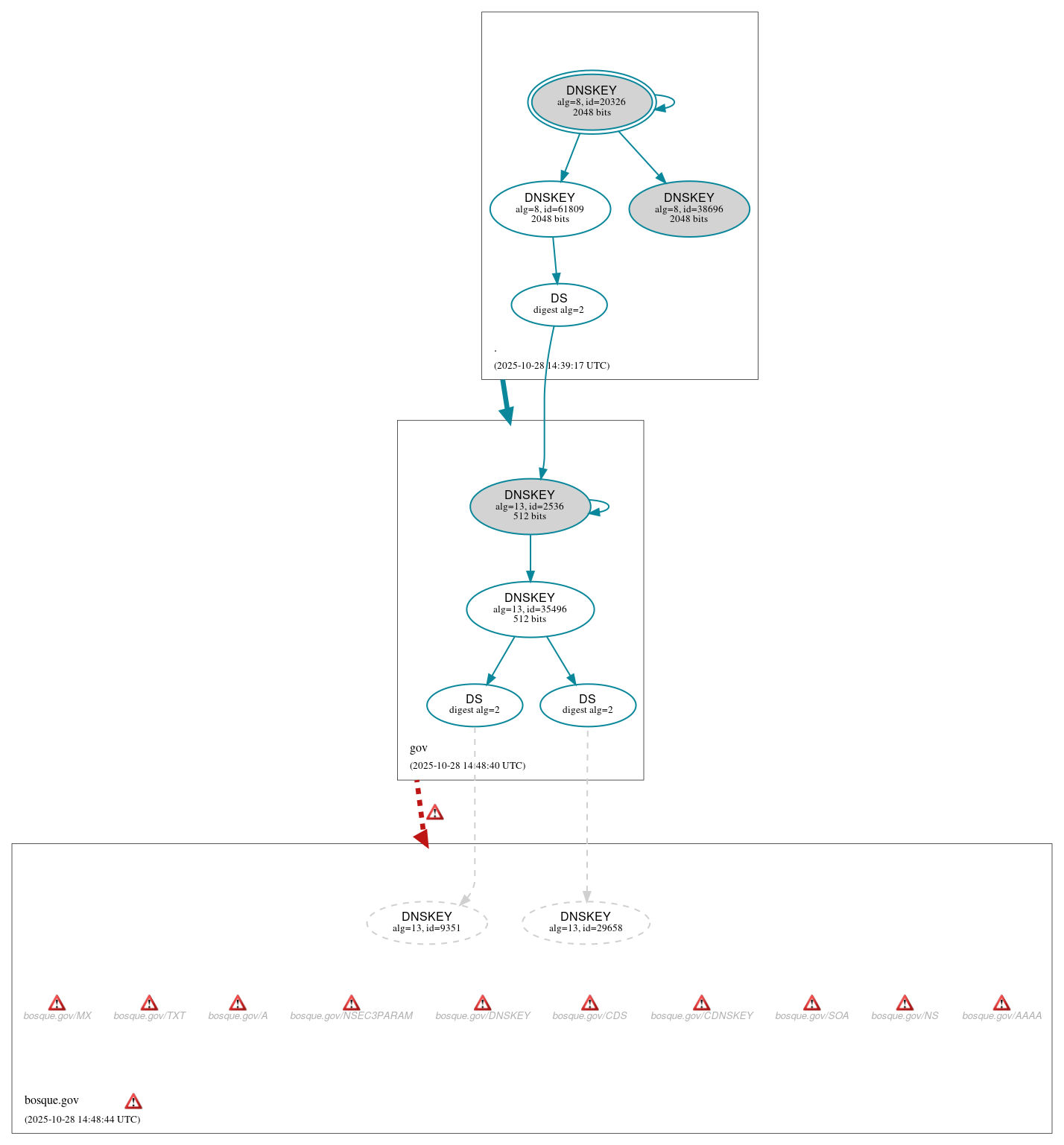

DNSSEC authentication graph
