auditblackbox.com | DNSViz

auditblackbox.com

Updated: 2020-06-10 07:48:49 UTC (2015 days ago) Go to most recent »

DNSSEC options (hide)

|?| RR types:
|?| DNSSEC algorithms:
|?| DS digest algorithms:
|?| Denial of existence:
|?| Redundant edges:
|?| Ignore RFC 8624:
|?| Ignore RFC 9276:
|?| Multi-signer:
|?| Trust anchors:
- Root zone KSK
|?| Additional trusted keys:

Notices

DNSSEC Authentication Chain

RRset status

Insecure (2)

auditblackbox.com/NS
auditblackbox.com/SOA

Secure (2)

com/SOA
com/SOA

DNSKEY/DS/NSEC status

Secure (6)

./DNSKEY (alg 8, id 20326)
./DNSKEY (alg 8, id 48903)
NSEC3 proving non-existence of auditblackbox.com/DS
com/DNSKEY (alg 8, id 30909)
com/DNSKEY (alg 8, id 39844)
com/DS (alg 8, id 30909)

Delegation status

Insecure (1)

com to auditblackbox.com

Secure (1)

. to com

Notices

Warnings (1)

auditblackbox.com/SOA: The case of the query name (auditblackbox.com) was not preserved in the Question section of the response. (40.90.4.1, UDP_-_EDNS0_4096_D_K)

DNSKEY legend

Full legend

	SEP bit set
	Revoke bit set
	Trust anchor

See also

DNSSEC Debugger by Verisign Labs.

Download: png | svg

Warning

JavaScript is required to make the graph below interactive.

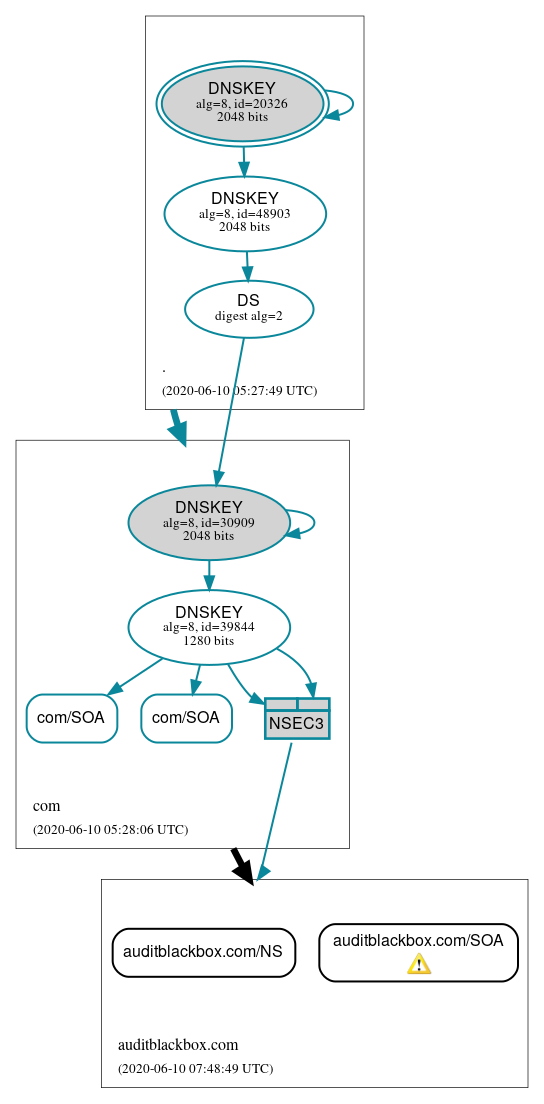

DNSSEC authentication graph
