2020census.gov

Updated: 2025-07-29 18:11:22 UTC (146 days ago) Go to most recent »

DNSSEC options (hide)

|?| RR types:
|?| DNSSEC algorithms:
|?| DS digest algorithms:
|?| Denial of existence:
|?| Redundant edges:
|?| Ignore RFC 8624:
|?| Ignore RFC 9276:
|?| Multi-signer:
|?| Trust anchors:
- Root zone KSK
|?| Additional trusted keys:

Notices

DNSSEC Authentication Chain

RRset status

Secure (3)

2020census.gov/A (NODATA)
2020census.gov/AAAA (NODATA)
gov/SOA

DNSKEY/DS/NSEC status

Secure (9)

./DNSKEY (alg 8, id 20326)
./DNSKEY (alg 8, id 38696)
./DNSKEY (alg 8, id 46441)
./DNSKEY (alg 8, id 53148)
NSEC proving non-existence of 2020census.gov/A
NSEC proving non-existence of 2020census.gov/AAAA
gov/DNSKEY (alg 13, id 2536)
gov/DNSKEY (alg 13, id 35496)
gov/DS (alg 13, id 2536)

Delegation status

Secure (1)

. to gov

Notices

Warnings (2)

gov/DS (alg 13, id 2536): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. See RFC 6891, Sec. 6.2.6. (199.7.83.42, UDP_-_EDNS0_4096_D_KN)
gov/DS (alg 13, id 2536): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. See RFC 6891, Sec. 6.2.6. (199.7.83.42, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend

	SEP bit set
	Revoke bit set
	Trust anchor

See also

DNSSEC Debugger by Verisign Labs.

Download: png | svg

Warning

JavaScript is required to make the graph below interactive.

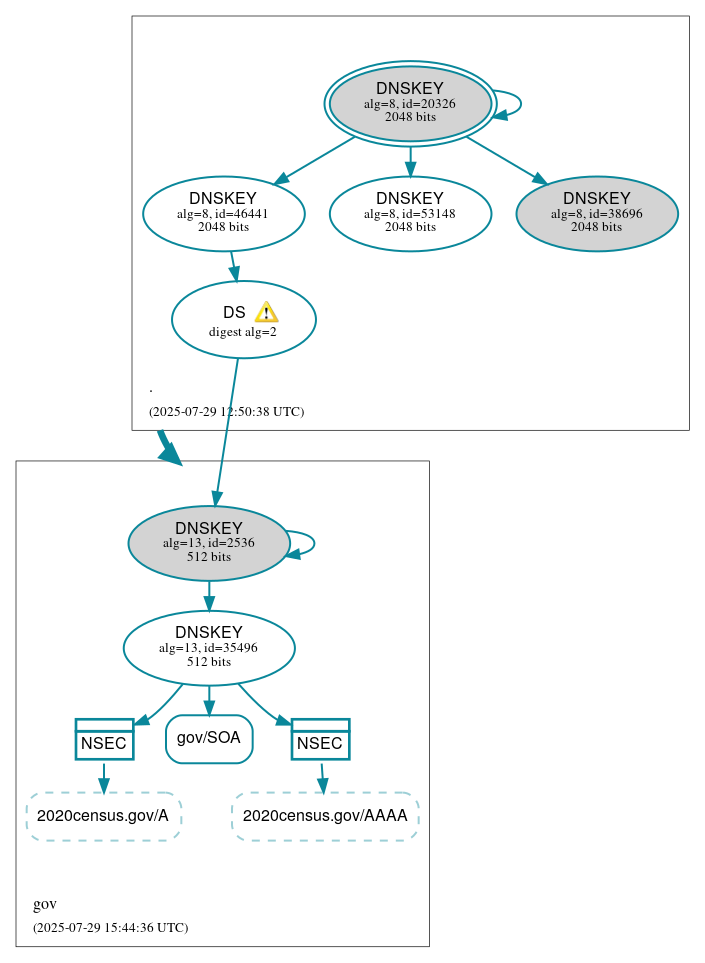

DNSSEC authentication graph
