DNSViz: A DNS visualization tool

1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa

DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/NS
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/NSEC3PARAM
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (21)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 46441)
  • ./DNSKEY (alg 8, id 53148)
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/DNSKEY (alg 13, id 1273)
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/DNSKEY (alg 13, id 4320)
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/DS (alg 13, id 1273)
  • 1.4.1.0.0.2.ip6.arpa/DNSKEY (alg 13, id 30636)
  • 1.4.1.0.0.2.ip6.arpa/DS (alg 13, id 30636)
  • 8.b.1.4.1.0.0.2.ip6.arpa/DNSKEY (alg 13, id 12711)
  • 8.b.1.4.1.0.0.2.ip6.arpa/DNSKEY (alg 13, id 45862)
  • 8.b.1.4.1.0.0.2.ip6.arpa/DS (alg 13, id 12711)
  • arpa/DNSKEY (alg 8, id 42581)
  • arpa/DNSKEY (alg 8, id 43915)
  • arpa/DS (alg 8, id 42581)
  • ip6.arpa/DNSKEY (alg 8, id 21619)
  • ip6.arpa/DNSKEY (alg 8, id 53538)
  • ip6.arpa/DNSKEY (alg 8, id 64060)
  • ip6.arpa/DS (alg 8, id 13880)
  • ip6.arpa/DS (alg 8, id 45094)
  • ip6.arpa/DS (alg 8, id 64060)
Non_existent (2)
  • ip6.arpa/DNSKEY (alg 8, id 13880)
  • ip6.arpa/DNSKEY (alg 8, id 45094)

Delegation statusDelegation status

Secure (5)
  • . to arpa
  • 1.4.1.0.0.2.ip6.arpa to 8.b.1.4.1.0.0.2.ip6.arpa
  • 8.b.1.4.1.0.0.2.ip6.arpa to 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa
  • arpa to ip6.arpa
  • ip6.arpa to 1.4.1.0.0.2.ip6.arpa

NoticesNotices

Warnings (6)
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/TXT has warnings; select the "Denial of existence" DNSSEC option to see them.
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/MX has warnings; select the "Denial of existence" DNSSEC option to see them.
  • 1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • fckyb.lg9at.1.4.0.0.8.b.1.4.1.0.0.2.ip6.arpa/A has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

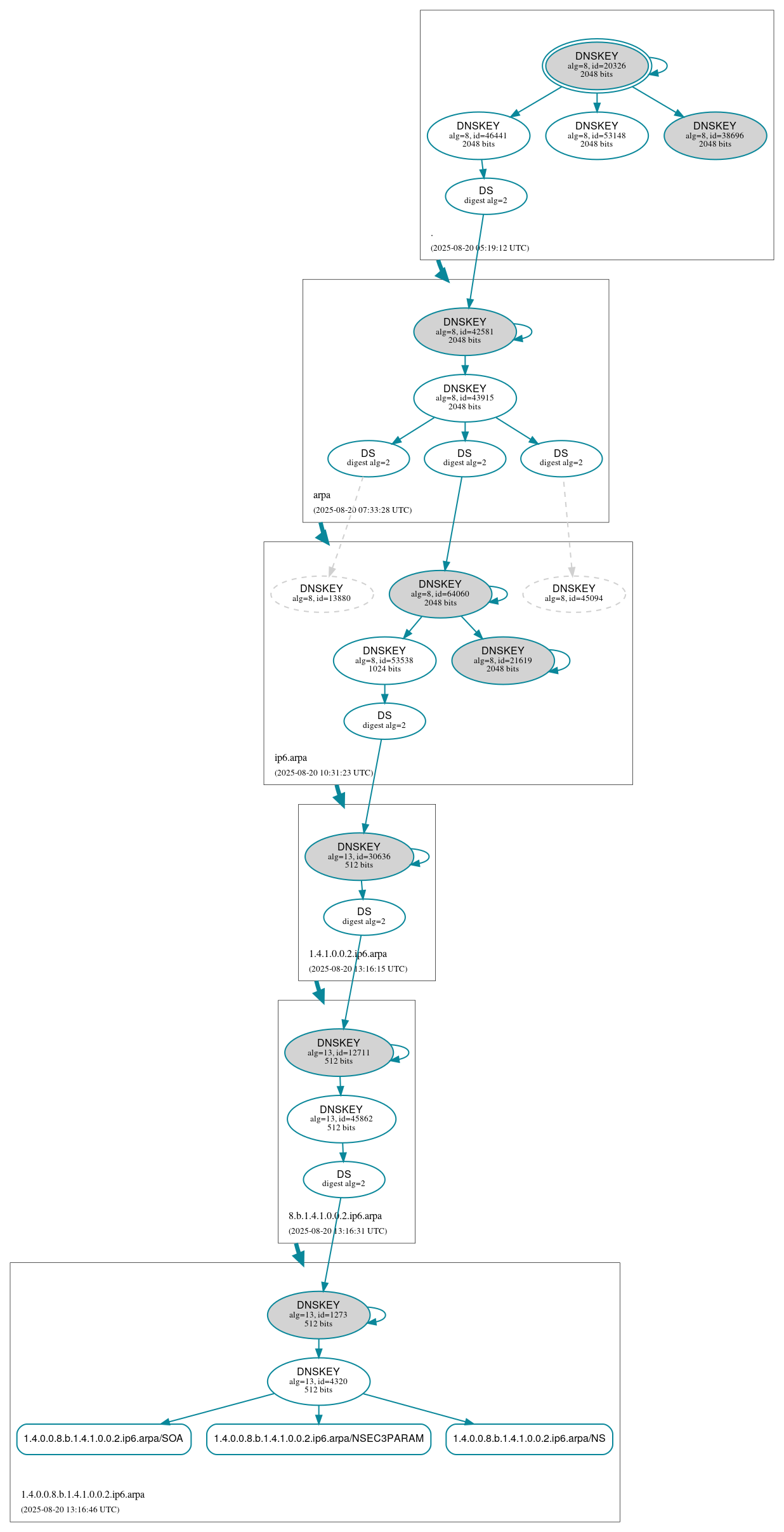

DNSSEC authentication graph
