DNSViz: A DNS visualization tool

مصر

Updated: 2024-01-17 11:53:27 UTC (47 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • مصر/NS
  • مصر/NSEC3PARAM
  • مصر/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • مصر/DNSKEY (alg 13, id 20968)
  • مصر/DNSKEY (alg 13, id 65350)
  • مصر/DS (alg 13, id 65350)
  • مصر/DS (alg 13, id 65350)

Delegation statusDelegation status

Secure (1)
  • . to مصر

NoticesNotices

Errors (7)
  • مصر zone: The server(s) responded over TCP with a malformed response or with an invalid RCODE. (204.61.216.106, 2001:500:14:6106:ad::1)
  • مصر zone: The server(s) responded over UDP with a malformed response or with an invalid RCODE. (204.61.216.106, 2001:500:14:6106:ad::1)
  • مصر/DNSKEY: The response had an invalid RCODE (SERVFAIL). (204.61.216.106, 2001:500:14:6106:ad::1, UDP_-_EDNS0_512_D_KN, UDP_-_NOEDNS_)
  • مصر/NS: The response had an invalid RCODE (SERVFAIL). (204.61.216.106, 2001:500:14:6106:ad::1, UDP_-_NOEDNS_)
  • مصر/NSEC3PARAM: The response had an invalid RCODE (SERVFAIL). (204.61.216.106, 2001:500:14:6106:ad::1, UDP_-_NOEDNS_)
  • مصر/SOA: The response had an invalid RCODE (SERVFAIL). (204.61.216.106, 2001:500:14:6106:ad::1, TCP_-_NOEDNS_)
  • مصر/SOA: The response had an invalid RCODE (SERVFAIL). (204.61.216.106, 2001:500:14:6106:ad::1, UDP_-_NOEDNS_, UDP_-_NOEDNS__0x20)
Warnings (5)
  • . to مصر: Authoritative AAAA records exist for ns4.dotmasr.eg, but there are no corresponding AAAA glue records.
  • مصر/DS (alg 13, id 65350): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • مصر/DS (alg 13, id 65350): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • مصر/DS (alg 13, id 65350): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • مصر/DS (alg 13, id 65350): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

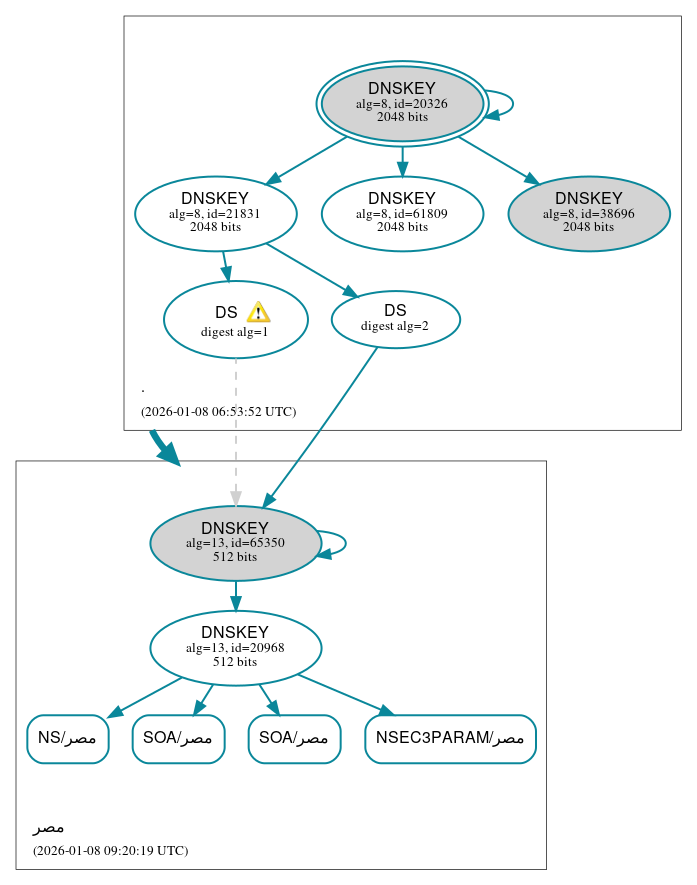

DNSSEC authentication graph
