DNSViz: A DNS visualization tool

www.unibrokers.com.ec

Updated: 2024-10-03 15:15:30 UTC (6 months ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (2)
  • hosting.unibrokers.com.ec/CNAME
  • www.unibrokers.com.ec/CNAME
Secure (1)
  • com.ec/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20038)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • NSEC3 proving non-existence of unibrokers.com.ec/DS
  • com.ec/DNSKEY (alg 13, id 23655)
  • com.ec/DNSKEY (alg 13, id 29463)
  • com.ec/DNSKEY (alg 13, id 38558)
  • com.ec/DS (alg 13, id 29463)
  • ec/DNSKEY (alg 13, id 35138)
  • ec/DNSKEY (alg 13, id 41260)
  • ec/DNSKEY (alg 13, id 63463)
  • ec/DS (alg 13, id 35138)

Delegation statusDelegation status

Insecure (1)
  • com.ec to unibrokers.com.ec
Secure (2)
  • . to ec
  • ec to com.ec

NoticesNotices

Errors (6)
  • NSEC3 proving non-existence of unibrokers.com.ec/DS: An iterations count of 0 must be used in NSEC3 records to alleviate computational burdens. See RFC 9276, Sec. 3.1.
  • NSEC3 proving non-existence of unibrokers.com.ec/DS: An iterations count of 0 must be used in NSEC3 records to alleviate computational burdens. See RFC 9276, Sec. 3.1.
  • com.ec zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (2801:0:60::1)
  • ec zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (2801:0:60::1)
  • hosting.unibrokers.com.ec/CNAME: This record results in a CNAME loop. See RFC 1034, Sec. 3.6.2.
  • www.unibrokers.com.ec/CNAME: This record results in a CNAME loop. See RFC 1034, Sec. 3.6.2.
Warnings (2)
  • NSEC3 proving non-existence of unibrokers.com.ec/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.
  • NSEC3 proving non-existence of unibrokers.com.ec/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

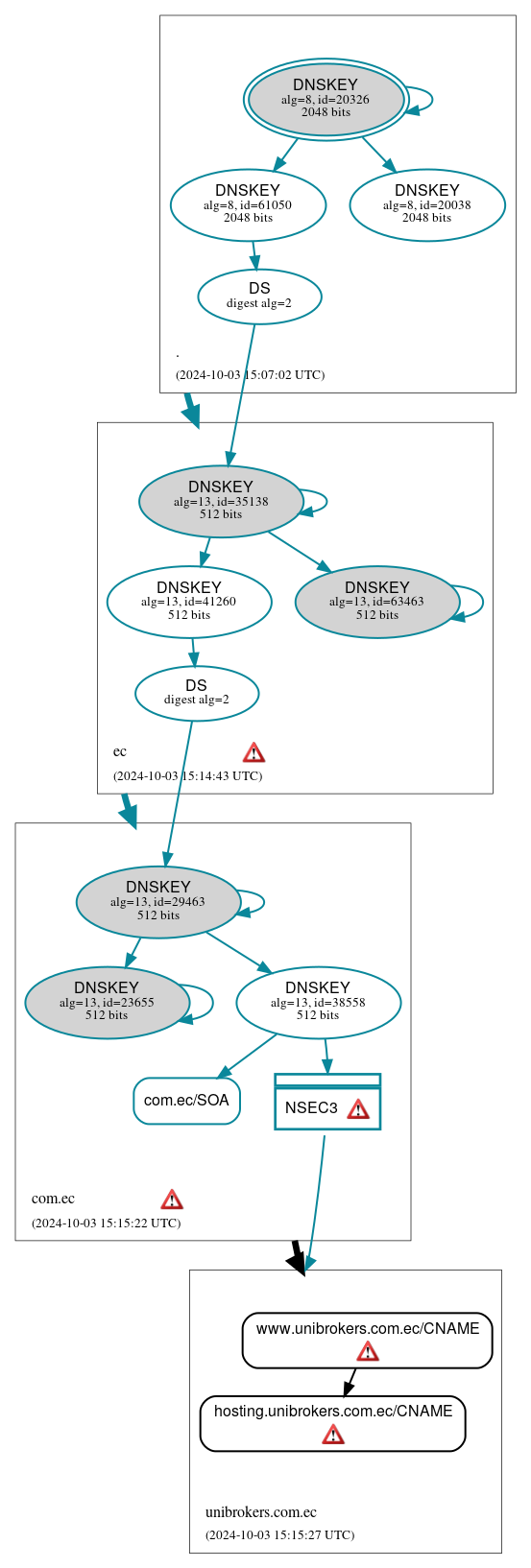

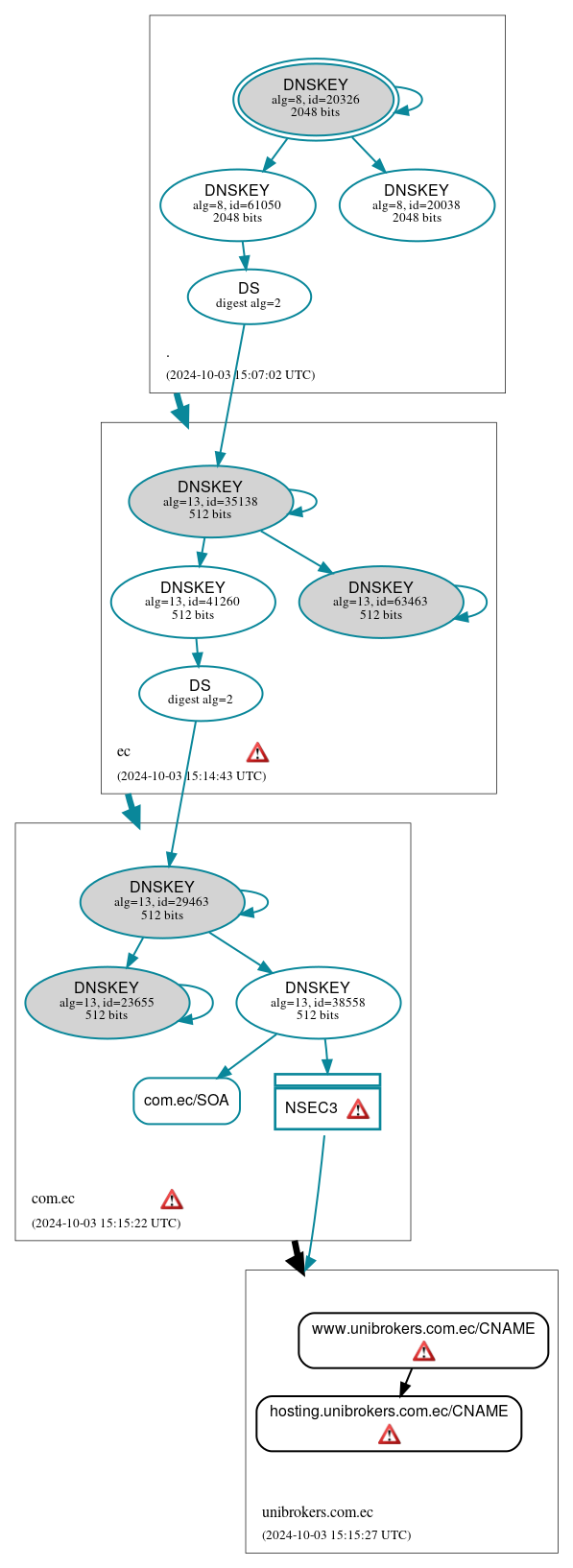

DNSSEC authentication graph
