DNSViz: A DNS visualization tool

wisc.edu

Updated: 2024-03-26 13:09:43 UTC (78 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • wisc.edu/A
  • wisc.edu/MX
  • wisc.edu/NS
  • wisc.edu/SOA
  • wisc.edu/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • ./DNSKEY (alg 8, id 5613)
  • edu/DNSKEY (alg 13, id 30678)
  • edu/DNSKEY (alg 13, id 35663)
  • edu/DS (alg 13, id 35663)
  • wisc.edu/DNSKEY (alg 8, id 21438)
  • wisc.edu/DNSKEY (alg 8, id 23386)
  • wisc.edu/DNSKEY (alg 8, id 34080)
  • wisc.edu/DNSKEY (alg 8, id 34500)
  • wisc.edu/DNSKEY (alg 8, id 55315)
  • wisc.edu/DS (alg 8, id 55315)

Delegation statusDelegation status

Secure (2)
  • . to edu
  • edu to wisc.edu

NoticesNotices

Warnings (3)
  • edu to wisc.edu: The glue address(es) for adns1.doit.wisc.edu (2607:f388::a53:1) differed from its authoritative address(es) (2607:f388::a53:1, 2607:f388:2:2001::100a). See RFC 1034, Sec. 4.2.2.
  • edu to wisc.edu: The glue address(es) for adns2.doit.wisc.edu (2607:f388::a53:2) differed from its authoritative address(es) (2607:f388::a53:2, 2607:f388:d:2::1006). See RFC 1034, Sec. 4.2.2.
  • edu to wisc.edu: The glue address(es) for adns3.doit.wisc.edu (2607:f388::a53:3) differed from its authoritative address(es) (2607:f388::a53:3, 2607:f388:2:2001::100b). See RFC 1034, Sec. 4.2.2.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

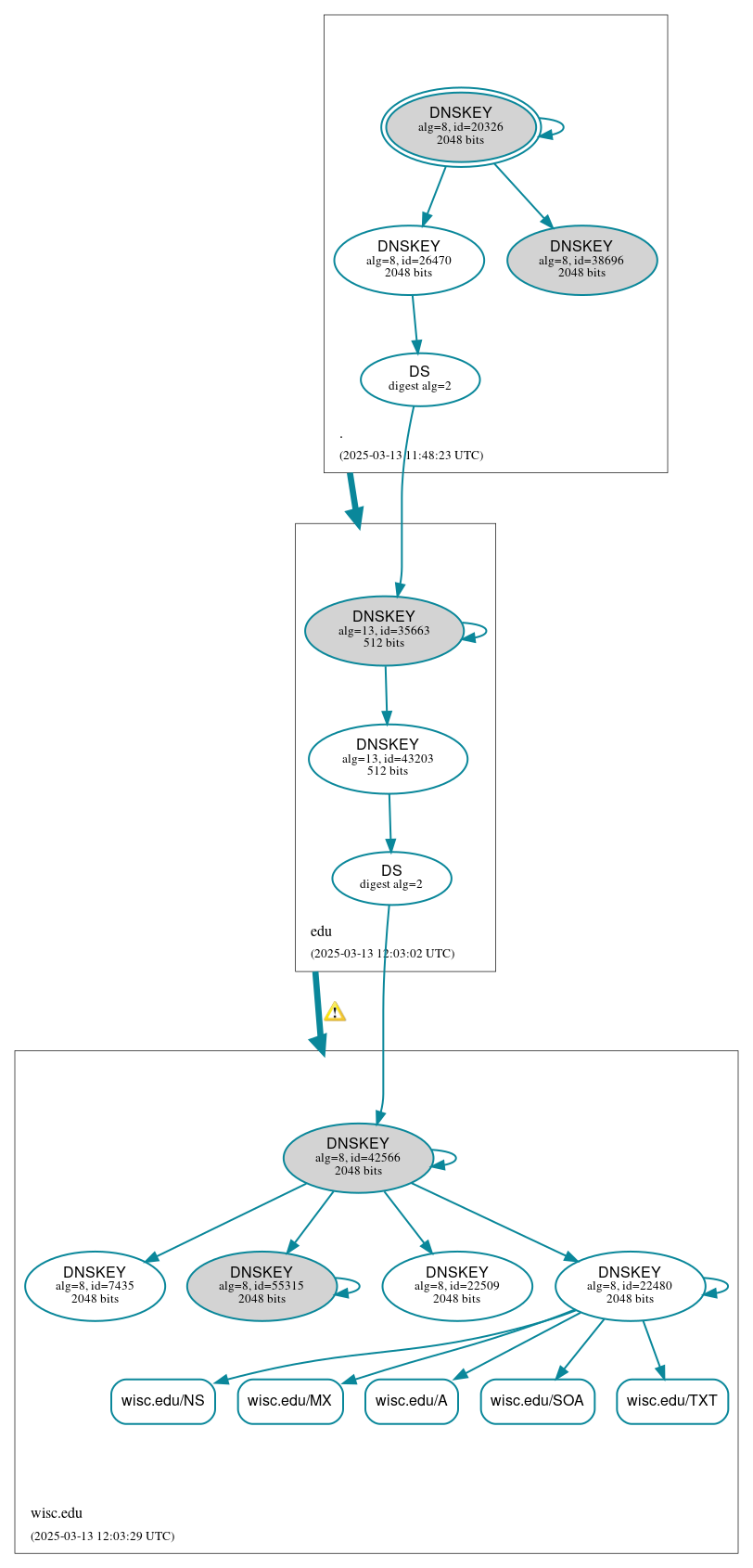

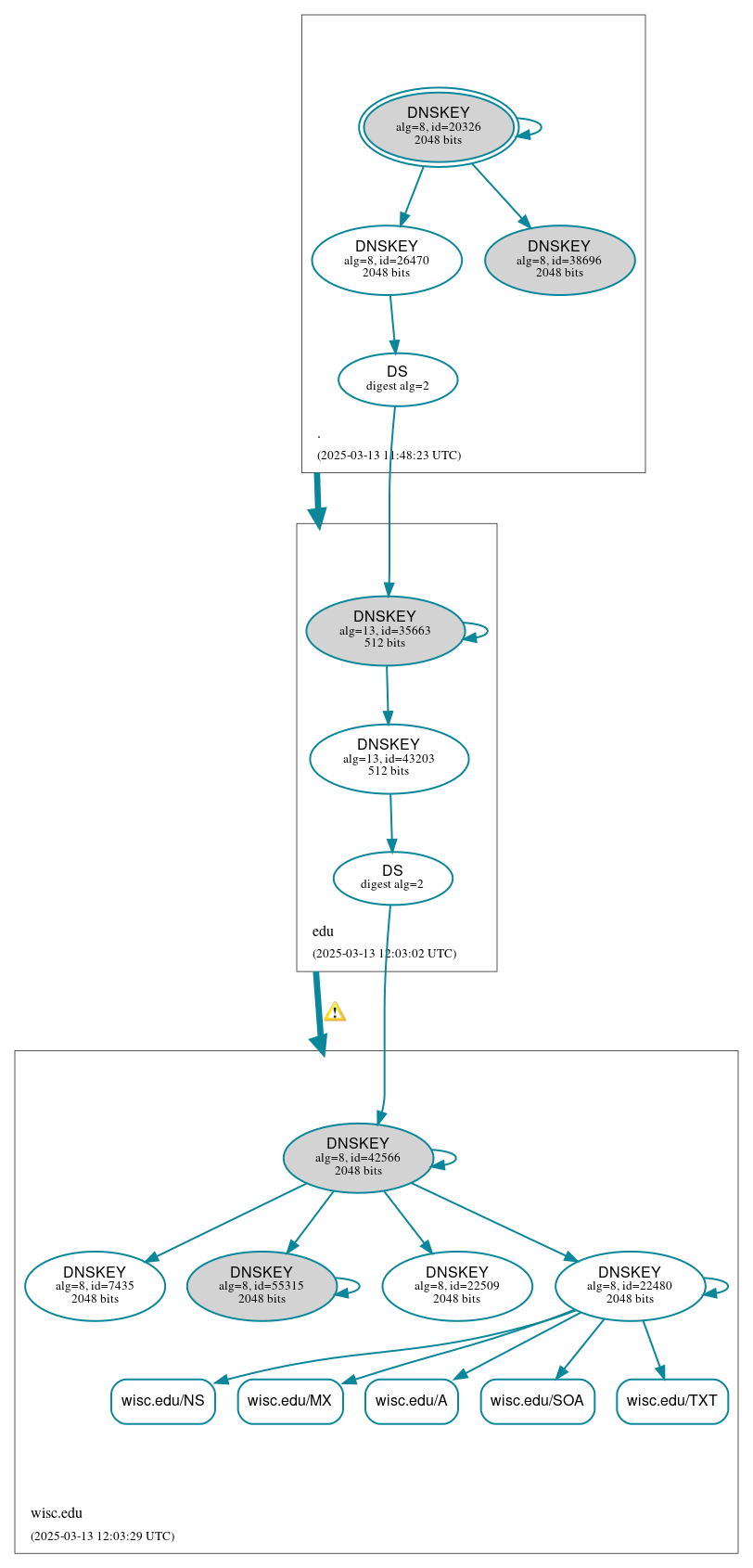

DNSSEC authentication graph
