DNSViz: A DNS visualization tool

wcu.edu

Updated: 2023-04-25 12:05:45 UTC (575 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • wcu.edu/A
  • wcu.edu/MX
  • wcu.edu/NS
  • wcu.edu/SOA
  • wcu.edu/TXT
Secure (2)
  • edu/SOA
  • edu/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 60955)
  • NSEC3 proving non-existence of wcu.edu/DS
  • edu/DNSKEY (alg 8, id 28065)
  • edu/DNSKEY (alg 8, id 30503)
  • edu/DS (alg 8, id 28065)

Delegation statusDelegation status

Insecure (1)
  • edu to wcu.edu
Secure (1)
  • . to edu

NoticesNotices

Errors (4)
  • wcu.edu zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (152.4.20.3)
  • wcu.edu zone: There was an error resolving the following NS name(s) to address(es): ns.ga.unc.edu
  • wcu.edu/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (152.4.20.3, UDP_-_NOEDNS_)
  • wcu.edu/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (152.4.20.3, UDP_-_NOEDNS_)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

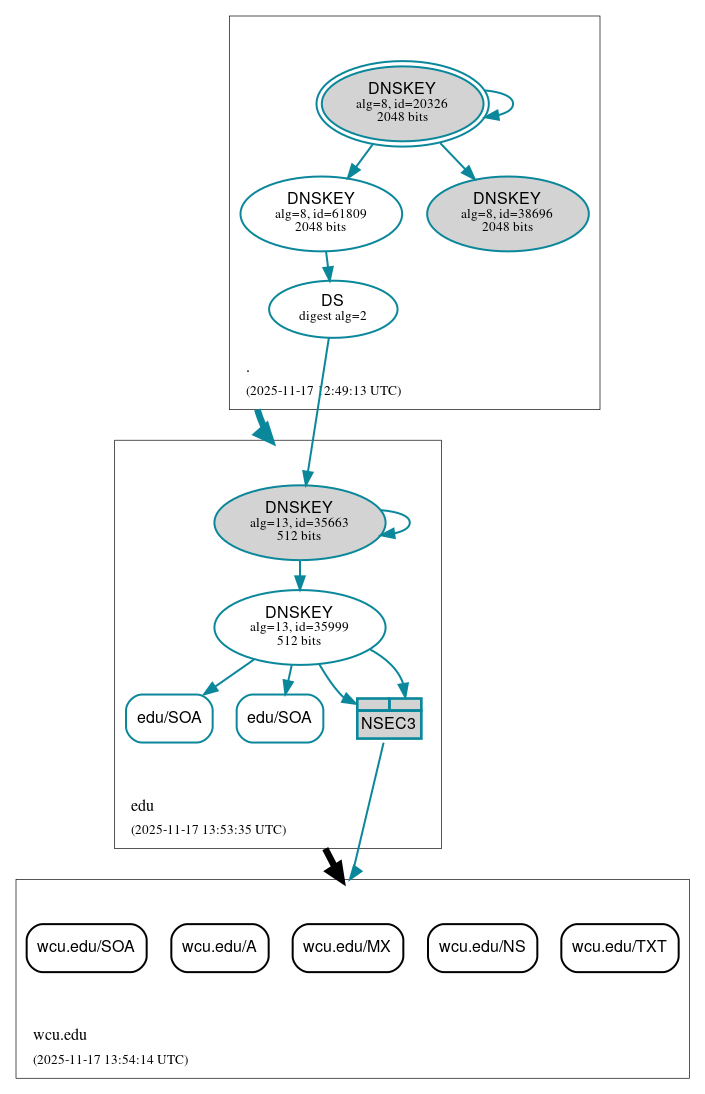

DNSSEC authentication graph
