DNSViz: A DNS visualization tool

uva.nl

Updated: 2024-03-06 09:49:55 UTC (260 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • uva.nl/A
  • uva.nl/MX
  • uva.nl/NS
  • uva.nl/NSEC3PARAM
  • uva.nl/SOA
  • uva.nl/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • nl/DNSKEY (alg 13, id 15365)
  • nl/DNSKEY (alg 13, id 17153)
  • nl/DS (alg 13, id 17153)
  • uva.nl/DNSKEY (alg 8, id 18738)
  • uva.nl/DNSKEY (alg 8, id 36184)
  • uva.nl/DNSKEY (alg 8, id 37170)
  • uva.nl/DNSKEY (alg 8, id 64654)
  • uva.nl/DS (alg 8, id 36184)
  • uva.nl/DS (alg 8, id 64654)

Delegation statusDelegation status

Secure (2)
  • . to nl
  • nl to uva.nl

NoticesNotices

Errors (3)
  • uva.nl/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • uva.nl/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • k5ujpmwyq4.uva.nl/A has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (3)
  • uva.nl/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • uva.nl/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • k5ujpmwyq4.uva.nl/A has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

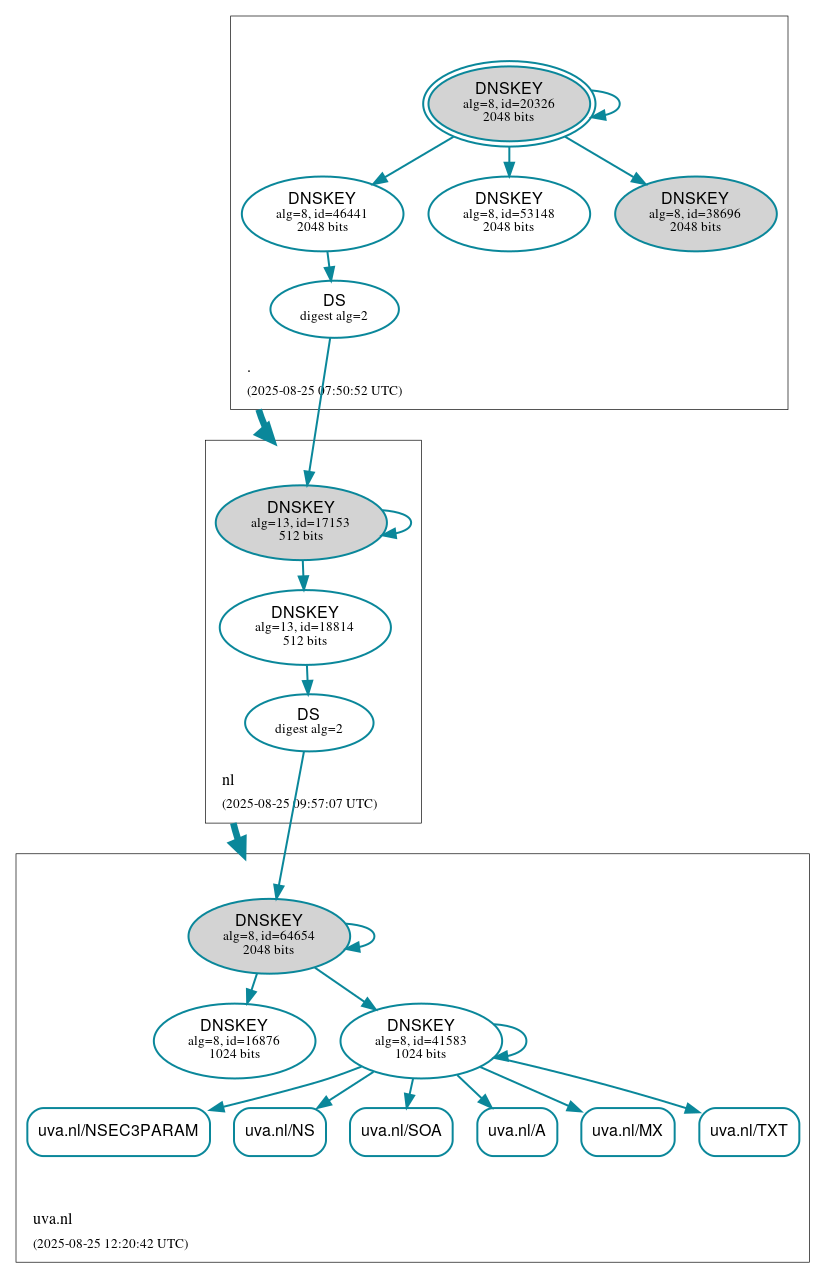

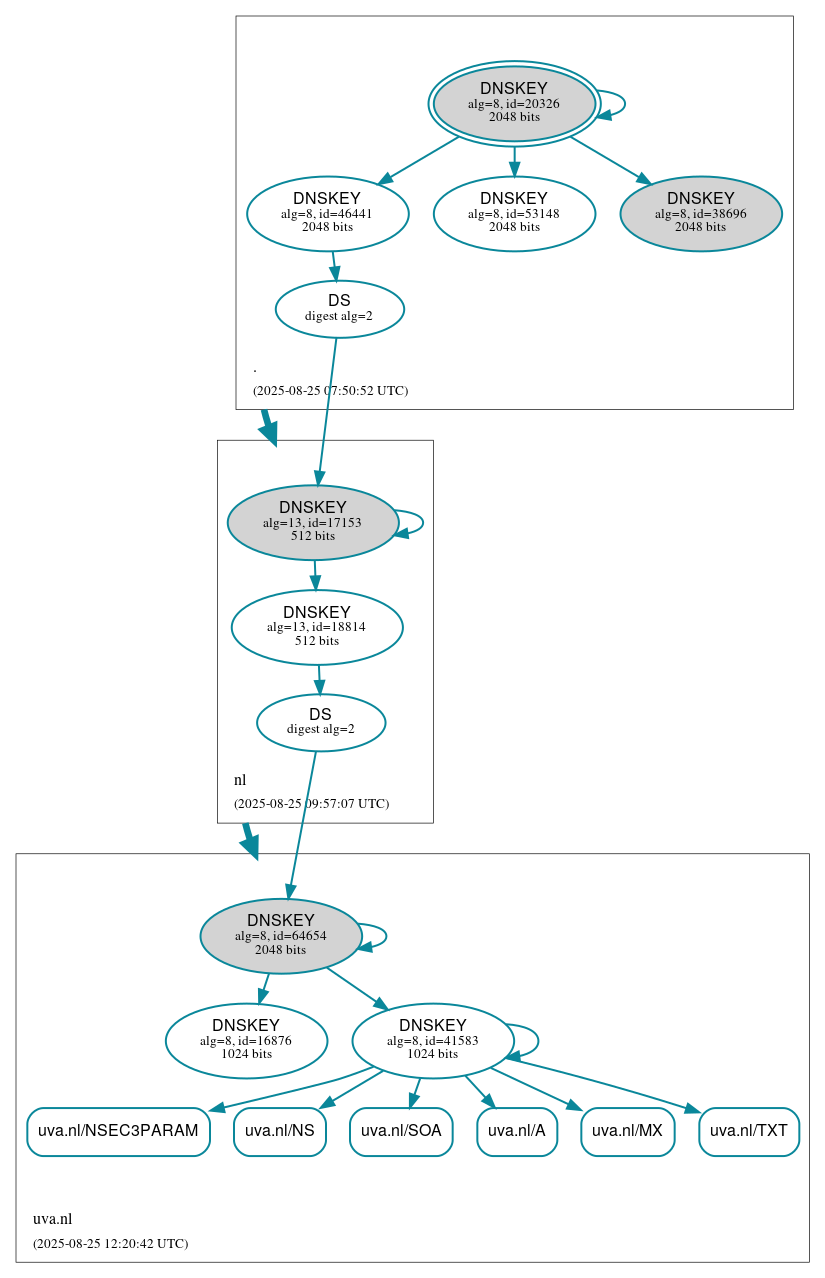

DNSSEC authentication graph
