DNSViz: A DNS visualization tool

upu.int

Updated: 2025-06-18 20:30:09 UTC (22 hours, 25 minutes ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • upu.int/A
  • upu.int/MX
  • upu.int/NS
  • upu.int/SOA
  • upu.int/TXT
Secure (1)
  • int/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 53148)
  • NSEC3 proving non-existence of upu.int/DS
  • int/DNSKEY (alg 13, id 45824)
  • int/DNSKEY (alg 13, id 58372)
  • int/DNSKEY (alg 13, id 59895)
  • int/DS (alg 13, id 59895)

Delegation statusDelegation status

Insecure (1)
  • int to upu.int
Secure (1)
  • . to int

NoticesNotices

Errors (7)
  • ./DNSKEY: The response had an invalid RCODE (SERVFAIL). See RFC 1035, Sec. 4.1.1. (2001:500:a8::e, UDP_-_EDNS0_512_D_KN)
  • int/DS (alg 13, id 59895): DNSSEC was effectively downgraded because the response had an invalid RCODE (SERVFAIL) with EDNS enabled. See RFC 6891, Sec. 7, RFC 2671, Sec. 5.3. (2001:500:a8::e, UDP_-_NOEDNS_)
  • int/DS (alg 13, id 59895): DNSSEC was effectively downgraded because the response had an invalid RCODE (SERVFAIL) with EDNS enabled. See RFC 6891, Sec. 7, RFC 2671, Sec. 5.3. (2001:500:a8::e, UDP_-_NOEDNS_)
  • int/DS (alg 13, id 59895): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • int/DS (alg 13, id 59895): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • int/DS (alg 13, id 59895): The response had an invalid RCODE (SERVFAIL) until EDNS was disabled (however, this server appeared to respond legitimately to other queries with EDNS enabled). See RFC 6891, Sec. 6.2.6. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • int/DS (alg 13, id 59895): The response had an invalid RCODE (SERVFAIL) until EDNS was disabled (however, this server appeared to respond legitimately to other queries with EDNS enabled). See RFC 6891, Sec. 6.2.6. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

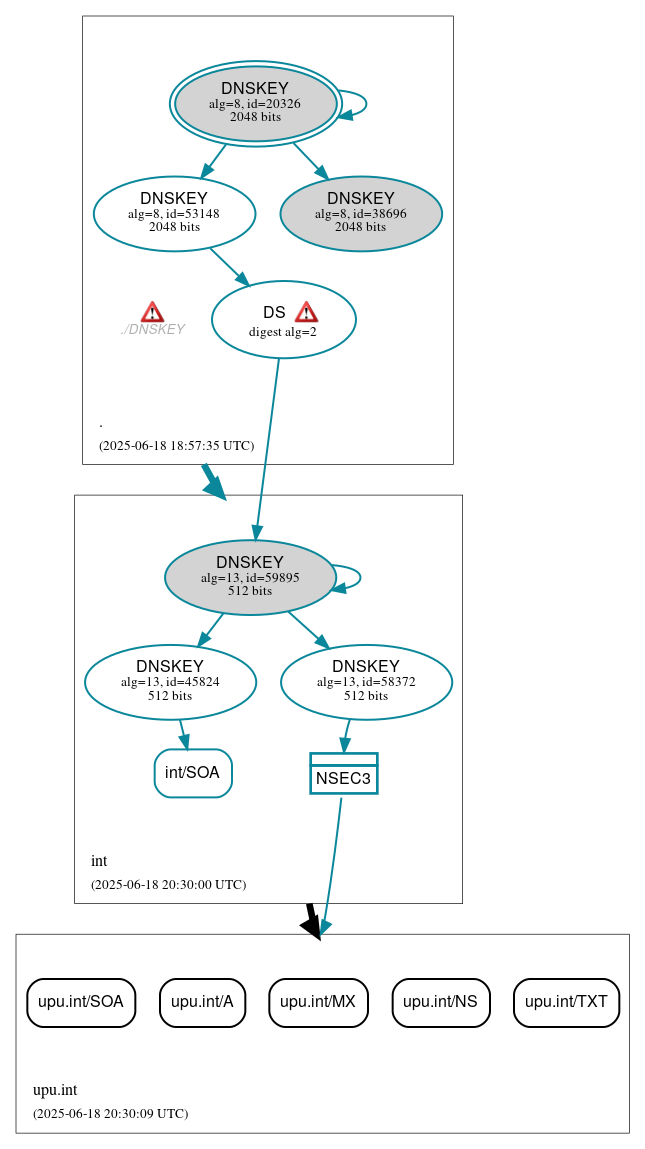

DNSSEC authentication graph
