DNSViz: A DNS visualization tool

uni-stuttgart.de

Updated: 2023-11-15 10:53:36 UTC (156 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (7)
  • uni-stuttgart.de/A
  • uni-stuttgart.de/AAAA
  • uni-stuttgart.de/MX
  • uni-stuttgart.de/NS
  • uni-stuttgart.de/NSEC3PARAM
  • uni-stuttgart.de/SOA
  • uni-stuttgart.de/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (9)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 46780)
  • de/DNSKEY (alg 8, id 10209)
  • de/DNSKEY (alg 8, id 26755)
  • de/DNSKEY (alg 8, id 53901)
  • de/DS (alg 8, id 26755)
  • uni-stuttgart.de/DNSKEY (alg 10, id 44133)
  • uni-stuttgart.de/DNSKEY (alg 10, id 48424)
  • uni-stuttgart.de/DS (alg 10, id 48424)

Delegation statusDelegation status

Secure (2)
  • . to de
  • de to uni-stuttgart.de

NoticesNotices

Warnings (11)
  • RRSIG uni-stuttgart.de/A alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/AAAA alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/DNSKEY alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/DNSKEY alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/DNSKEY alg 10, id 48424: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/DNSKEY alg 10, id 48424: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/MX alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/NS alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/NSEC3PARAM alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/SOA alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).
  • RRSIG uni-stuttgart.de/TXT alg 10, id 44133: DNSSEC specification recommends not signing with DNSSEC algorithm 10 (RSASHA512).

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

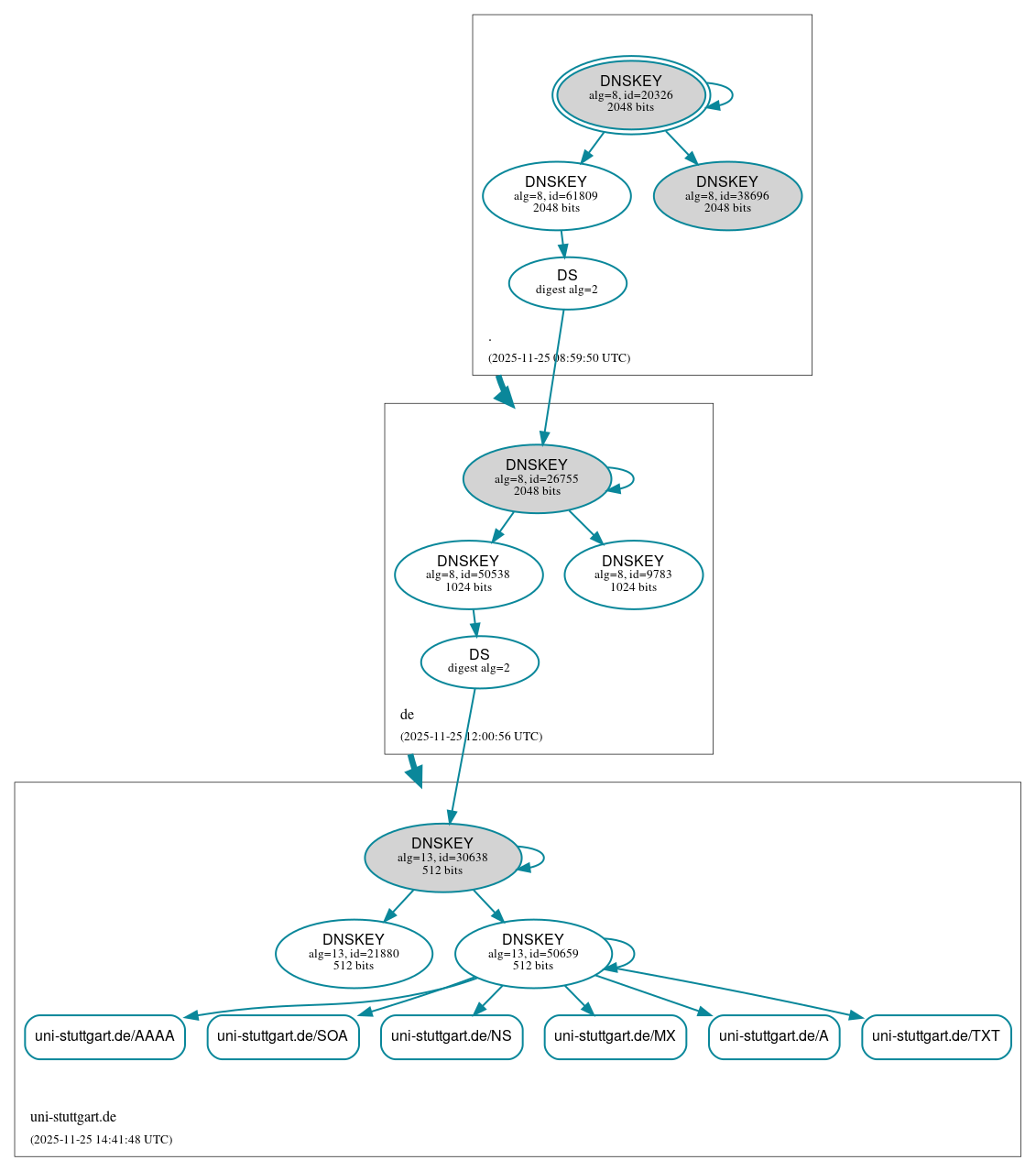

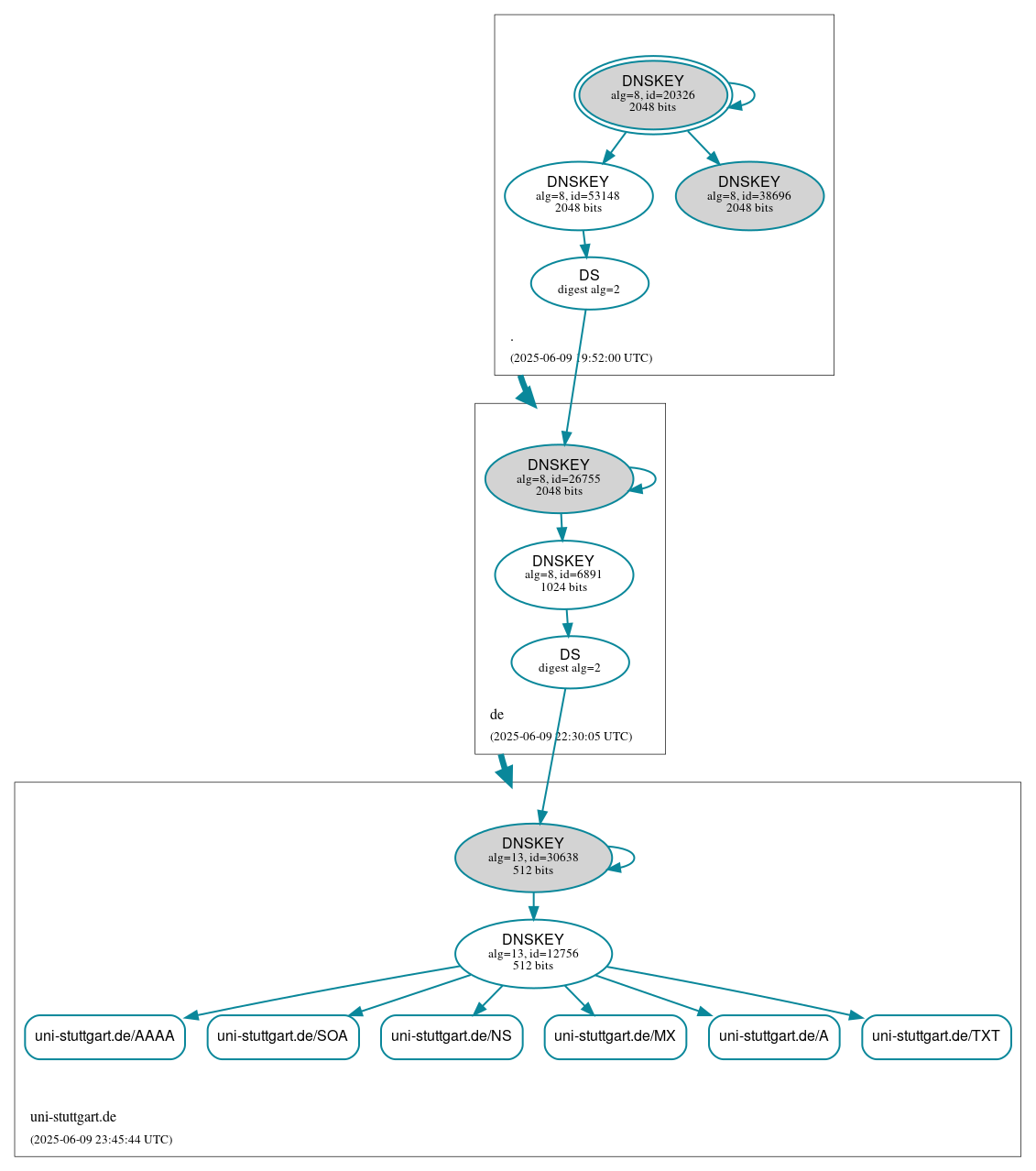

DNSSEC authentication graph
