DNSViz: A DNS visualization tool

uci.edu

Updated: 2024-11-13 10:21:40 UTC (43 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • uci.edu/A
  • uci.edu/MX
  • uci.edu/NS
  • uci.edu/SOA
  • uci.edu/TXT
Secure (2)
  • edu/SOA
  • edu/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • NSEC3 proving non-existence of uci.edu/DS
  • edu/DNSKEY (alg 13, id 26800)
  • edu/DNSKEY (alg 13, id 35663)
  • edu/DS (alg 13, id 35663)

Delegation statusDelegation status

Insecure (1)
  • edu to uci.edu
Secure (1)
  • . to edu

NoticesNotices

Errors (6)
  • edu/DS (alg 13, id 35663): DNSSEC was effectively downgraded because no response was received from the server over UDP (tried 10 times) with the DO bit set. See RFC 4035, Sec. 3.2.1. (192.33.4.12, UDP_-_EDNS0_4096_)
  • edu/DS (alg 13, id 35663): DNSSEC was effectively downgraded because no response was received from the server over UDP (tried 10 times) with the DO bit set. See RFC 4035, Sec. 3.2.1. (192.33.4.12, UDP_-_EDNS0_4096_)
  • edu/DS (alg 13, id 35663): No response was received from the server over UDP (tried 10 times) until the DO EDNS flag was cleared (however, this server appeared to respond legitimately to other queries with the DO EDNS flag set). See RFC 6891, Sec. 6.1.4. (192.33.4.12, UDP_-_EDNS0_4096_D_KN)
  • edu/DS (alg 13, id 35663): No response was received from the server over UDP (tried 10 times) until the DO EDNS flag was cleared (however, this server appeared to respond legitimately to other queries with the DO EDNS flag set). See RFC 6891, Sec. 6.1.4. (192.33.4.12, UDP_-_EDNS0_4096_D_KN)
  • edu/DS (alg 13, id 35663): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (192.33.4.12, UDP_-_EDNS0_4096_D_KN)
  • edu/DS (alg 13, id 35663): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (192.33.4.12, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

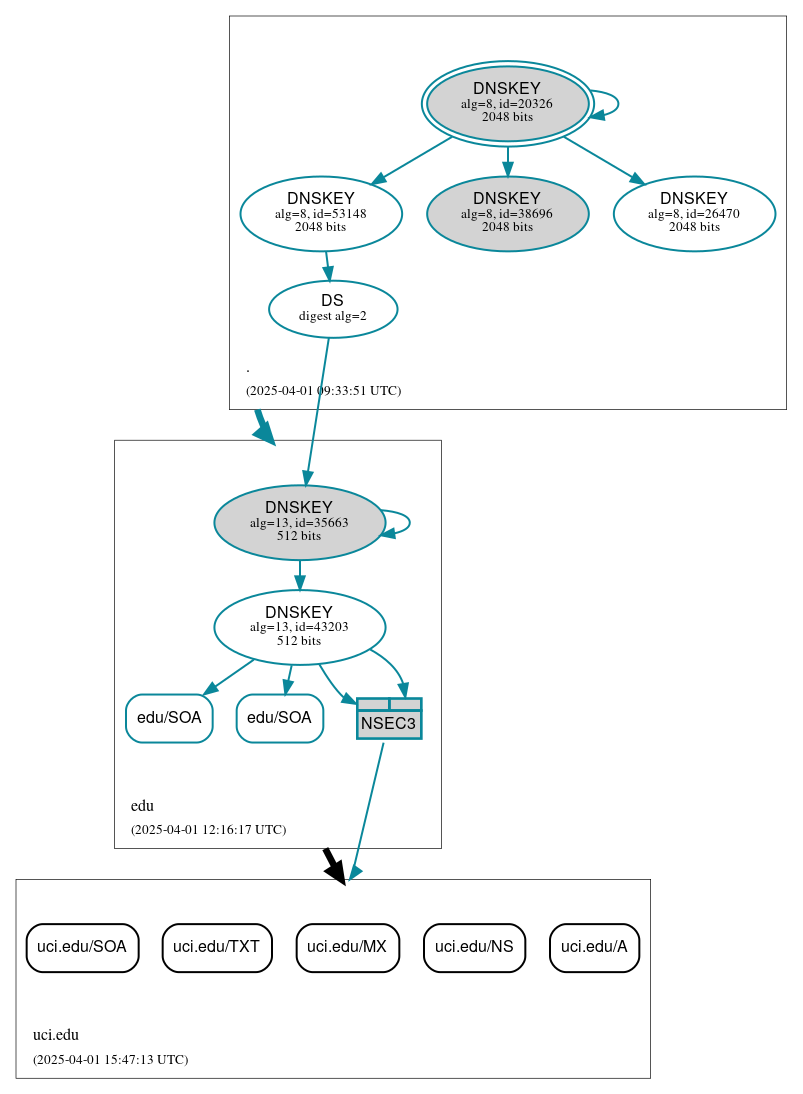

DNSSEC authentication graph
