DNSViz: A DNS visualization tool

tudelft.nl

Updated: 2025-03-13 20:05:47 UTC (19 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26470)
  • ./DNSKEY (alg 8, id 38696)
  • nl/DNSKEY (alg 13, id 17153)
  • nl/DNSKEY (alg 13, id 48480)
  • nl/DS (alg 13, id 17153)
  • tudelft.nl/DS (alg 8, id 8200)
Non_existent (1)
  • tudelft.nl/DNSKEY (alg 8, id 8200)

Delegation statusDelegation status

Bogus (1)
  • nl to tudelft.nl
Secure (1)
  • . to nl

NoticesNotices

Errors (5)
  • nl to tudelft.nl: No valid RRSIGs made by a key corresponding to a DS RR were found covering the DNSKEY RRset, resulting in no secure entry point (SEP) into the zone. See RFC 4035, Sec. 2.2, RFC 6840, Sec. 5.11.
  • tudelft.nl zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (130.161.180.1, 130.161.180.65)
  • tudelft.nl zone: There was an error resolving the following NS name(s) to address(es): ns1.tudelft.nl, ns2.tudelft.nl
  • tudelft.nl/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (130.161.180.1, 130.161.180.65, UDP_-_NOEDNS_)
  • tudelft.nl/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (130.161.180.1, 130.161.180.65, UDP_-_NOEDNS_)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

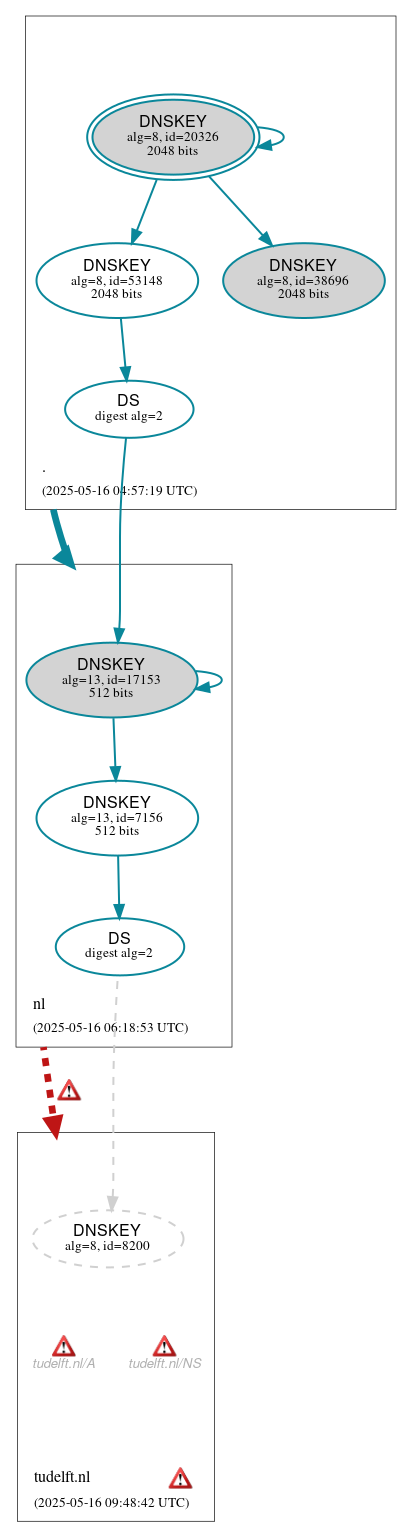

DNSSEC authentication graph
