DNSViz: A DNS visualization tool

tobacco.gov

Updated: 2022-10-18 18:19:09 UTC (553 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (4)
  • tobacco.gov/A
  • tobacco.gov/NS
  • tobacco.gov/SOA
  • tobacco.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (14)
  • ./DNSKEY (alg 8, id 18733)
  • ./DNSKEY (alg 8, id 20326)
  • gov/DNSKEY (alg 8, id 261)
  • gov/DNSKEY (alg 8, id 56278)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • tobacco.gov/DNSKEY (alg 8, id 15231)
  • tobacco.gov/DNSKEY (alg 8, id 20276)
  • tobacco.gov/DNSKEY (alg 8, id 27970)
  • tobacco.gov/DNSKEY (alg 8, id 28215)
  • tobacco.gov/DS (alg 8, id 20276)
  • tobacco.gov/DS (alg 8, id 20276)
  • tobacco.gov/DS (alg 8, id 27970)
  • tobacco.gov/DS (alg 8, id 27970)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to tobacco.gov

NoticesNotices

Errors (3)
  • tobacco.gov zone: The server(s) were not responsive to queries over UDP. (2607:f220:0:1::2a, 2607:f220:0:1::2b, 2607:f220:0:1::2c, 2607:f220:0:1::2d)
  • tobacco.gov/A: No response was received from the server over UDP (tried 12 times). (2607:f220:0:1::2a, 2607:f220:0:1::2b, 2607:f220:0:1::2c, 2607:f220:0:1::2d, UDP_-_NOEDNS_)
  • tobacco.gov/NS: No response was received from the server over UDP (tried 12 times). (2607:f220:0:1::2a, 2607:f220:0:1::2b, 2607:f220:0:1::2c, 2607:f220:0:1::2d, UDP_-_NOEDNS_)
Warnings (8)
  • tobacco.gov/DS (alg 8, id 20276): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • tobacco.gov/DS (alg 8, id 20276): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • tobacco.gov/DS (alg 8, id 20276): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • tobacco.gov/DS (alg 8, id 20276): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • tobacco.gov/DS (alg 8, id 27970): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • tobacco.gov/DS (alg 8, id 27970): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • tobacco.gov/DS (alg 8, id 27970): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • tobacco.gov/DS (alg 8, id 27970): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

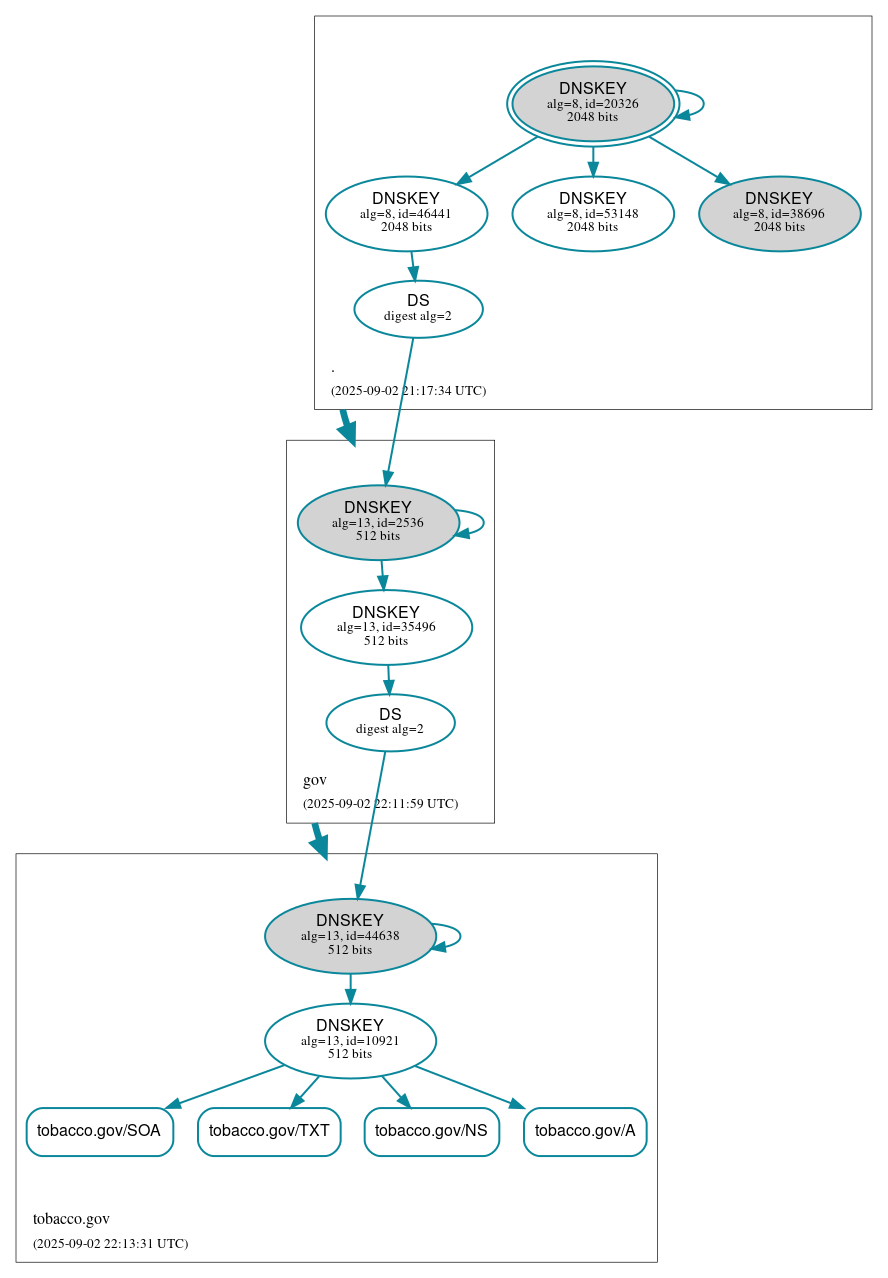

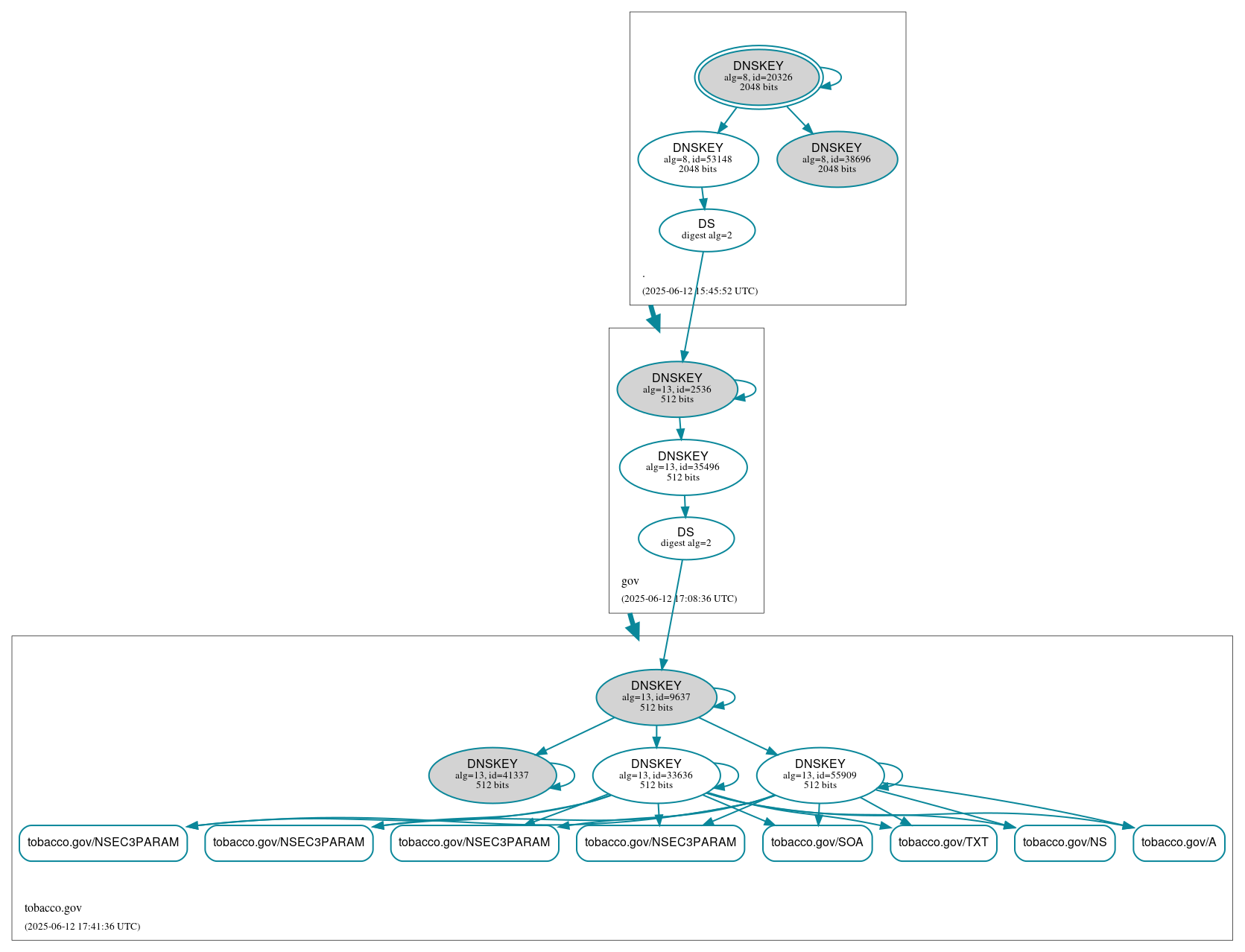

DNSSEC authentication graph
