DNSViz: A DNS visualization tool

ti.com

Updated: 2023-05-23 15:37:52 UTC (190 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (6)
  • ti.com/A
  • ti.com/MX
  • ti.com/NS
  • ti.com/SOA
  • ti.com/SOA
  • ti.com/TXT
Secure (2)
  • com/SOA
  • com/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 60955)
  • NSEC3 proving non-existence of ti.com/DS
  • com/DNSKEY (alg 8, id 30909)
  • com/DNSKEY (alg 8, id 46551)
  • com/DS (alg 8, id 30909)

Delegation statusDelegation status

Insecure (1)
  • com to ti.com
Secure (1)
  • . to com

NoticesNotices

Errors (4)
  • ./DNSKEY: No response was received from the server over UDP (tried 4 times). (192.228.79.201, UDP_-_EDNS0_512_D_KN)
  • ti.com zone: The server(s) were not responsive to queries over UDP. (192.163.14.193)
  • ti.com/A: No response was received from the server over UDP (tried 12 times). (192.163.14.193, UDP_-_NOEDNS_)
  • ti.com/NS: No response was received from the server over UDP (tried 12 times). (192.163.14.193, UDP_-_NOEDNS_)
Warnings (7)
  • ./DNSKEY (alg 8, id 20326): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.9.14.201, UDP_-_EDNS0_4096_D_KN)
  • ./DNSKEY (alg 8, id 60955): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.9.14.201, UDP_-_EDNS0_4096_D_KN)
  • com to ti.com: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the com zone): nsus.ti.com
  • com/DS (alg 8, id 30909): No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). (192.228.79.201, UDP_-_EDNS0_4096_D_KN)
  • com/DS (alg 8, id 30909): No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). (192.228.79.201, UDP_-_EDNS0_4096_D_KN)
  • com/DS (alg 8, id 30909): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.9.14.201, UDP_-_EDNS0_4096_D_KN)
  • com/DS (alg 8, id 30909): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (199.9.14.201, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

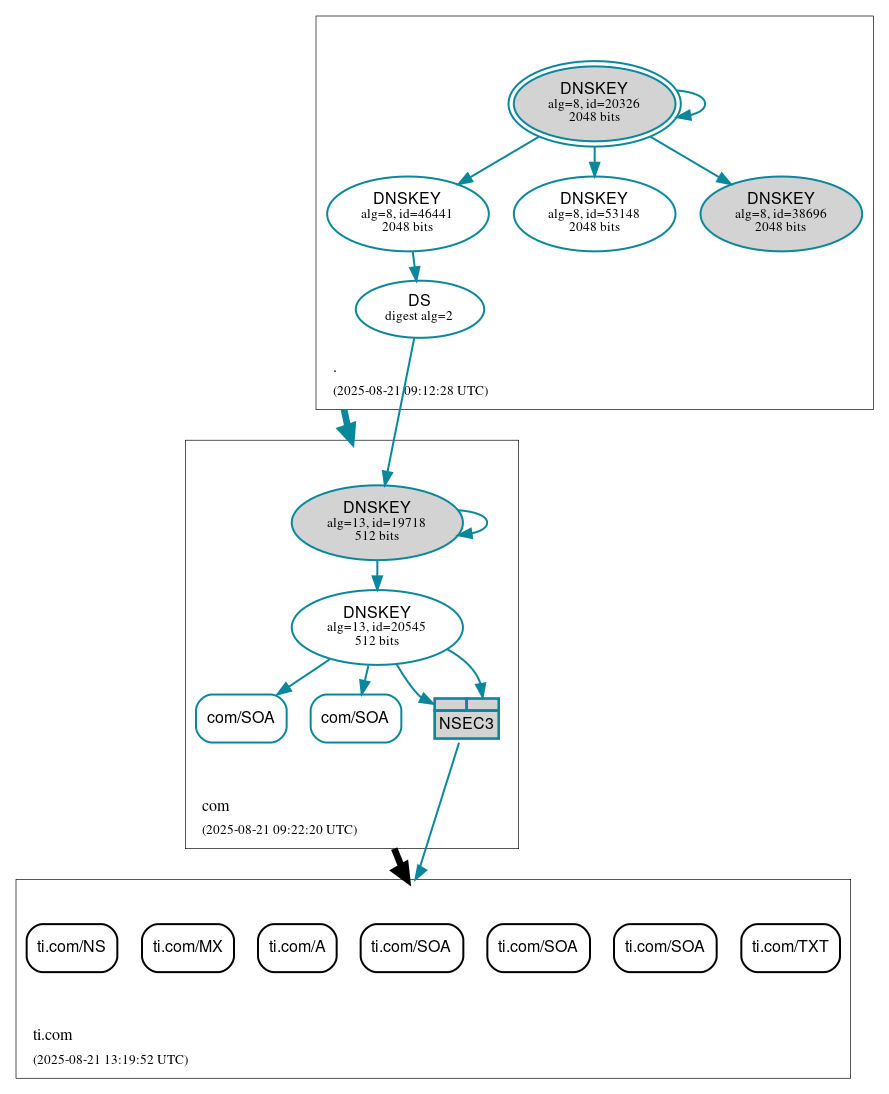

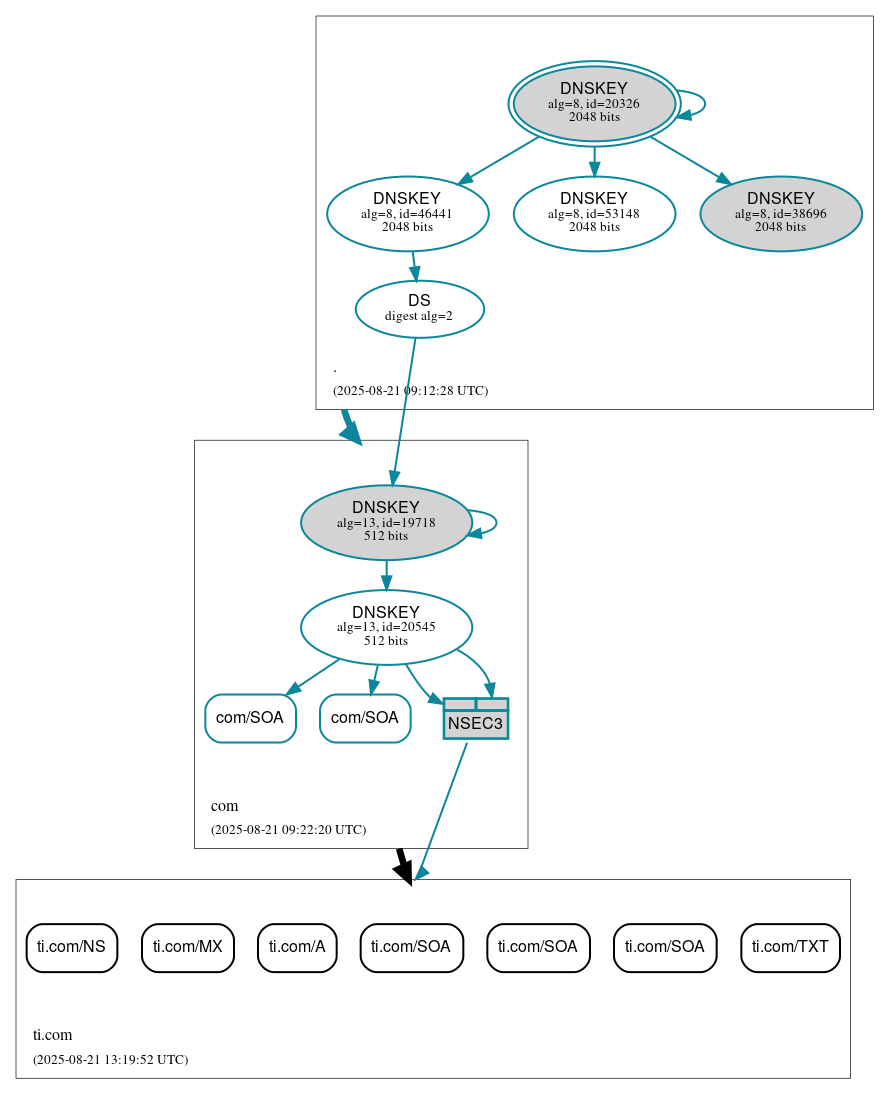

DNSSEC authentication graph
