DNSViz: A DNS visualization tool

sandia.gov

Updated: 2021-09-28 21:55:51 UTC (29 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (7)
  • sandia.gov/A
  • sandia.gov/AAAA
  • sandia.gov/MX
  • sandia.gov/NS
  • sandia.gov/NSEC3PARAM
  • sandia.gov/SOA
  • sandia.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 14748)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26838)
  • gov/DNSKEY (alg 8, id 57735)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • sandia.gov/DNSKEY (alg 7, id 20739)
  • sandia.gov/DNSKEY (alg 7, id 36033)
  • sandia.gov/DNSKEY (alg 7, id 5192)
  • sandia.gov/DS (alg 7, id 20739)
  • sandia.gov/DS (alg 7, id 20739)
  • sandia.gov/DS (alg 7, id 36033)
  • sandia.gov/DS (alg 7, id 36033)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to sandia.gov

NoticesNotices

Errors (1)
  • RRSIG sandia.gov/NSEC3PARAM alg 7, id 5192: The TTL of the RRset (86400) exceeds the value of the Original TTL field of the RRSIG RR covering it (0).
Warnings (21)
  • RRSIG sandia.gov/A alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/AAAA alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 20739: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 20739: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 20739: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 36033: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 36033: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/DNSKEY alg 7, id 36033: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/MX alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/NS alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/NSEC3PARAM alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/SOA alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG sandia.gov/TXT alg 7, id 5192: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • sandia.gov/DS (alg 7, id 20739): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • sandia.gov/DS (alg 7, id 20739): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • sandia.gov/DS (alg 7, id 20739): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • sandia.gov/DS (alg 7, id 20739): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • sandia.gov/DS (alg 7, id 36033): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • sandia.gov/DS (alg 7, id 36033): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • sandia.gov/DS (alg 7, id 36033): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • sandia.gov/DS (alg 7, id 36033): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

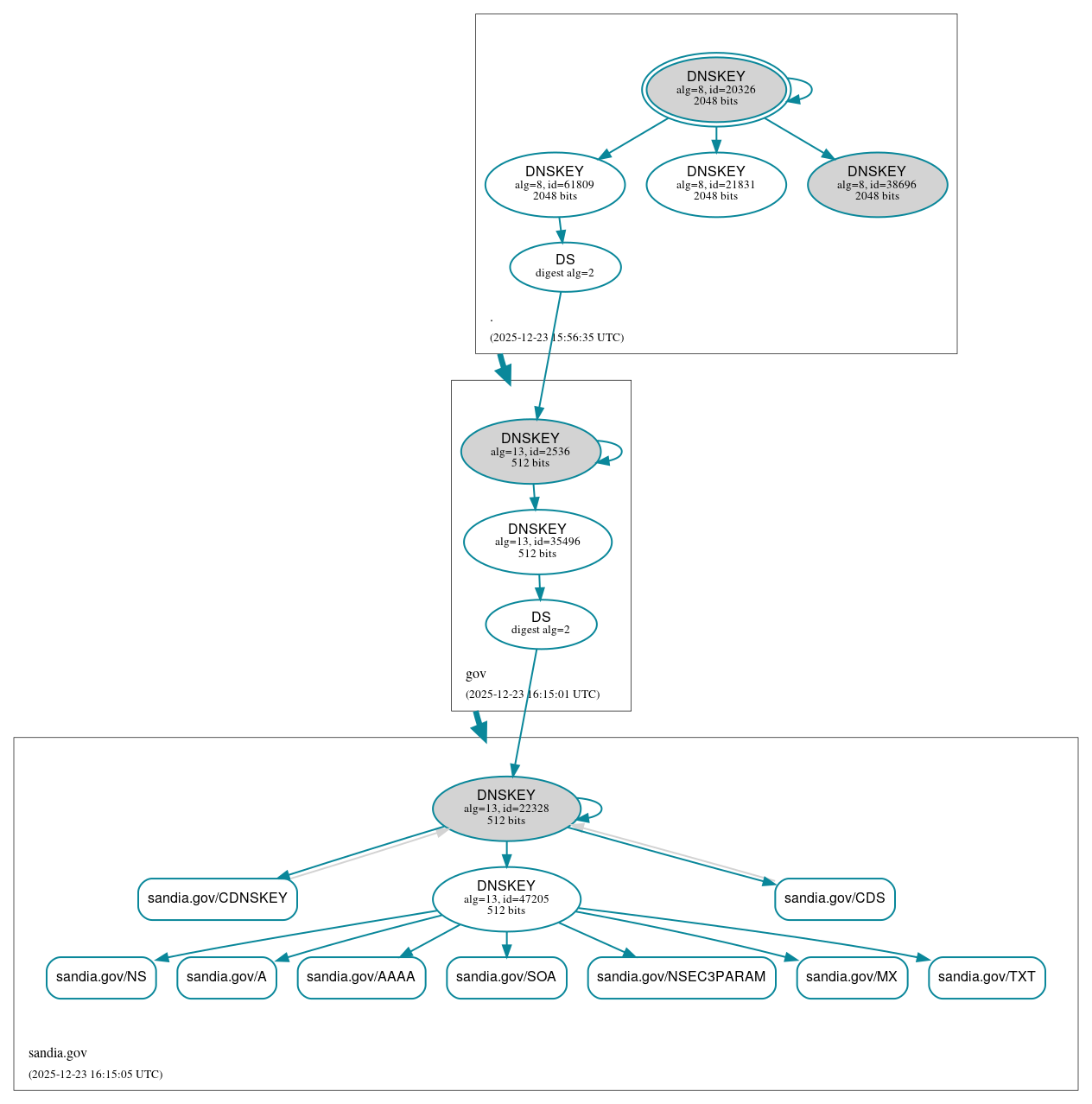

DNSSEC authentication graph
