DNSViz: A DNS visualization tool

pnnl.gov

Updated: 2020-11-09 17:04:03 UTC (69 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • pnnl.gov/A
  • pnnl.gov/AAAA
  • pnnl.gov/MX
  • pnnl.gov/NS
  • pnnl.gov/SOA
  • pnnl.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26116)
  • gov/DNSKEY (alg 8, id 15489)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • pnnl.gov/DNSKEY (alg 7, id 22443)
  • pnnl.gov/DNSKEY (alg 7, id 2451)
  • pnnl.gov/DNSKEY (alg 7, id 5255)
  • pnnl.gov/DNSKEY (alg 7, id 58160)
  • pnnl.gov/DS (alg 7, id 22443)
  • pnnl.gov/DS (alg 7, id 2451)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to pnnl.gov

NoticesNotices

Warnings (4)
  • gov to pnnl.gov: Authoritative AAAA records exist for nsx.pnl.gov, but there are no corresponding AAAA glue records.
  • gov to pnnl.gov: Authoritative AAAA records exist for nsy.pnl.gov, but there are no corresponding AAAA glue records.
  • gov to pnnl.gov: The glue address(es) for nsx.pnl.gov (192.101.109.47, 192.101.109.80) differed from its authoritative address(es) (192.101.109.80).
  • gov to pnnl.gov: The glue address(es) for nsy.pnl.gov (192.101.109.47, 192.101.109.80) differed from its authoritative address(es) (192.101.109.47).

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

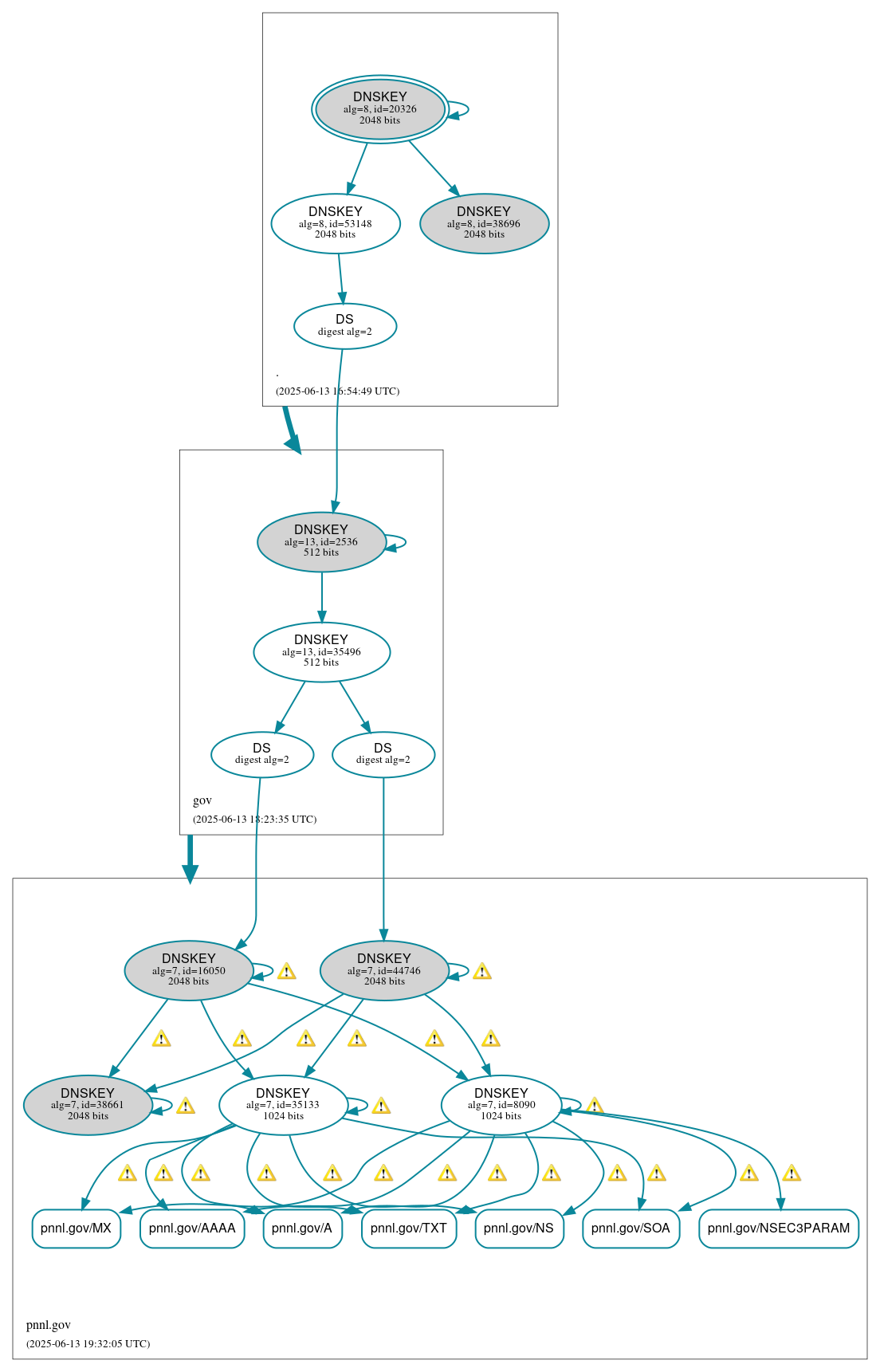

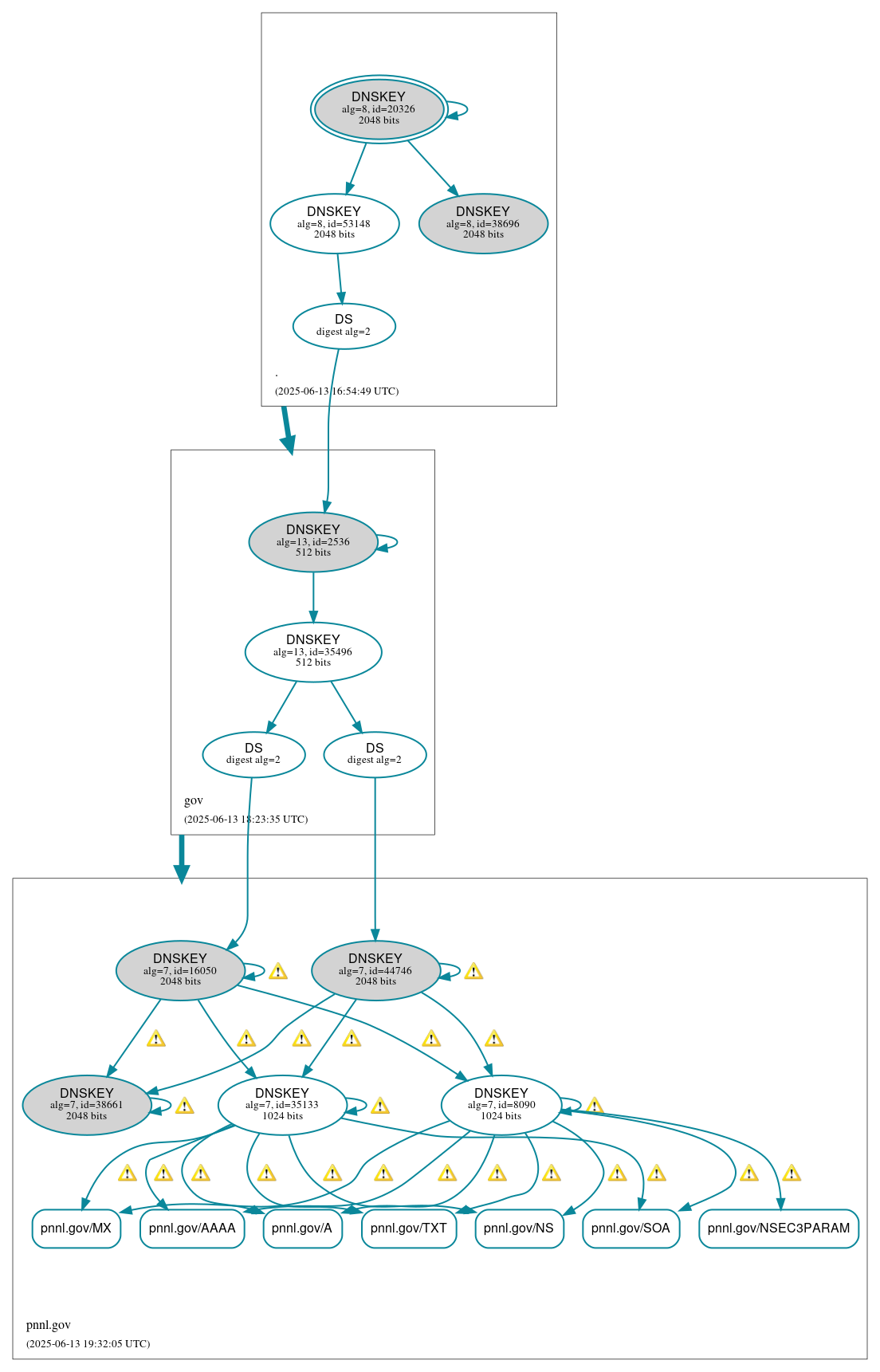

DNSSEC authentication graph
