DNSViz: A DNS visualization tool

penguinpee.nl

Updated: 2023-01-10 13:56:37 UTC (2 years ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • penguinpee.nl/A
  • penguinpee.nl/AAAA
  • penguinpee.nl/MX
  • penguinpee.nl/NS
  • penguinpee.nl/SOA
  • penguinpee.nl/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 18733)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 951)
  • nl/DNSKEY (alg 8, id 34112)
  • nl/DNSKEY (alg 8, id 52584)
  • nl/DS (alg 8, id 34112)
  • penguinpee.nl/DNSKEY (alg 13, id 29124)
  • penguinpee.nl/DS (alg 13, id 29124)

Delegation statusDelegation status

Secure (2)
  • . to nl
  • nl to penguinpee.nl

NoticesNotices

Errors (5)
  • penguinpee.nl zone: The server(s) were not responsive to queries over TCP. See RFC 1035, Sec. 4.2. (2001:41d0:701:1000::4bc)
  • penguinpee.nl zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (2a02:348:5e6:1::b6a0)
  • penguinpee.nl/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (2a02:348:5e6:1::b6a0, UDP_-_NOEDNS_)
  • penguinpee.nl/NS: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (2a02:348:5e6:1::b6a0, UDP_-_NOEDNS_)
  • penguinpee.nl/SOA: No response was received from the server over TCP (tried 3 times). See RFC 1035, Sec. 4.2. (2001:41d0:701:1000::4bc, TCP_-_EDNS0_4096_D_N)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

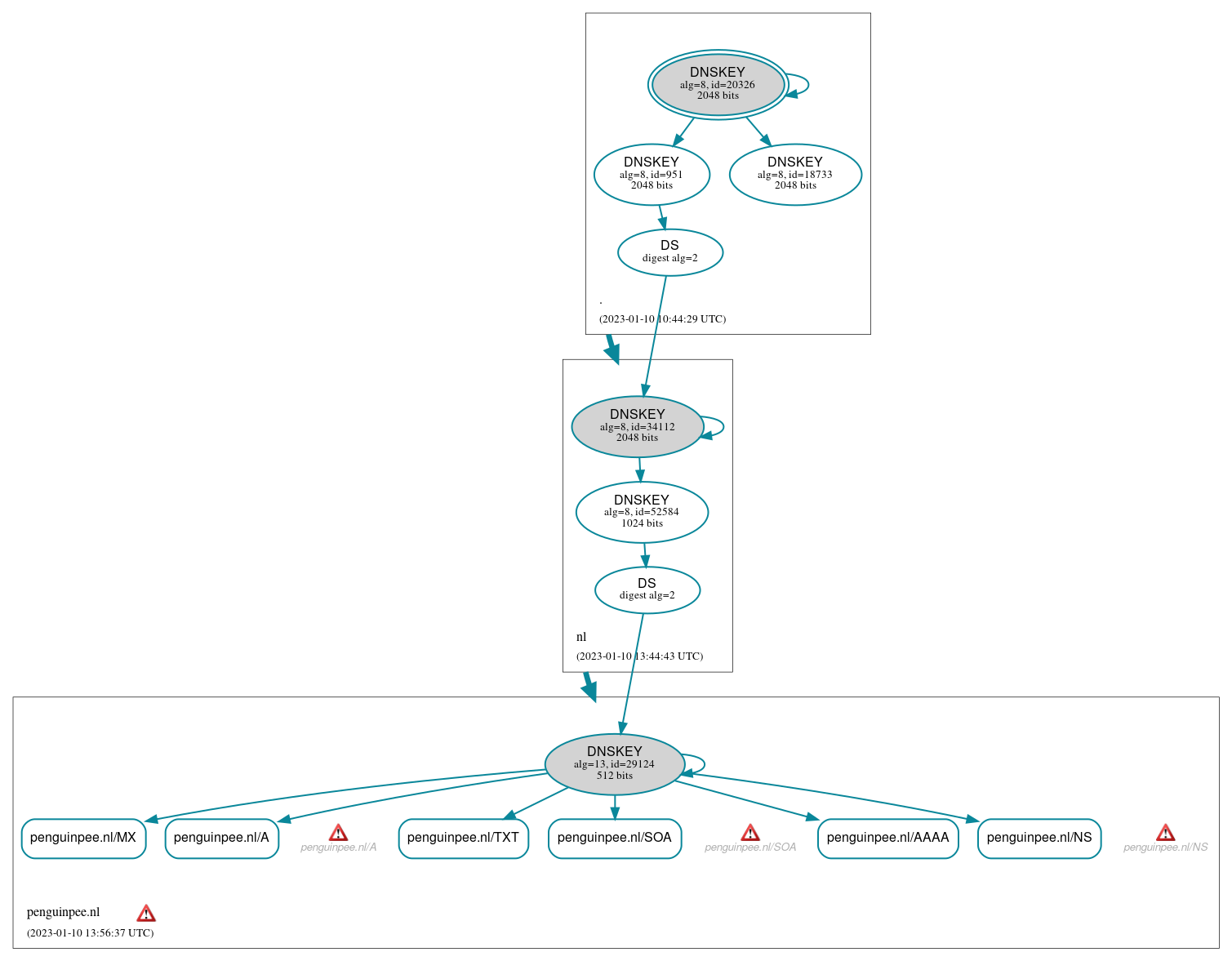

DNSSEC authentication graph
