DNSViz: A DNS visualization tool

parliament.uk

Updated: 2024-04-11 12:33:28 UTC (37 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • parliament.uk/A
  • parliament.uk/MX
  • parliament.uk/NS
  • parliament.uk/SOA
  • parliament.uk/TXT
Secure (1)
  • uk/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • ./DNSKEY (alg 8, id 5613)
  • NSEC3 proving non-existence of parliament.uk/DS
  • uk/DNSKEY (alg 8, id 43056)
  • uk/DNSKEY (alg 8, id 43876)
  • uk/DS (alg 8, id 43876)

Delegation statusDelegation status

Insecure (1)
  • uk to parliament.uk
Secure (1)
  • . to uk

NoticesNotices

Errors (3)
  • parliament.uk zone: The server(s) were not responsive to queries over UDP. (2600:1406:32::40)
  • parliament.uk/A: No response was received from the server over UDP (tried 12 times). (2600:1406:32::40, UDP_-_NOEDNS_)
  • parliament.uk/NS: No response was received from the server over UDP (tried 12 times). (2600:1406:32::40, UDP_-_NOEDNS_)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

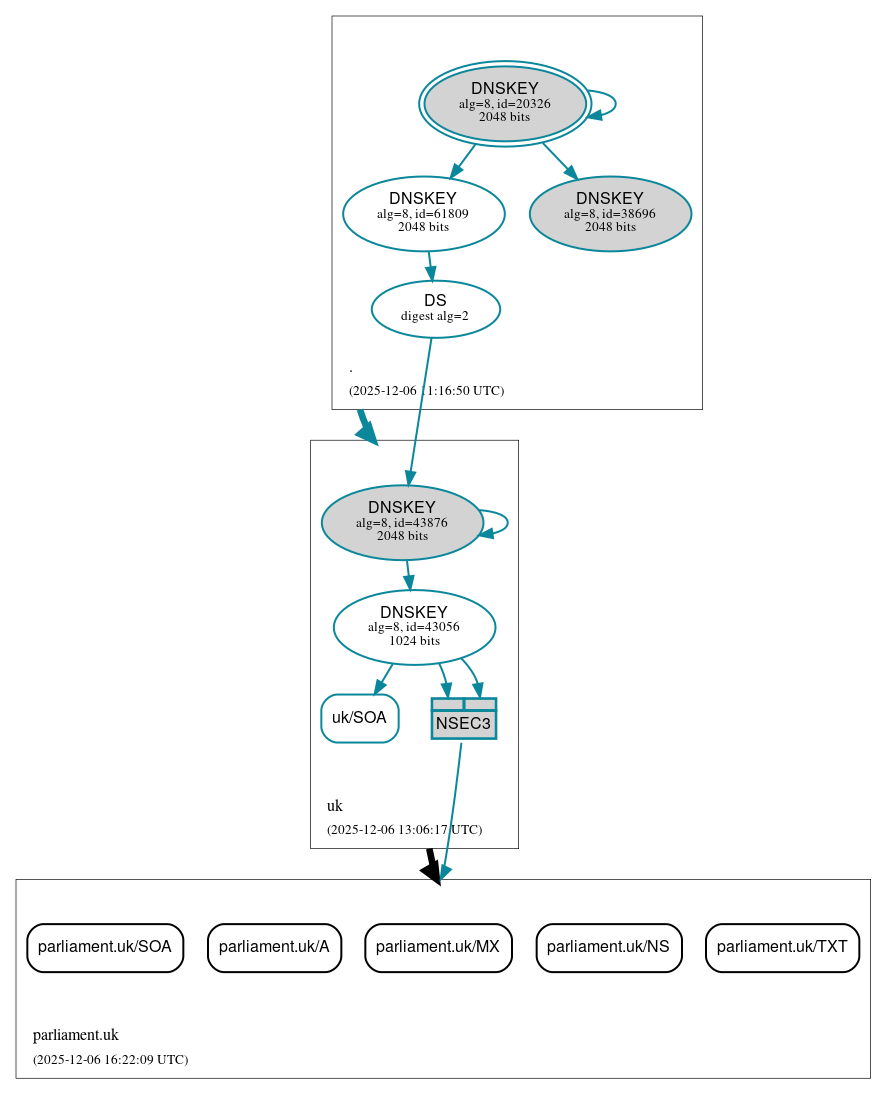

DNSSEC authentication graph
