DNSViz: A DNS visualization tool

nrc-gateway.gov

Updated: 2024-03-29 13:45:35 UTC (236 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • nrc-gateway.gov/A
  • nrc-gateway.gov/NS
  • nrc-gateway.gov/NSEC3PARAM
  • nrc-gateway.gov/SOA
  • nrc-gateway.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • ./DNSKEY (alg 8, id 5613)
  • gov/DNSKEY (alg 8, id 10104)
  • gov/DNSKEY (alg 8, id 64280)
  • gov/DS (alg 8, id 64280)
  • nrc-gateway.gov/DNSKEY (alg 8, id 16578)
  • nrc-gateway.gov/DNSKEY (alg 8, id 24730)
  • nrc-gateway.gov/DNSKEY (alg 8, id 7282)
  • nrc-gateway.gov/DS (alg 8, id 24730)
  • nrc-gateway.gov/DS (alg 8, id 24730)
  • nrc-gateway.gov/DS (alg 8, id 7282)
  • nrc-gateway.gov/DS (alg 8, id 7282)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to nrc-gateway.gov

NoticesNotices

Errors (4)
  • ahbt71epxm.nrc-gateway.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/MX has errors; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (12)
  • nrc-gateway.gov/DS (alg 8, id 24730): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • nrc-gateway.gov/DS (alg 8, id 24730): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • nrc-gateway.gov/DS (alg 8, id 24730): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • nrc-gateway.gov/DS (alg 8, id 24730): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • nrc-gateway.gov/DS (alg 8, id 7282): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • nrc-gateway.gov/DS (alg 8, id 7282): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • nrc-gateway.gov/DS (alg 8, id 7282): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • nrc-gateway.gov/DS (alg 8, id 7282): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • ahbt71epxm.nrc-gateway.gov/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/MX has warnings; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • nrc-gateway.gov/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

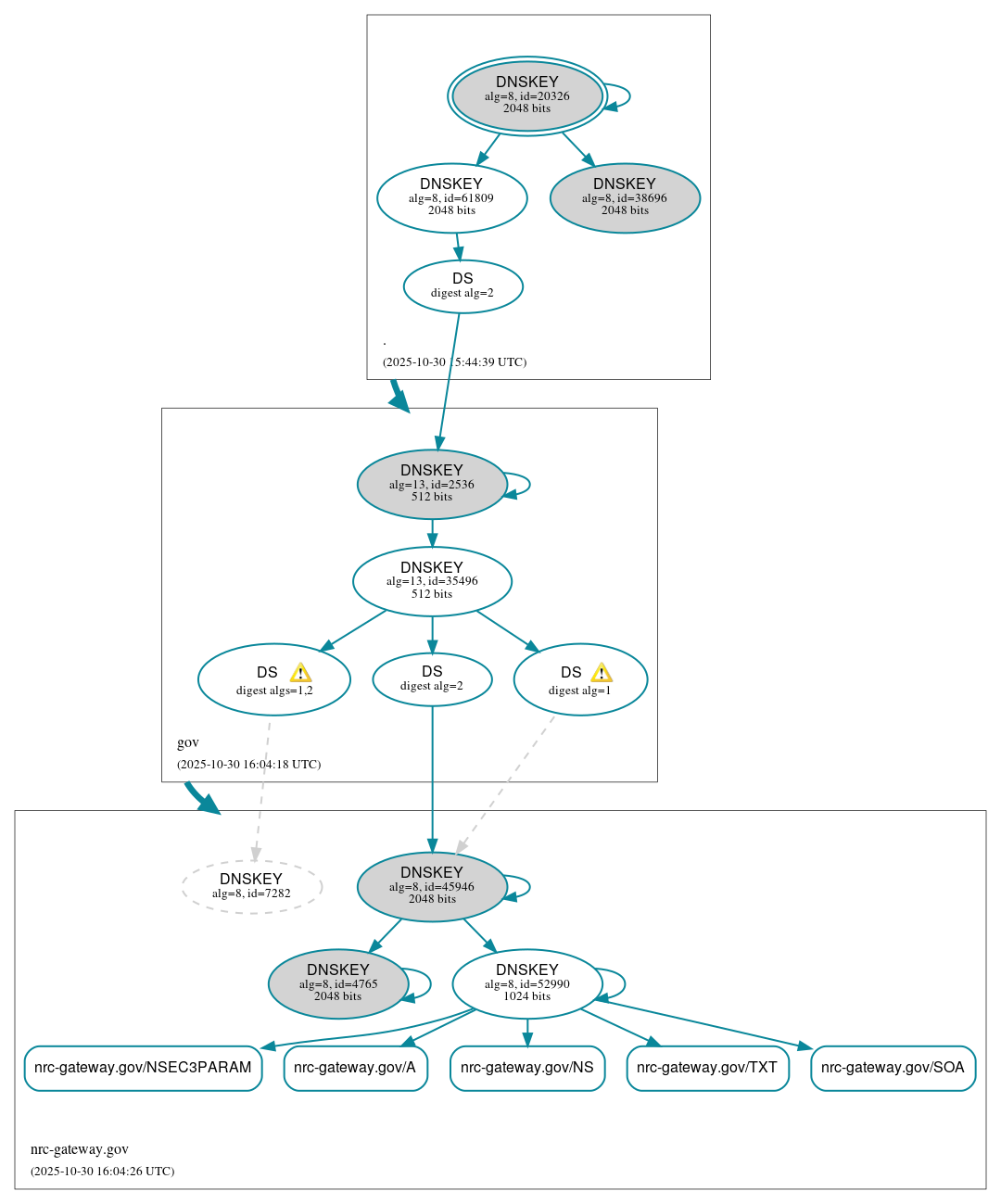

DNSSEC authentication graph
