DNSViz: A DNS visualization tool

no8.be

Updated: 2024-12-07 12:02:56 UTC (5 months ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • no8.be/CDNSKEY
  • no8.be/CDS
  • no8.be/MX
  • no8.be/NS
  • no8.be/SOA
  • no8.be/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • be/DNSKEY (alg 8, id 23343)
  • be/DNSKEY (alg 8, id 29088)
  • be/DNSKEY (alg 8, id 3303)
  • be/DNSKEY (alg 8, id 52756)
  • be/DS (alg 8, id 52756)
  • no8.be/DNSKEY (alg 13, id 26973)
  • no8.be/DNSKEY (alg 13, id 48895)
  • no8.be/DS (alg 13, id 48895)

Delegation statusDelegation status

Secure (2)
  • . to be
  • be to no8.be

NoticesNotices

Errors (16)
  • no8.be zone: The server(s) responded over TCP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53)
  • no8.be zone: The server(s) responded over UDP with a malformed response or with an invalid RCODE. See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53)
  • no8.be/CDNSKEY: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN)
  • no8.be/CDS: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN)
  • no8.be/DNSKEY: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • no8.be/MX: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_512_D_KN)
  • no8.be/NS: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN)
  • no8.be/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, TCP_-_EDNS0_4096_D_N)
  • no8.be/SOA: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN, UDP_-_EDNS0_4096_D_KN_0x20)
  • no8.be/TXT: The response had an invalid RCODE (REFUSED). See RFC 1035, Sec. 4.1.1. (93.186.33.42, 2001:4b10:100:7::53, UDP_-_EDNS0_4096_D_KN)
  • no8.be/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/NSEC3PARAM has errors; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • qseva.6zdmh.no8.be/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/DNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (9)
  • no8.be/CDNSKEY: No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • no8.be/DNSKEY (alg 13, id 26973): No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • no8.be/DNSKEY (alg 13, id 48895): No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • no8.be/MX: No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • no8.be/NS: No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • no8.be/TXT: No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (147.28.0.39, UDP_-_EDNS0_4096_D_KN)
  • qseva.6zdmh.no8.be/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/NSEC3PARAM has warnings; select the "Denial of existence" DNSSEC option to see them.
  • no8.be/DNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

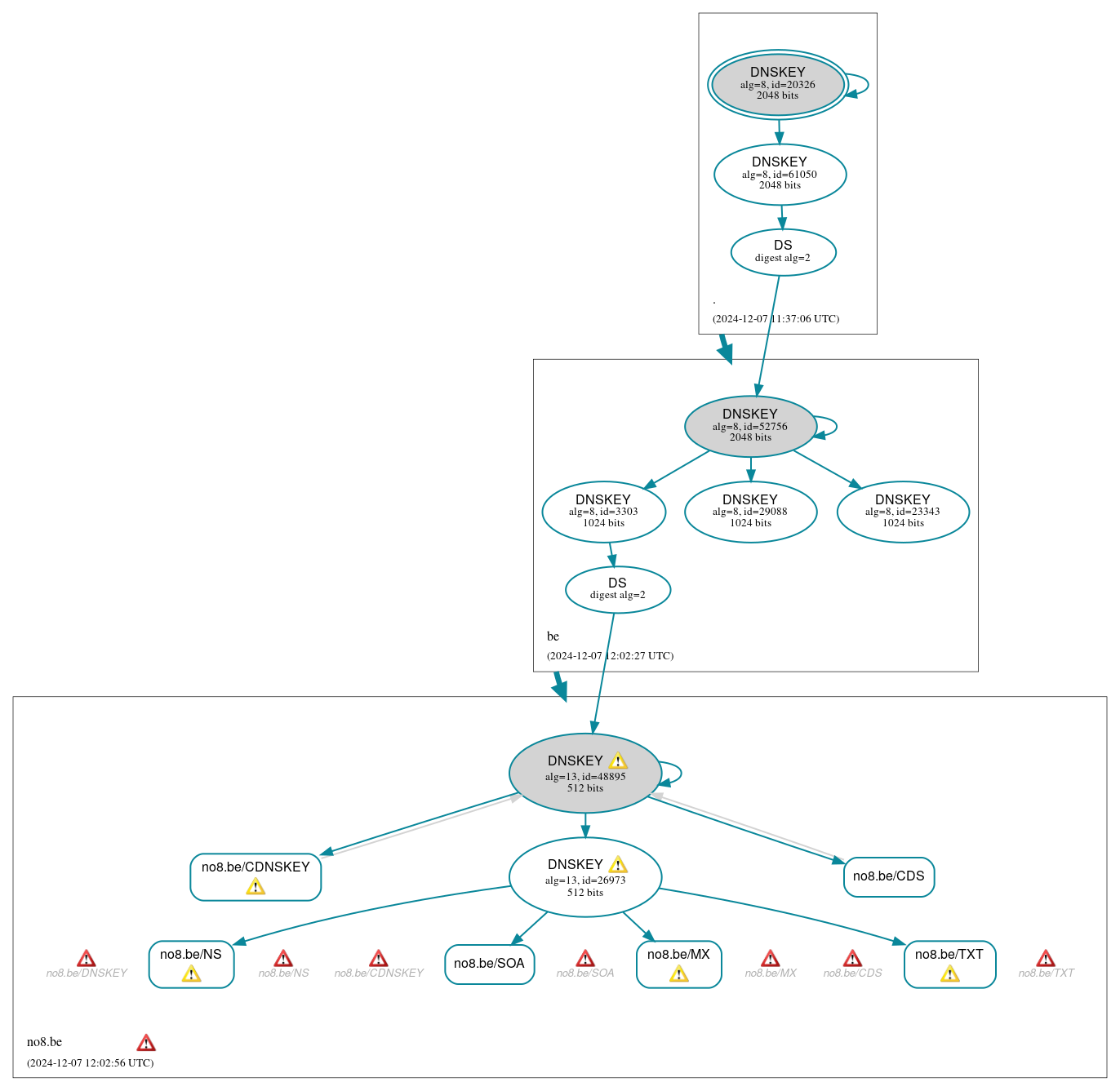

DNSSEC authentication graph
