DNSViz: A DNS visualization tool

murraystate.edu

Updated: 2020-04-27 18:58:18 UTC (65 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • murraystate.edu/A
  • murraystate.edu/MX
  • murraystate.edu/NS
  • murraystate.edu/SOA
  • murraystate.edu/TXT
Secure (2)
  • edu/SOA
  • edu/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 48903)
  • NSEC3 proving non-existence of murraystate.edu/DS
  • edu/DNSKEY (alg 8, id 28065)
  • edu/DNSKEY (alg 8, id 8663)
  • edu/DS (alg 8, id 28065)

Delegation statusDelegation status

Insecure (1)
  • edu to murraystate.edu
Secure (1)
  • . to edu

NoticesNotices

Errors (3)
  • murraystate.edu zone: The server(s) were not responsive to queries over UDP. (74.143.180.194, 216.249.191.10)
  • murraystate.edu/A: No response was received from the server over UDP (tried 12 times). (74.143.180.194, 216.249.191.10, UDP_-_NOEDNS_)
  • murraystate.edu/NS: No response was received from the server over UDP (tried 12 times). (74.143.180.194, 216.249.191.10, UDP_-_NOEDNS_)
Warnings (1)
  • edu to murraystate.edu: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the edu zone): arbiter.murraystate.edu, flood.murraystate.edu

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

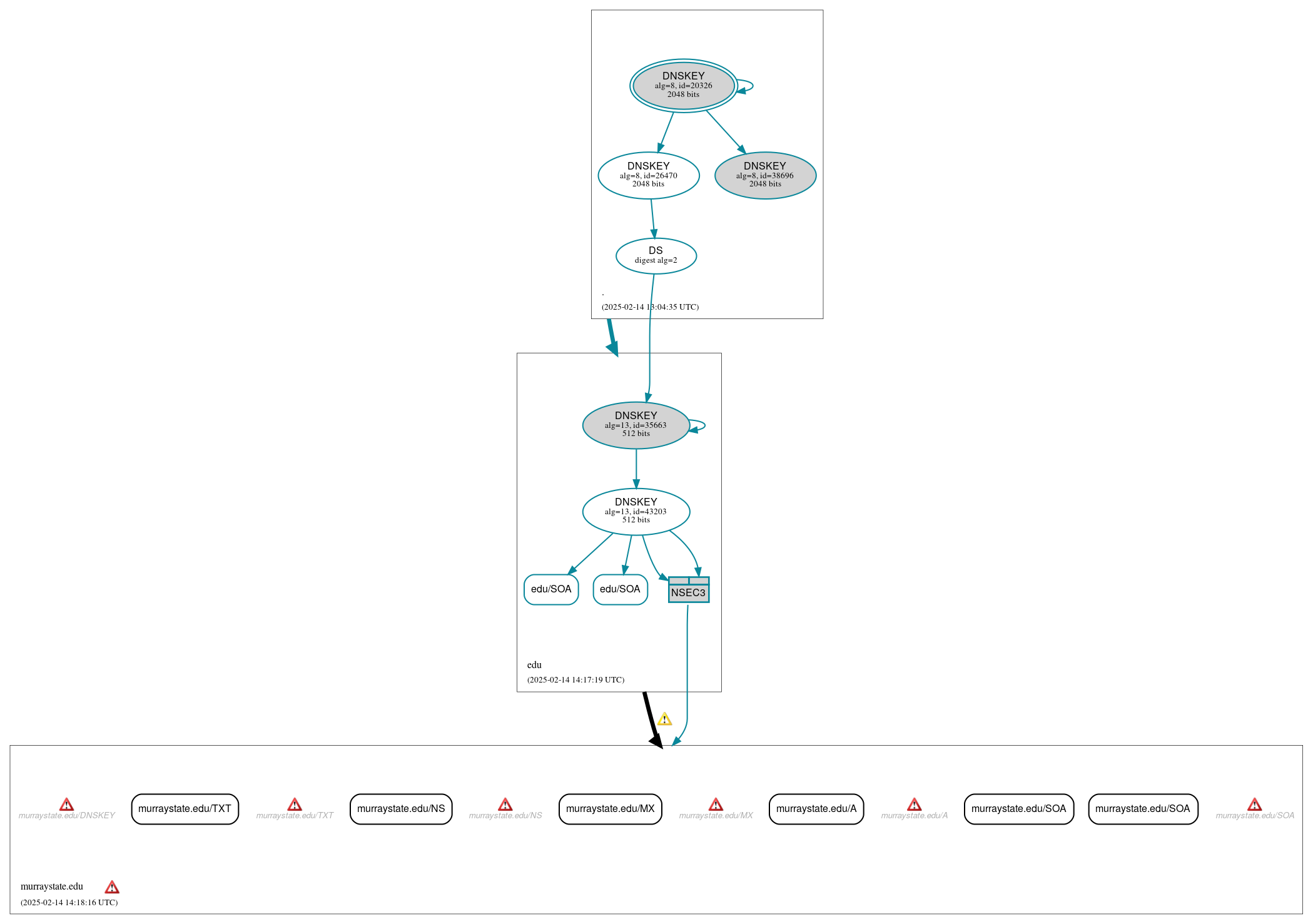

DNSSEC authentication graph
