DNSViz: A DNS visualization tool

luca-appeals.gov

Updated: 2021-03-01 18:27:25 UTC (209 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • luca-appeals.gov/A
  • luca-appeals.gov/MX
  • luca-appeals.gov/NS
  • luca-appeals.gov/SOA
  • luca-appeals.gov/TXT
Secure (1)
  • gov/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Insecure (4)
  • luca-appeals.gov/DNSKEY (alg 7, id 1053)
  • luca-appeals.gov/DNSKEY (alg 7, id 62288)
  • luca-appeals.gov/DNSKEY (alg 8, id 4593)
  • luca-appeals.gov/DNSKEY (alg 8, id 61669)
Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 42351)
  • NSEC3 proving non-existence of luca-appeals.gov/DS
  • gov/DNSKEY (alg 8, id 27306)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Insecure (1)
  • gov to luca-appeals.gov
Secure (1)
  • . to gov

NoticesNotices

Warnings (19)
  • RRSIG luca-appeals.gov/A alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 1053: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 1053: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 1053: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 1053: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/DNSKEY alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/MX alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/NS alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/SOA alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG luca-appeals.gov/TXT alg 7, id 62288: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • gov to luca-appeals.gov: Authoritative AAAA records exist for ns1e.census.gov, but there are no corresponding AAAA glue records.
  • gov to luca-appeals.gov: Authoritative AAAA records exist for ns2e.census.gov, but there are no corresponding AAAA glue records.
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

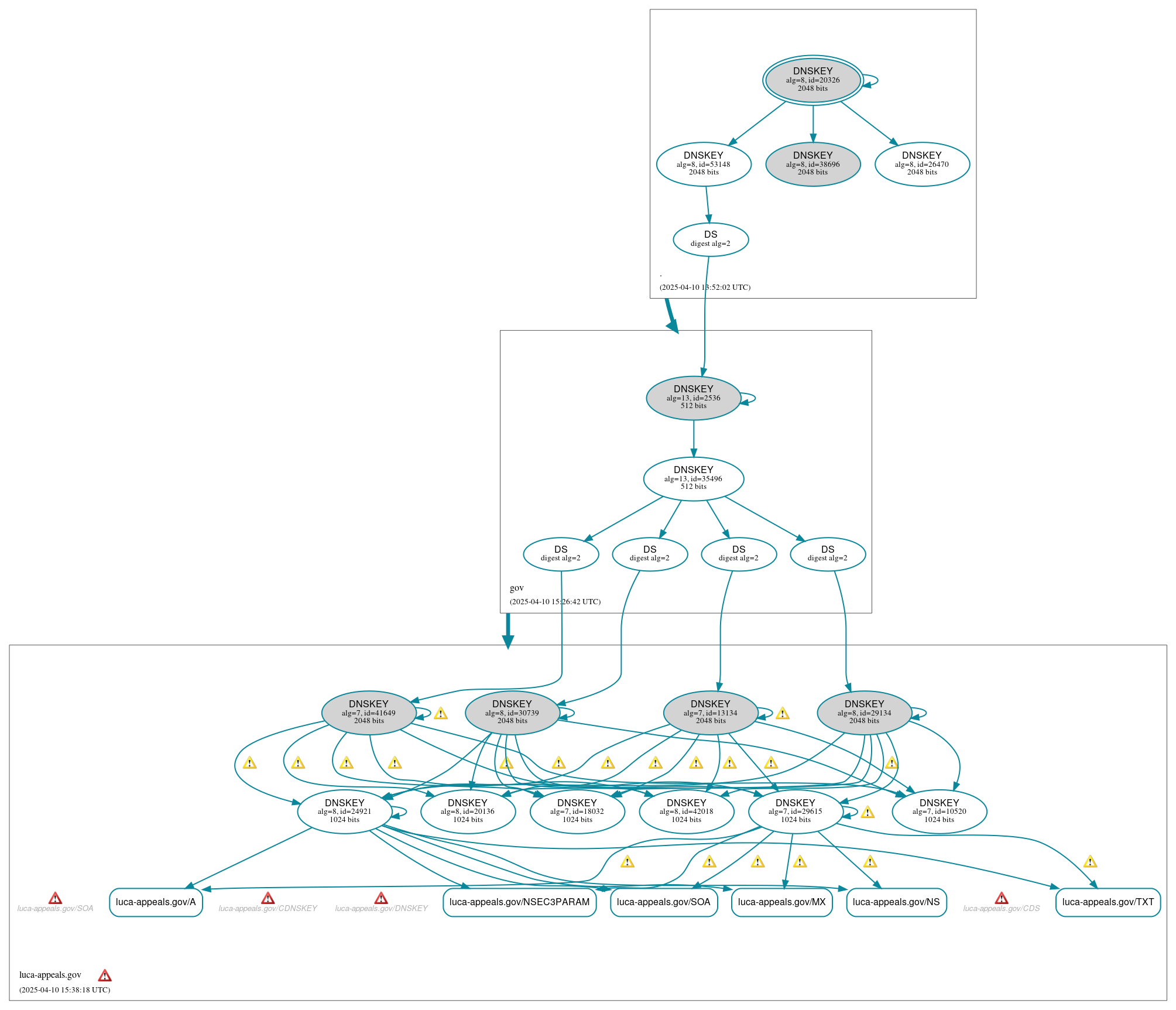

DNSSEC authentication graph
