DNSViz: A DNS visualization tool

llnl.gov

Updated: 2021-01-07 14:17:48 UTC (166 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • llnl.gov/A
  • llnl.gov/MX
  • llnl.gov/NS
  • llnl.gov/SOA
  • llnl.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 26116)
  • ./DNSKEY (alg 8, id 42351)
  • gov/DNSKEY (alg 8, id 15489)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • llnl.gov/DNSKEY (alg 7, id 21150)
  • llnl.gov/DNSKEY (alg 7, id 8645)
  • llnl.gov/DS (alg 7, id 21150)
  • llnl.gov/DS (alg 7, id 21150)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to llnl.gov

NoticesNotices

Warnings (17)
  • RRSIG llnl.gov/A alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/DNSKEY alg 7, id 21150: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/DNSKEY alg 7, id 21150: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/DNSKEY alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/DNSKEY alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/MX alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/NS alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/SOA alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG llnl.gov/TXT alg 7, id 8645: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • llnl.gov/DS (alg 7, id 21150): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • llnl.gov/DS (alg 7, id 21150): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • llnl.gov/DS (alg 7, id 21150): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • llnl.gov/DS (alg 7, id 21150): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

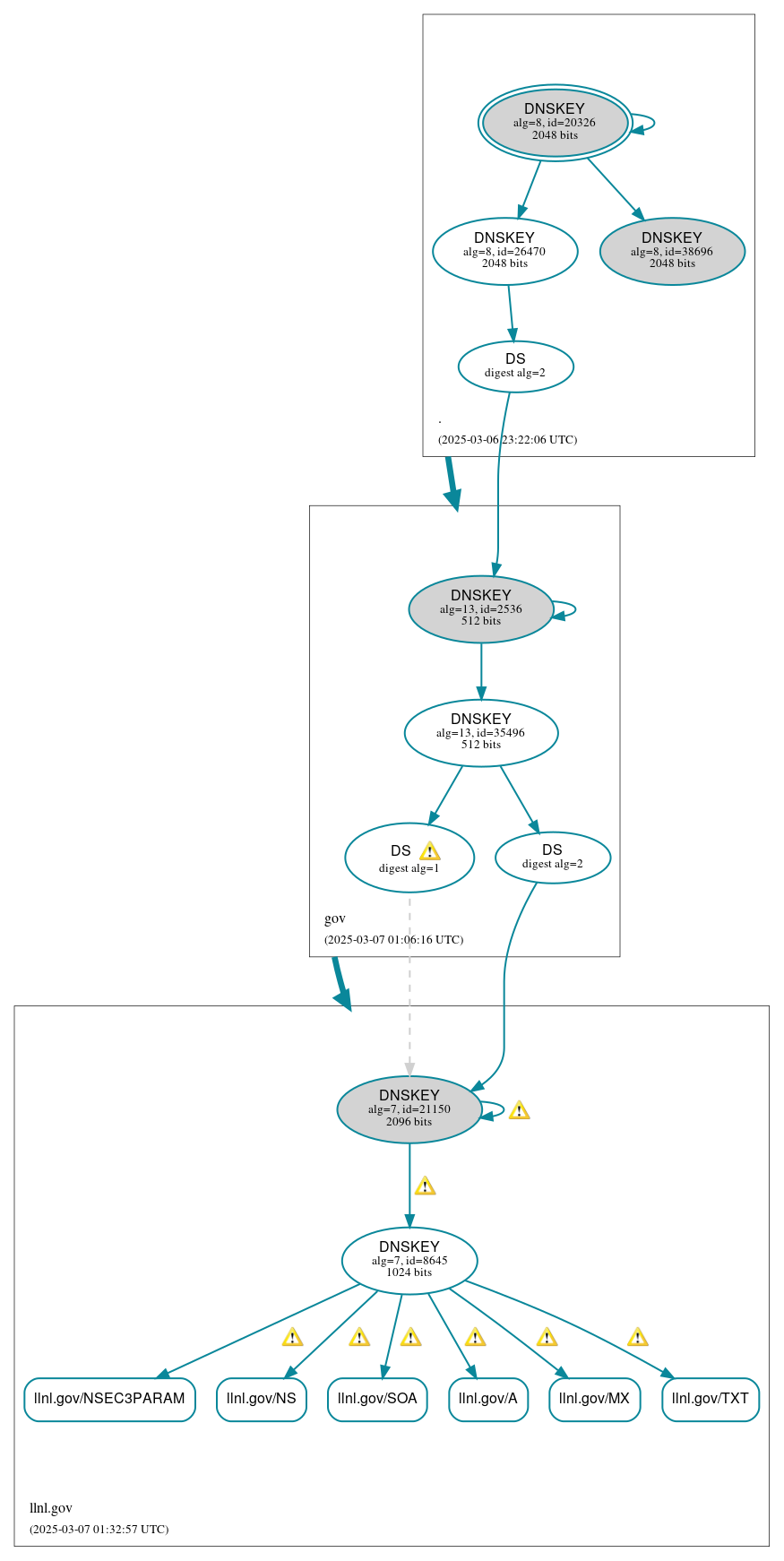

DNSSEC authentication graph
