DNSViz: A DNS visualization tool

lanl.gov

Updated: 2021-03-16 19:10:53 UTC (91 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • lanl.gov/A
  • lanl.gov/AAAA
  • lanl.gov/MX
  • lanl.gov/NS
  • lanl.gov/SOA
  • lanl.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 42351)
  • gov/DNSKEY (alg 8, id 27306)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • lanl.gov/DNSKEY (alg 8, id 11749)
  • lanl.gov/DNSKEY (alg 8, id 32145)
  • lanl.gov/DNSKEY (alg 8, id 41410)
  • lanl.gov/DS (alg 8, id 11749)
  • lanl.gov/DS (alg 8, id 11749)
  • lanl.gov/DS (alg 8, id 41410)
  • lanl.gov/DS (alg 8, id 41410)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to lanl.gov

NoticesNotices

Warnings (9)
  • gov to lanl.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): nsx2.lanl.gov, nsx3.lanl.gov, nsx.lanl.gov
  • lanl.gov/DS (alg 8, id 11749): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • lanl.gov/DS (alg 8, id 11749): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • lanl.gov/DS (alg 8, id 11749): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • lanl.gov/DS (alg 8, id 11749): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • lanl.gov/DS (alg 8, id 41410): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • lanl.gov/DS (alg 8, id 41410): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • lanl.gov/DS (alg 8, id 41410): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • lanl.gov/DS (alg 8, id 41410): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

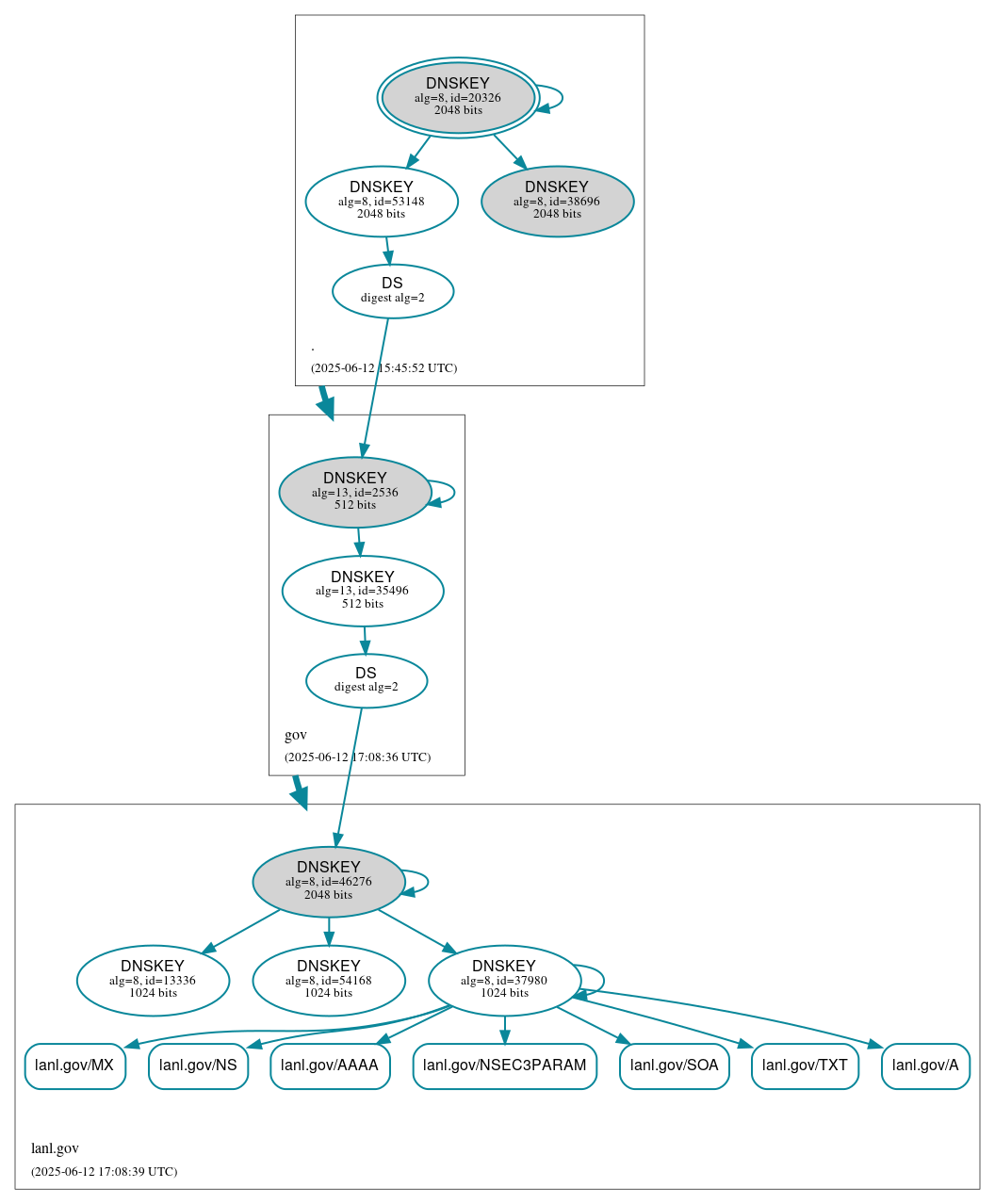

DNSSEC authentication graph
