DNSViz: A DNS visualization tool

labor.gov

Updated: 2022-06-22 12:35:56 UTC (9 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (1)
  • gov/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 20826)
  • ./DNSKEY (alg 8, id 47671)
  • NSEC3 proving non-existence of labor.gov/DS
  • gov/DNSKEY (alg 8, id 2706)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Lame (1)
  • gov to labor.gov
Secure (1)
  • . to gov

NoticesNotices

Errors (4)
  • labor.gov zone: The following NS name(s) did not resolve to address(es): ns05.dol.gov, ns06.dol.gov, ns1.dol.gov, ns2.dol.gov
  • labor.gov zone: The server(s) were not responsive to queries over UDP. (63.106.133.211, 63.106.133.212, 152.180.11.238, 152.180.11.239)
  • labor.gov/A: No response was received from the server over UDP (tried 12 times). (63.106.133.211, 63.106.133.212, 152.180.11.238, 152.180.11.239, UDP_-_NOEDNS_)
  • labor.gov/NS: No response was received from the server over UDP (tried 12 times). (63.106.133.211, 63.106.133.212, 152.180.11.238, 152.180.11.239, UDP_-_NOEDNS_)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

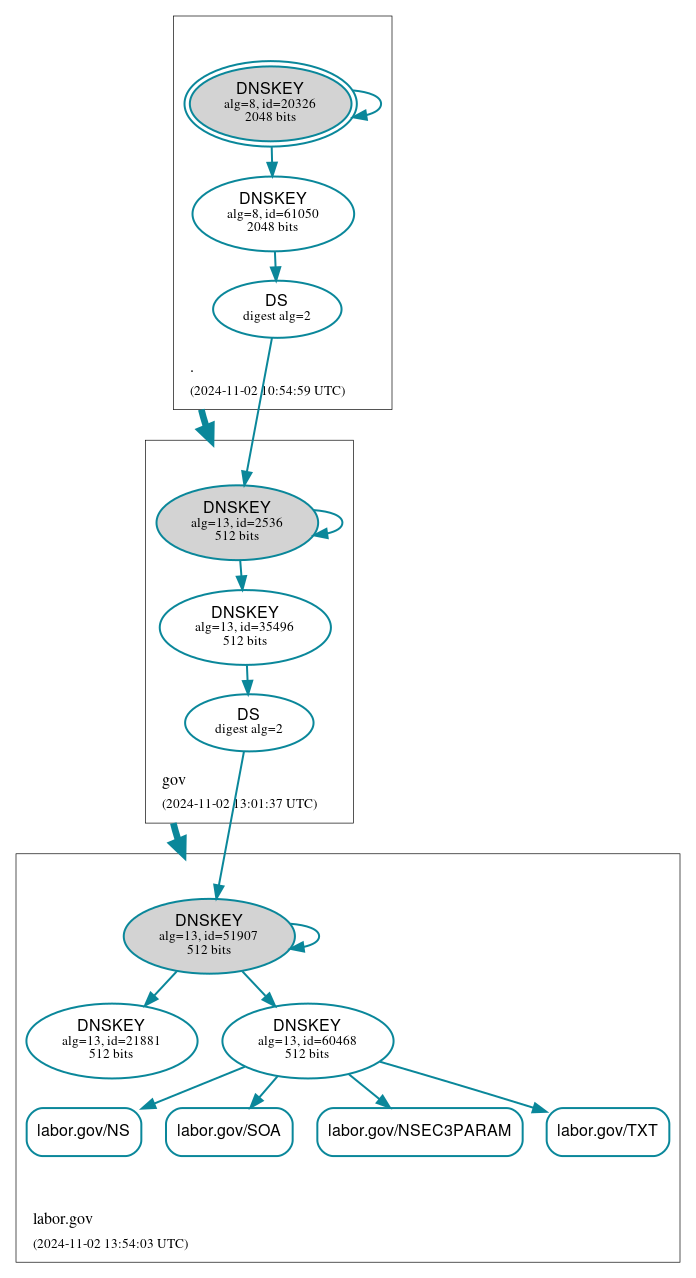

DNSSEC authentication graph
