DNSViz: A DNS visualization tool

keys.openpgp.org

Updated: 2024-08-16 02:22:14 UTC (127 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (9)
  • keys.openpgp.org/A
  • keys.openpgp.org/AAAA
  • keys.openpgp.org/CDNSKEY
  • keys.openpgp.org/CDS
  • keys.openpgp.org/MX
  • keys.openpgp.org/NS
  • keys.openpgp.org/NSEC3PARAM
  • keys.openpgp.org/SOA
  • keys.openpgp.org/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20038)
  • ./DNSKEY (alg 8, id 20326)
  • keys.openpgp.org/DNSKEY (alg 13, id 59593)
  • keys.openpgp.org/DS (alg 13, id 59593)
  • openpgp.org/DNSKEY (alg 8, id 26041)
  • openpgp.org/DNSKEY (alg 8, id 63435)
  • openpgp.org/DS (alg 8, id 26041)
  • org/DNSKEY (alg 8, id 23064)
  • org/DNSKEY (alg 8, id 26974)
  • org/DNSKEY (alg 8, id 54228)
  • org/DS (alg 8, id 26974)

Delegation statusDelegation status

Secure (3)
  • . to org
  • openpgp.org to keys.openpgp.org
  • org to openpgp.org

NoticesNotices

Warnings (5)
  • ./DNSKEY (alg 8, id 20038): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)
  • ./DNSKEY (alg 8, id 20326): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)
  • ./DNSKEY: The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_512_D_KN)
  • org/DS (alg 8, id 26974): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)
  • org/DS (alg 8, id 26974): The server appears to support DNS cookies but did not return a COOKIE option. See RFC 7873, Sec. 5.2.3. (2001:500:2f::f, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

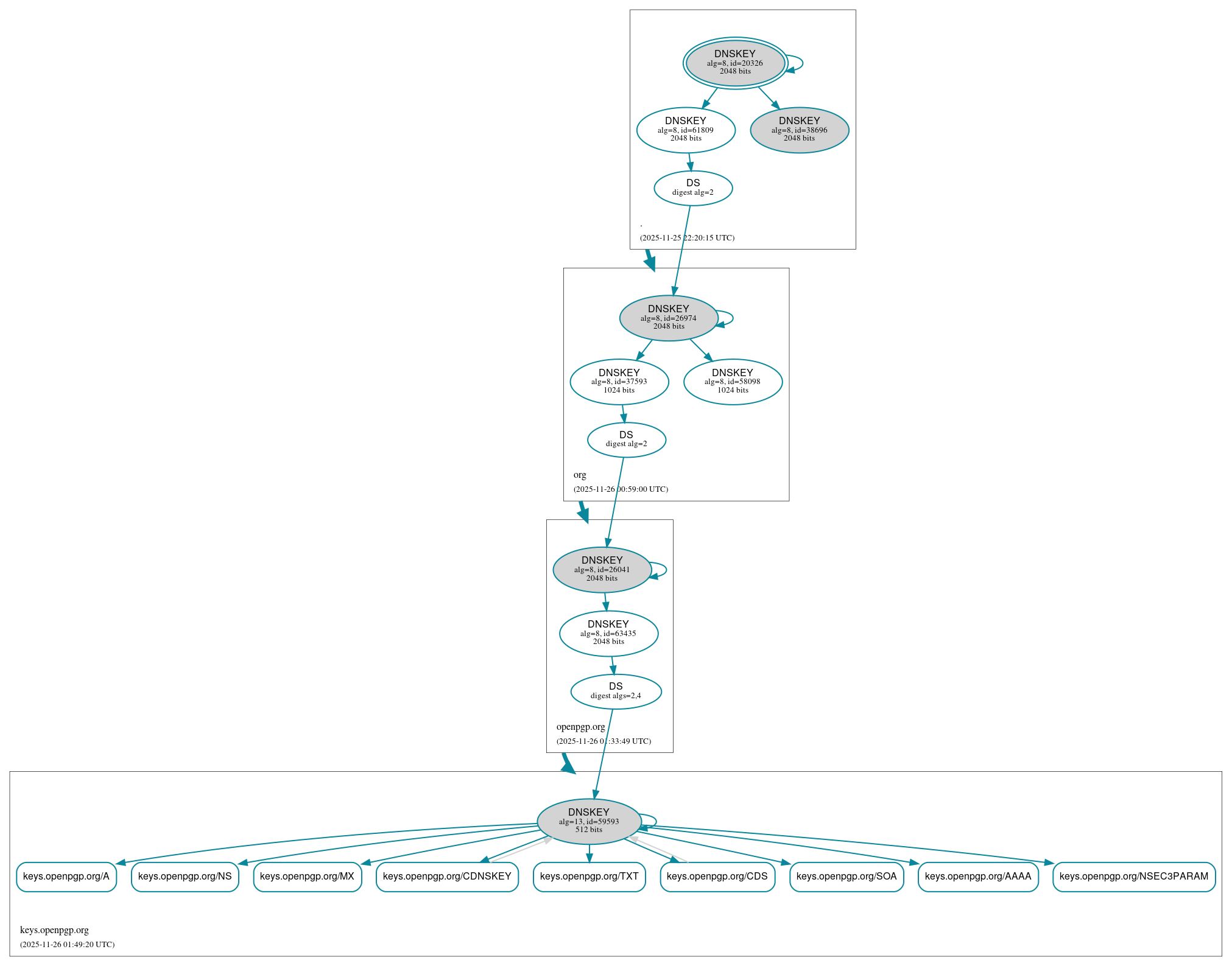

DNSSEC authentication graph
