DNSViz: A DNS visualization tool

jccs.gov

Updated: 2024-10-17 18:08:16 UTC (34 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • jccs.gov/NS
  • jccs.gov/NSEC3PARAM
  • jccs.gov/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (10)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 61050)
  • gov/DNSKEY (alg 13, id 2536)
  • gov/DNSKEY (alg 13, id 35496)
  • gov/DS (alg 13, id 2536)
  • jccs.gov/DNSKEY (alg 8, id 25024)
  • jccs.gov/DNSKEY (alg 8, id 27802)
  • jccs.gov/DNSKEY (alg 8, id 6891)
  • jccs.gov/DS (alg 8, id 27802)
  • jccs.gov/DS (alg 8, id 27802)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to jccs.gov

NoticesNotices

Errors (8)
  • jccs.gov/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/TXT has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/CDNSKEY has errors; select the "Denial of existence" DNSSEC option to see them.
  • cgz4x.ie08g.jccs.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/MX has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/A has errors; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/CDS has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (12)
  • jccs.gov/DS (alg 8, id 27802): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • jccs.gov/DS (alg 8, id 27802): DNSSEC implementers are prohibited from implementing signing with DS algorithm 1 (SHA-1). See RFC 8624, Sec. 3.2.
  • jccs.gov/DS (alg 8, id 27802): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • jccs.gov/DS (alg 8, id 27802): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset. See RFC 4509, Sec. 3.
  • jccs.gov/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/TXT has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/CDNSKEY has warnings; select the "Denial of existence" DNSSEC option to see them.
  • cgz4x.ie08g.jccs.gov/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/MX has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/A has warnings; select the "Denial of existence" DNSSEC option to see them.
  • jccs.gov/CDS has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

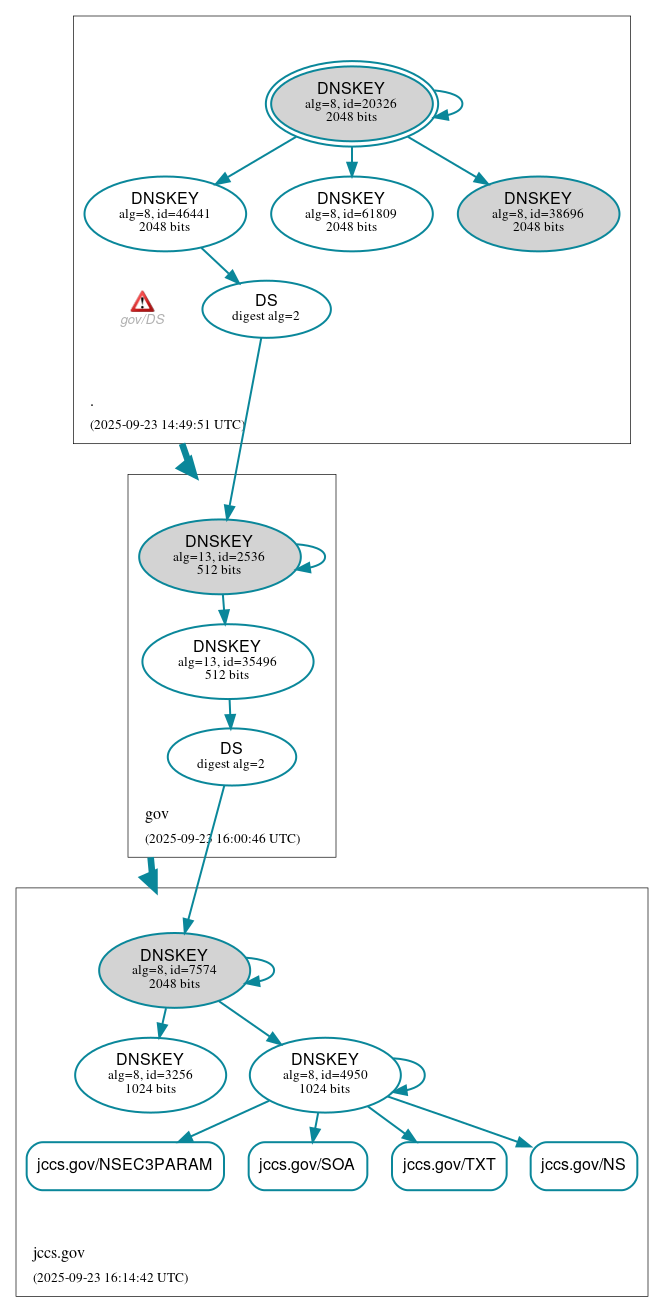

DNSSEC authentication graph
