DNSViz: A DNS visualization tool

itis.gov

Updated: 2021-06-19 18:32:59 UTC (3 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • itis.gov/A
  • itis.gov/MX
  • itis.gov/NS
  • itis.gov/SOA
  • itis.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 14631)
  • ./DNSKEY (alg 8, id 20326)
  • gov/DNSKEY (alg 8, id 48498)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • itis.gov/DNSKEY (alg 8, id 39610)
  • itis.gov/DNSKEY (alg 8, id 43225)
  • itis.gov/DS (alg 8, id 39610)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to itis.gov

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

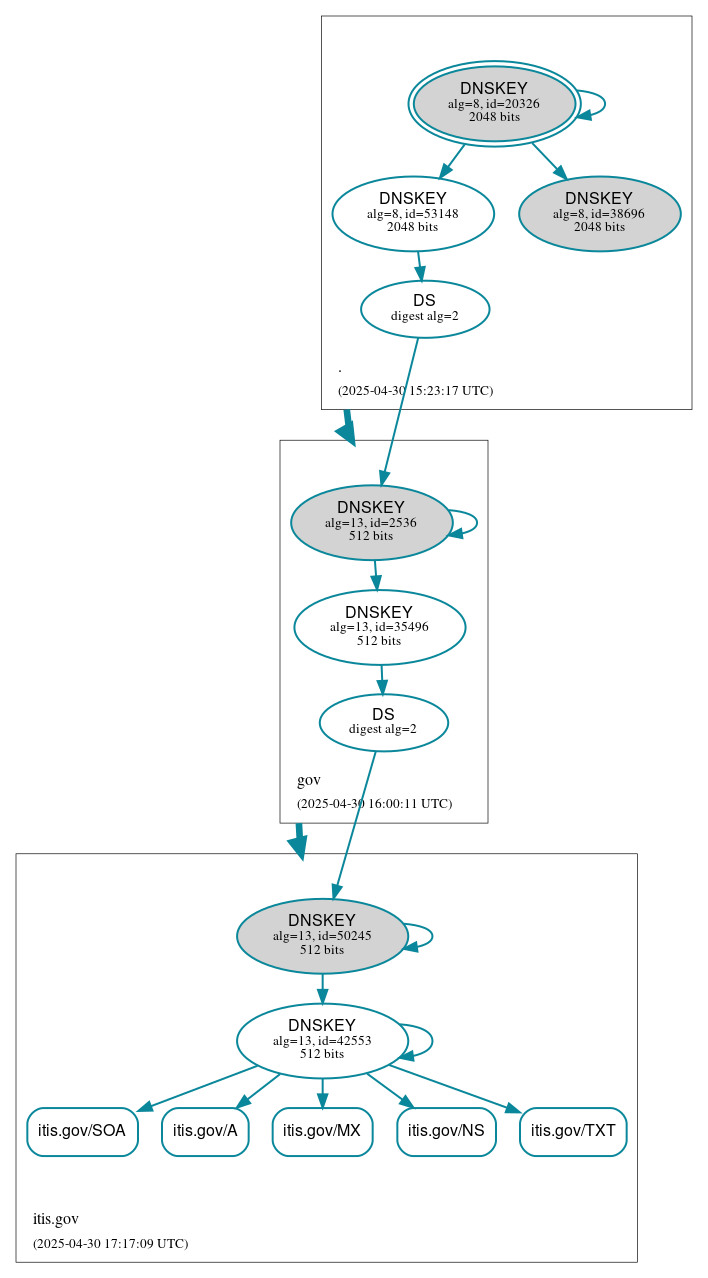

DNSSEC authentication graph
