DNSViz: A DNS visualization tool

isthekey.duckdns.org

Updated: 2025-06-03 18:47:19 UTC (198 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (1)
  • isthekey.duckdns.org/A
Secure (1)
  • org/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (8)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 53148)
  • NSEC3 proving non-existence of duckdns.org/DS
  • org/DNSKEY (alg 8, id 26974)
  • org/DNSKEY (alg 8, id 321)
  • org/DNSKEY (alg 8, id 46023)
  • org/DS (alg 8, id 26974)

Delegation statusDelegation status

Insecure (1)
  • org to duckdns.org
Secure (1)
  • . to org

NoticesNotices

Errors (9)
  • duckdns.org zone: The server(s) were not responsive to queries over TCP. See RFC 1035, Sec. 4.2. (3.97.58.28, 15.223.21.81, 99.79.16.64)
  • duckdns.org zone: The server(s) were not responsive to queries over UDP. See RFC 1035, Sec. 4.2. (15.222.19.97, 15.223.106.16, 35.182.183.211)
  • duckdns.org/DNSKEY: No response was received from the server over TCP (tried 10 times). See RFC 1035, Sec. 4.2. (99.79.16.64, TCP_-_EDNS0_4096_D_N)
  • duckdns.org/DNSKEY: No response was received from the server over TCP (tried 6 times). See RFC 1035, Sec. 4.2. (3.97.58.28, TCP_-_EDNS0_4096_)
  • duckdns.org/DNSKEY: No response was received from the server over TCP (tried 9 times). See RFC 1035, Sec. 4.2. (15.223.21.81, TCP_-_EDNS0_4096_D)
  • duckdns.org/DNSKEY: No response was received from the server over UDP (tried 4 times). See RFC 1035, Sec. 4.2. (3.97.58.28, 15.223.21.81, 35.183.157.249, 99.79.16.64, 99.79.143.35, UDP_-_EDNS0_512_D_KN)
  • isthekey.duckdns.org/A: No response was received from the server over UDP (tried 12 times). See RFC 1035, Sec. 4.2. (3.97.58.28, UDP_-_NOEDNS_)
  • duckdns.org/CNAME has errors; select the "Denial of existence" DNSSEC option to see them.
  • isthekey.duckdns.org/AAAA has errors; select the "Denial of existence" DNSSEC option to see them.
Warnings (5)
  • NSEC3 proving non-existence of duckdns.org/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.
  • NSEC3 proving non-existence of duckdns.org/DS: The salt value for an NSEC3 record should be empty. See RFC 9276, Sec. 3.1.
  • isthekey.duckdns.org/A: No response was received from the server over UDP (tried 6 times) until the COOKIE EDNS option was removed (however, this server appeared to respond legitimately to other queries with the COOKIE EDNS option present). See RFC 6891, Sec. 6.1.2. (3.97.51.116, UDP_-_EDNS0_4096_D_KN)
  • duckdns.org/CNAME has warnings; select the "Denial of existence" DNSSEC option to see them.
  • isthekey.duckdns.org/AAAA has warnings; select the "Denial of existence" DNSSEC option to see them.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

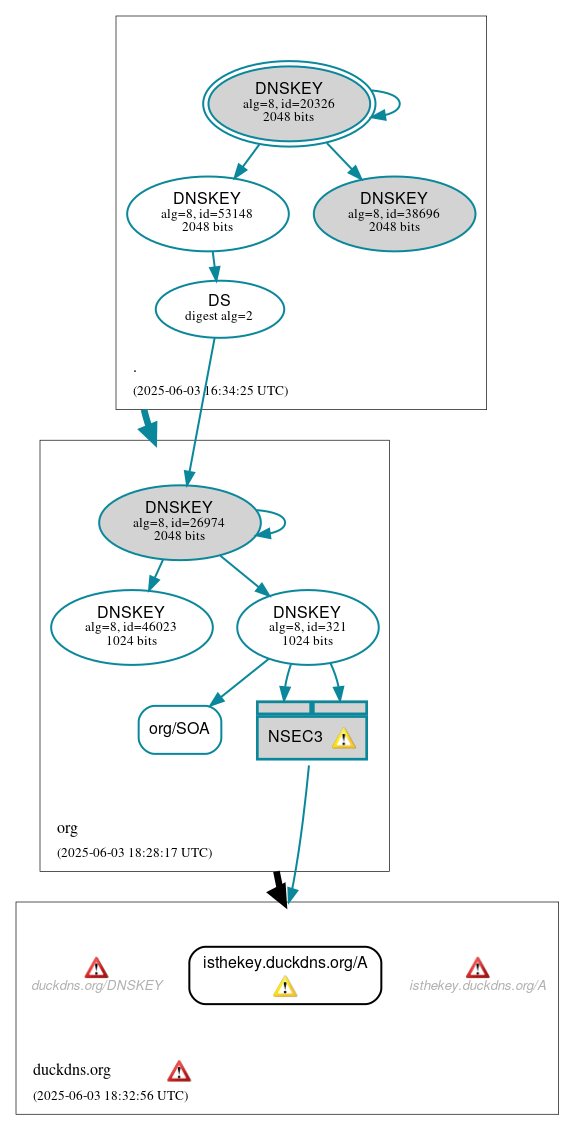

DNSSEC authentication graph
