DNSViz: A DNS visualization tool

inl.gov

Updated: 2020-06-26 01:27:28 UTC (123 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • inl.gov/A
  • inl.gov/MX
  • inl.gov/NS
  • inl.gov/SOA
  • inl.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 46594)
  • ./DNSKEY (alg 8, id 48903)
  • gov/DNSKEY (alg 8, id 40176)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • inl.gov/DNSKEY (alg 5, id 18274)
  • inl.gov/DNSKEY (alg 5, id 41907)
  • inl.gov/DNSKEY (alg 5, id 46841)
  • inl.gov/DS (alg 5, id 18274)
  • inl.gov/DS (alg 5, id 46841)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to inl.gov

NoticesNotices

Errors (3)
  • inl.gov zone: The server(s) were not responsive to queries over UDP. (2620:0:2b88:b301::10)
  • inl.gov/A: No response was received from the server over UDP (tried 12 times). (2620:0:2b88:b301::10, UDP_-_NOEDNS_)
  • inl.gov/NS: No response was received from the server over UDP (tried 12 times). (2620:0:2b88:b301::10, UDP_-_NOEDNS_)
Warnings (1)
  • gov to inl.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): ns.inl.gov, ns2.inl.gov

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

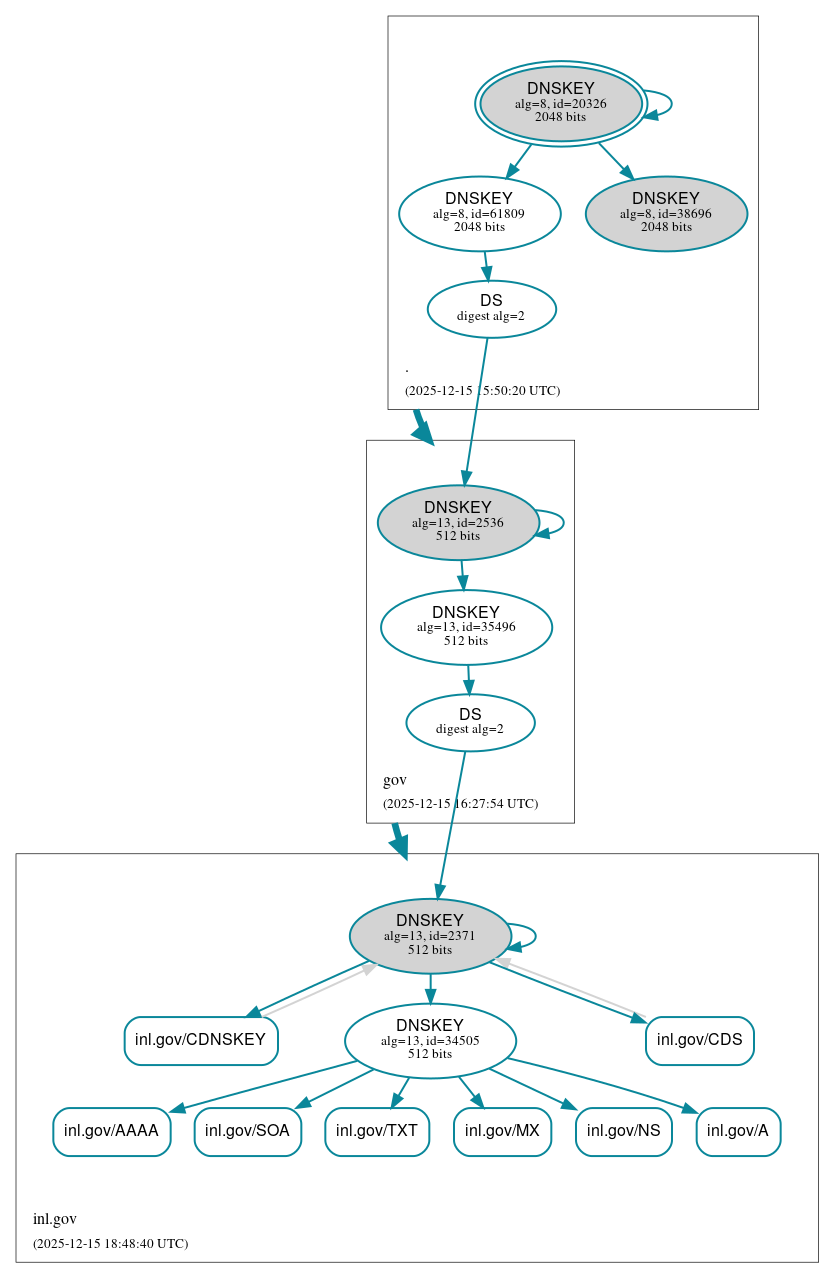

DNSSEC authentication graph
