DNSViz: A DNS visualization tool

ie

Updated: 2024-05-01 09:15:32 UTC (2 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (3)
  • ie/NS
  • ie/NSEC3PARAM
  • ie/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (6)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • ie/DNSKEY (alg 13, id 15040)
  • ie/DNSKEY (alg 13, id 16958)
  • ie/DNSKEY (alg 13, id 64134)
  • ie/DS (alg 13, id 15040)

Delegation statusDelegation status

Secure (1)
  • . to ie

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

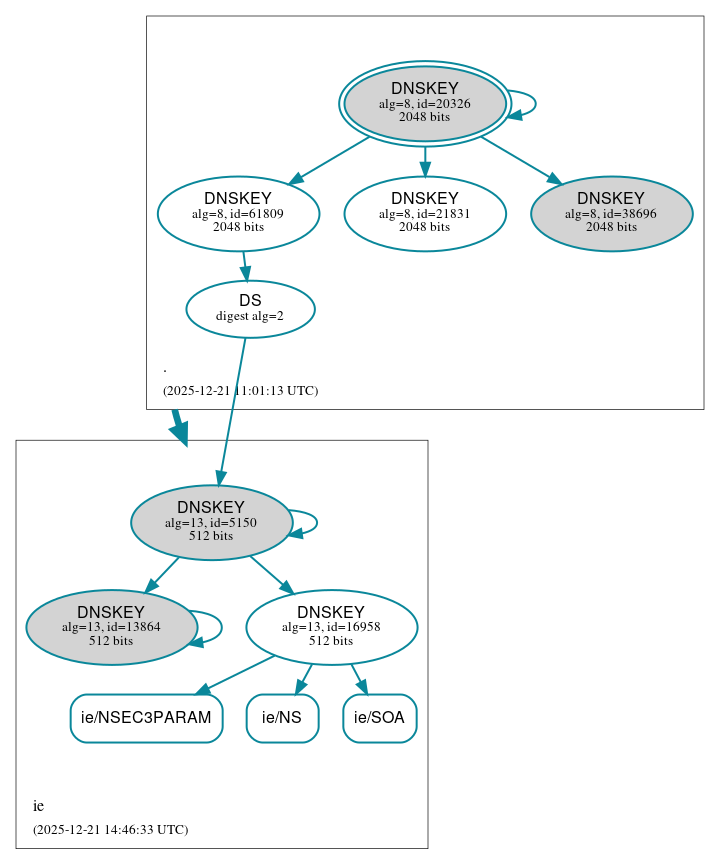

DNSSEC authentication graph
