DNSViz: A DNS visualization tool

hudhomestore.gov

Updated: 2021-10-20 21:14:54 UTC (408 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (5)
  • hudhomestore.gov/A
  • hudhomestore.gov/NS
  • hudhomestore.gov/NSEC3PARAM
  • hudhomestore.gov/SOA
  • hudhomestore.gov/TXT
Secure (1)
  • gov/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Insecure (4)
  • hudhomestore.gov/DNSKEY (alg 7, id 13073)
  • hudhomestore.gov/DNSKEY (alg 7, id 16258)
  • hudhomestore.gov/DNSKEY (alg 7, id 20537)
  • hudhomestore.gov/DNSKEY (alg 7, id 24113)
Secure (7)
  • ./DNSKEY (alg 8, id 14748)
  • ./DNSKEY (alg 8, id 20326)
  • NSEC3 proving non-existence of hudhomestore.gov/DS
  • gov/DNSKEY (alg 8, id 57735)
  • gov/DNSKEY (alg 8, id 6229)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)

Delegation statusDelegation status

Insecure (1)
  • gov to hudhomestore.gov
Secure (1)
  • . to gov

NoticesNotices

Warnings (18)
  • RRSIG hudhomestore.gov/A alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 16258: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 16258: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 16258: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/DNSKEY alg 7, id 16258: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/NS alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/NSEC3PARAM alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/SOA alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • RRSIG hudhomestore.gov/TXT alg 7, id 13073: DNSSEC specification recommends not signing with DNSSEC algorithm 7 (RSASHA1NSEC3SHA1).
  • gov to hudhomestore.gov: Authoritative AAAA records exist for ns1.hud.gov, but there are no corresponding AAAA glue records.
  • gov to hudhomestore.gov: Authoritative AAAA records exist for ns2.hud.gov, but there are no corresponding AAAA glue records.
  • gov to hudhomestore.gov: Authoritative AAAA records exist for ns3.hud.gov, but there are no corresponding AAAA glue records.
  • gov to hudhomestore.gov: Authoritative AAAA records exist for ns4.hud.gov, but there are no corresponding AAAA glue records.
  • gov to hudhomestore.gov: The following NS name(s) were found in the authoritative NS RRset, but not in the delegation NS RRset (i.e., in the gov zone): hudgate.hud.gov, hudgater.hud.gov

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

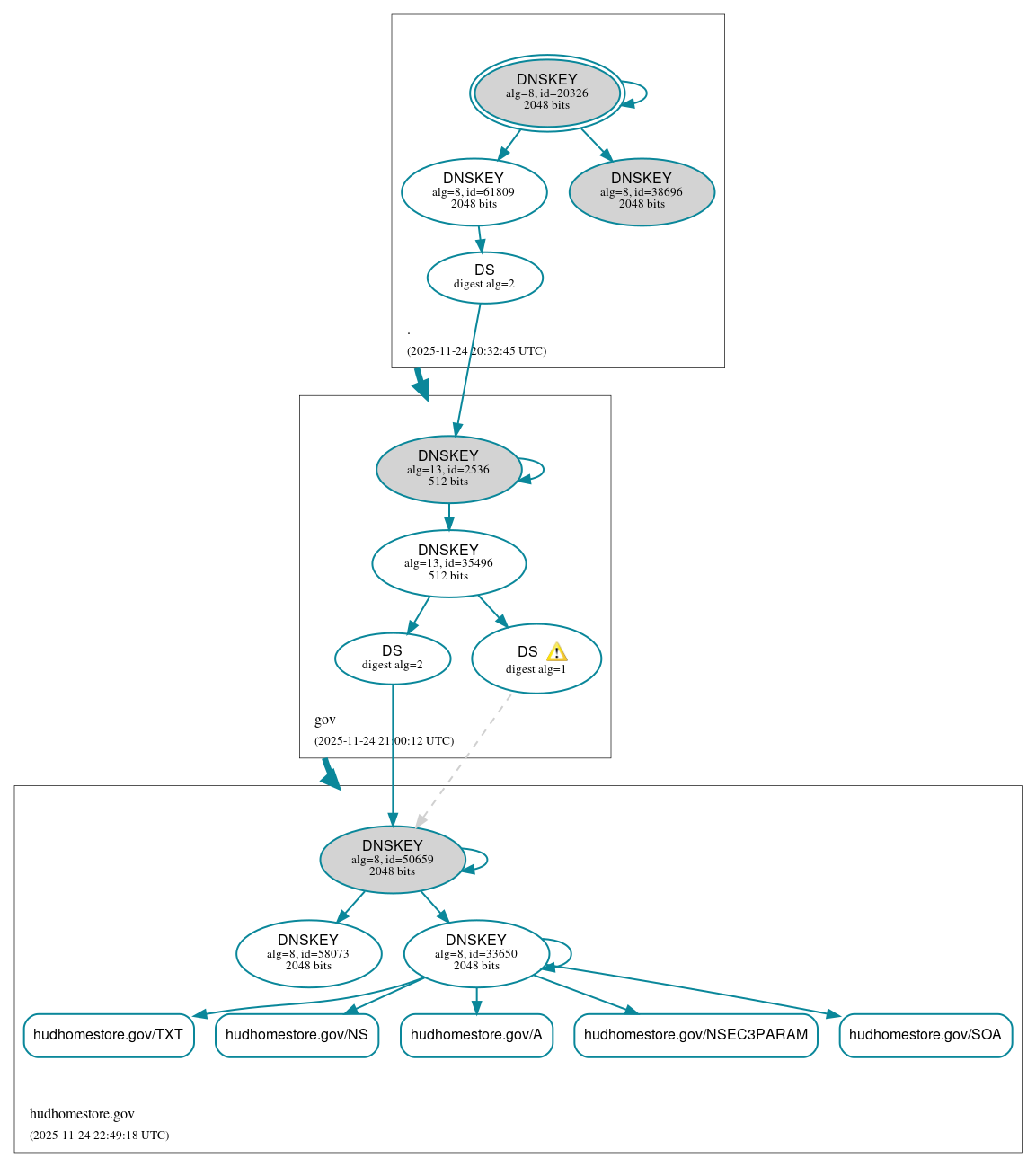

DNSSEC authentication graph
