DNSViz: A DNS visualization tool

hpc.mil

Updated: 2024-05-02 14:49:15 UTC (24 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • hpc.mil/A
  • hpc.mil/AAAA
  • hpc.mil/MX
  • hpc.mil/NS
  • hpc.mil/SOA
  • hpc.mil/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (12)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 5613)
  • hpc.mil/DNSKEY (alg 13, id 15771)
  • hpc.mil/DNSKEY (alg 13, id 43333)
  • hpc.mil/DNSKEY (alg 13, id 51716)
  • hpc.mil/DNSKEY (alg 13, id 7774)
  • hpc.mil/DS (alg 13, id 51716)
  • hpc.mil/DS (alg 13, id 51716)
  • mil/DNSKEY (alg 8, id 16801)
  • mil/DNSKEY (alg 8, id 25501)
  • mil/DNSKEY (alg 8, id 45154)
  • mil/DS (alg 8, id 16801)

Delegation statusDelegation status

Secure (2)
  • . to mil
  • mil to hpc.mil

NoticesNotices

Errors (1)
  • mil/DNSKEY: No response was received from the server over UDP (tried 4 times). (2608:4122:2:154::234, UDP_-_EDNS0_512_D_KN)
Warnings (4)
  • hpc.mil/DS (alg 13, id 51716): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • hpc.mil/DS (alg 13, id 51716): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • hpc.mil/DS (alg 13, id 51716): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • hpc.mil/DS (alg 13, id 51716): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

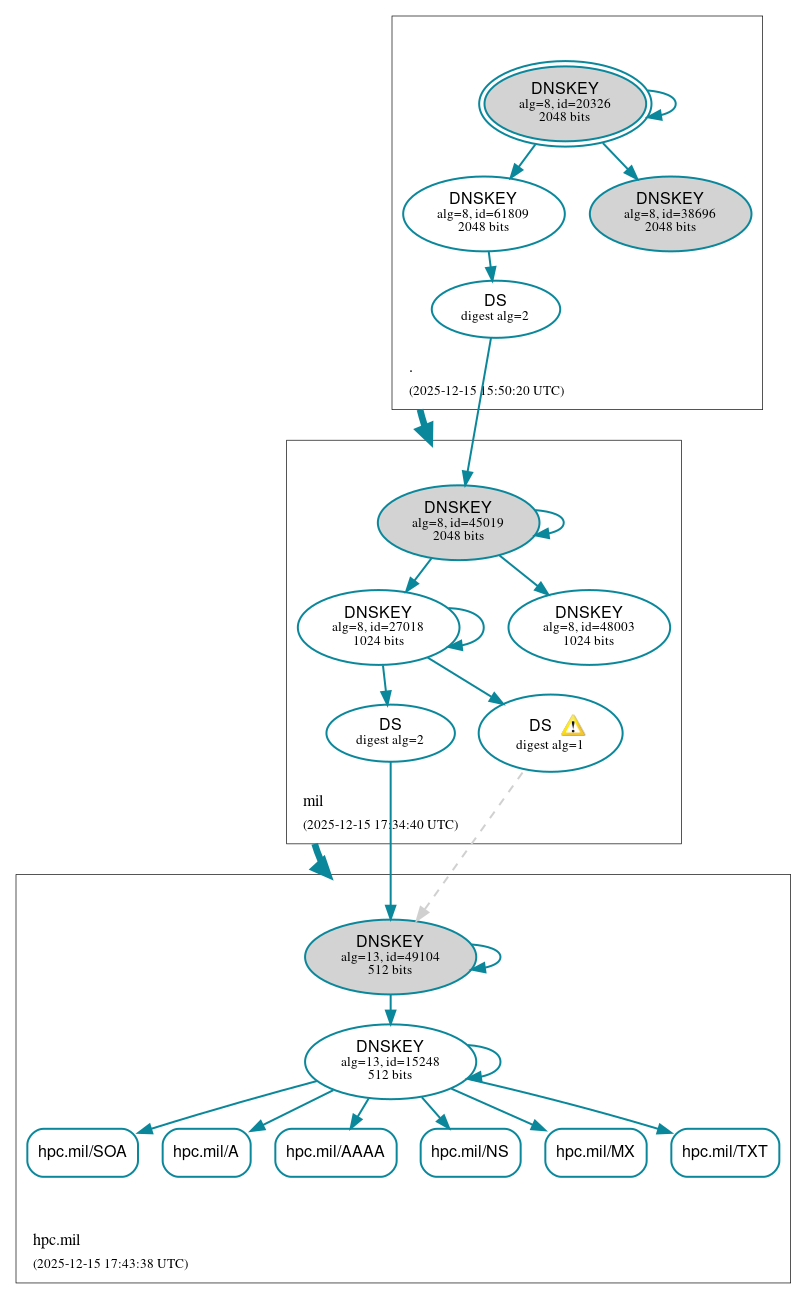

DNSSEC authentication graph
