DNSViz: A DNS visualization tool

helpwithmycreditcard.gov

Updated: 2021-01-13 12:12:47 UTC (246 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (5)
  • helpwithmycreditcard.gov/A
  • helpwithmycreditcard.gov/NS
  • helpwithmycreditcard.gov/SOA
  • helpwithmycreditcard.gov/SOA
  • helpwithmycreditcard.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (11)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 42351)
  • gov/DNSKEY (alg 8, id 15489)
  • gov/DNSKEY (alg 8, id 27306)
  • gov/DNSKEY (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • gov/DS (alg 8, id 7698)
  • helpwithmycreditcard.gov/DNSKEY (alg 8, id 1324)
  • helpwithmycreditcard.gov/DNSKEY (alg 8, id 405)
  • helpwithmycreditcard.gov/DS (alg 8, id 1324)
  • helpwithmycreditcard.gov/DS (alg 8, id 1324)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to helpwithmycreditcard.gov

NoticesNotices

Warnings (12)
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • gov/DS (alg 8, id 7698): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (2001:7fe::53, UDP_-_EDNS0_4096_D_KN)
  • gov/DS (alg 8, id 7698): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (2001:7fe::53, UDP_-_EDNS0_4096_D_KN)
  • gov/DS (alg 8, id 7698): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (2001:7fe::53, UDP_-_EDNS0_4096_D_KN)
  • gov/DS (alg 8, id 7698): No response was received until the UDP payload size was decreased, indicating that the server might be attempting to send a payload that exceeds the path maximum transmission unit (PMTU) size. (2001:7fe::53, UDP_-_EDNS0_4096_D_KN)
  • helpwithmycreditcard.gov/DS (alg 8, id 1324): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • helpwithmycreditcard.gov/DS (alg 8, id 1324): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • helpwithmycreditcard.gov/DS (alg 8, id 1324): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • helpwithmycreditcard.gov/DS (alg 8, id 1324): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

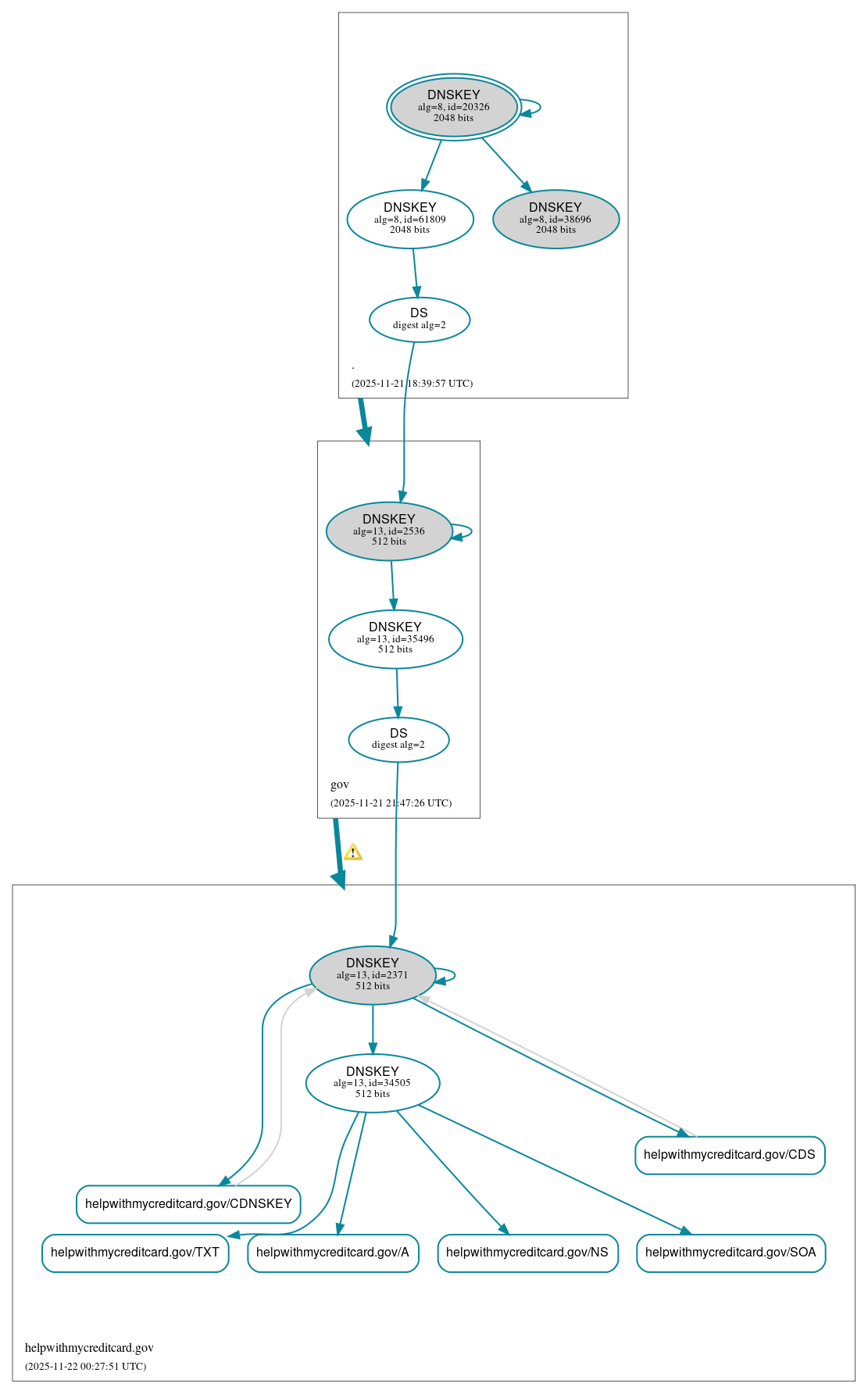

DNSSEC authentication graph
