DNSViz: A DNS visualization tool

ha.mynym.us

Updated: 2025-06-18 15:48:59 UTC (172 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
  8. |?|
  9. |?|
  10. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Insecure (1)
  • ha.mynym.us/A
Secure (1)
  • us/SOA

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (7)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 38696)
  • ./DNSKEY (alg 8, id 53148)
  • NSEC3 proving non-existence of mynym.us/DS
  • us/DNSKEY (alg 8, id 54159)
  • us/DNSKEY (alg 8, id 59017)
  • us/DS (alg 8, id 59017)

Delegation statusDelegation status

Insecure (1)
  • us to mynym.us
Secure (1)
  • . to us

NoticesNotices

Errors (6)
  • us/DS (alg 8, id 59017): DNSSEC was effectively downgraded because the response had an invalid RCODE (SERVFAIL) with EDNS enabled. See RFC 6891, Sec. 7, RFC 2671, Sec. 5.3. (2001:500:a8::e, UDP_-_NOEDNS_)
  • us/DS (alg 8, id 59017): DNSSEC was effectively downgraded because the response had an invalid RCODE (SERVFAIL) with EDNS enabled. See RFC 6891, Sec. 7, RFC 2671, Sec. 5.3. (2001:500:a8::e, UDP_-_NOEDNS_)
  • us/DS (alg 8, id 59017): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • us/DS (alg 8, id 59017): The DNSSEC records necessary to validate the response could not be retrieved from the server. See RFC 4035, Sec. 3.1.1, RFC 4035, Sec. 3.1.3. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • us/DS (alg 8, id 59017): The response had an invalid RCODE (SERVFAIL) until EDNS was disabled (however, this server appeared to respond legitimately to other queries with EDNS enabled). See RFC 6891, Sec. 6.2.6. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)
  • us/DS (alg 8, id 59017): The response had an invalid RCODE (SERVFAIL) until EDNS was disabled (however, this server appeared to respond legitimately to other queries with EDNS enabled). See RFC 6891, Sec. 6.2.6. (2001:500:a8::e, UDP_-_EDNS0_4096_D_KN)

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

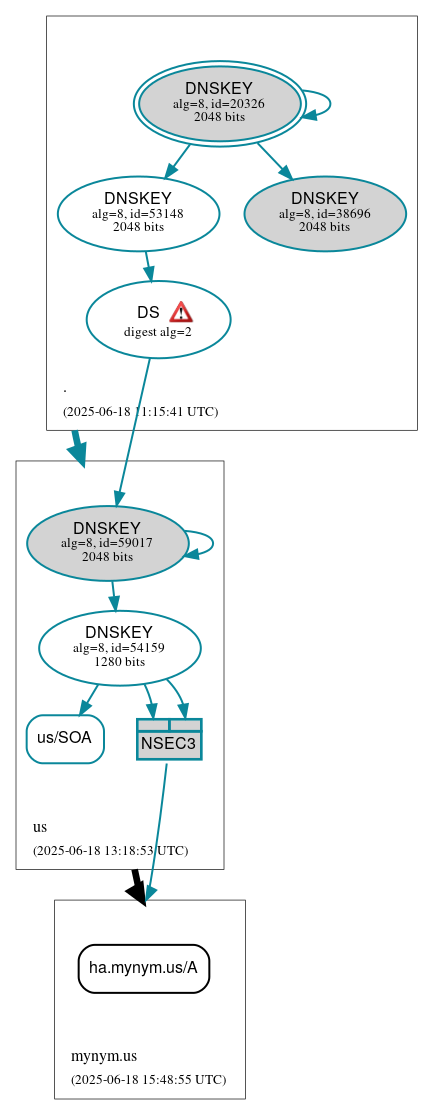

DNSSEC authentication graph
