DNSViz: A DNS visualization tool

fedoraproject.org

Updated: 2022-04-18 00:04:01 UTC (117 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • fedoraproject.org/A
  • fedoraproject.org/AAAA
  • fedoraproject.org/MX
  • fedoraproject.org/NS
  • fedoraproject.org/SOA
  • fedoraproject.org/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (9)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 47671)
  • fedoraproject.org/DNSKEY (alg 14, id 58125)
  • fedoraproject.org/DNSKEY (alg 14, id 60624)
  • fedoraproject.org/DS (alg 14, id 58125)
  • org/DNSKEY (alg 8, id 10449)
  • org/DNSKEY (alg 8, id 15843)
  • org/DNSKEY (alg 8, id 26974)
  • org/DS (alg 8, id 26974)

Delegation statusDelegation status

Secure (2)
  • . to org
  • org to fedoraproject.org

NoticesNotices

Errors (4)
  • fedoraproject.org zone: The server(s) were not responsive to queries over UDP. (2610:28:3090:3001:dead:beef:cafe:fed5)
  • fedoraproject.org/A: No response was received from the server over UDP (tried 12 times). (2610:28:3090:3001:dead:beef:cafe:fed5, UDP_-_NOEDNS_)
  • fedoraproject.org/NS: No response was received from the server over UDP (tried 12 times). (2610:28:3090:3001:dead:beef:cafe:fed5, UDP_-_NOEDNS_)
  • org zone: The server(s) were not responsive to queries over UDP. (2001:500:c::1)
Warnings (1)
  • org to fedoraproject.org: The glue address(es) for ns02.fedoraproject.org (2610:28:3090:3001:dead:beef:cafe:fed5) differed from its authoritative address(es) (2600:2701:4000:5211:dead:beef:fe:fed7).

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

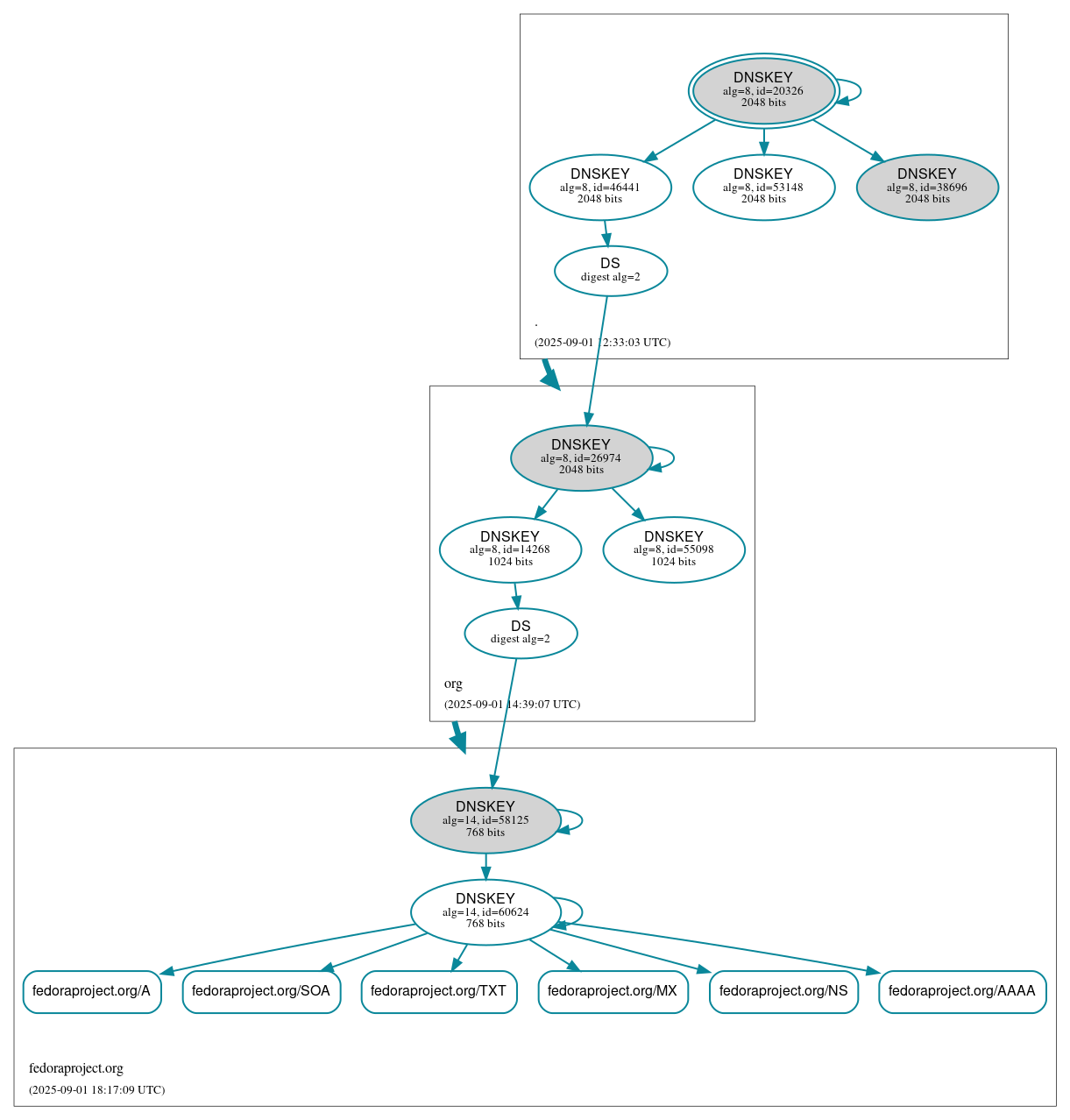

DNSSEC authentication graph
