DNSViz: A DNS visualization tool

fdicoig.gov

Updated: 2024-03-05 20:11:53 UTC (43 days ago) Update now
« Previous analysis | Next analysis »
DNSSEC options (hide)
  1. |?|
  2. |?|
  3. |?|
  4. |?|
  5. |?|
  6. |?|
  7. |?|
Notices
DNSSEC Authentication Chain

RRset statusRRset status

Secure (6)
  • fdicoig.gov/A
  • fdicoig.gov/MX
  • fdicoig.gov/NS
  • fdicoig.gov/NSEC3PARAM
  • fdicoig.gov/SOA
  • fdicoig.gov/TXT

DNSKEY/DS/NSEC statusDNSKEY/DS/NSEC status

Secure (13)
  • ./DNSKEY (alg 8, id 20326)
  • ./DNSKEY (alg 8, id 30903)
  • fdicoig.gov/DNSKEY (alg 8, id 12784)
  • fdicoig.gov/DNSKEY (alg 8, id 39528)
  • fdicoig.gov/DNSKEY (alg 8, id 45330)
  • fdicoig.gov/DNSKEY (alg 8, id 50002)
  • fdicoig.gov/DS (alg 8, id 12784)
  • fdicoig.gov/DS (alg 8, id 50002)
  • fdicoig.gov/DS (alg 8, id 50002)
  • gov/DNSKEY (alg 8, id 10104)
  • gov/DNSKEY (alg 8, id 49735)
  • gov/DNSKEY (alg 8, id 64280)
  • gov/DS (alg 8, id 64280)

Delegation statusDelegation status

Secure (2)
  • . to gov
  • gov to fdicoig.gov

NoticesNotices

Errors (3)
  • fdicoig.gov zone: The server(s) were not responsive to queries over UDP. (2600:1480:4800::40, 2600:1480:d800::41, 2a02:26f0:117::42)
  • fdicoig.gov/A: No response was received from the server over UDP (tried 12 times). (2600:1480:4800::40, 2600:1480:d800::41, 2a02:26f0:117::42, UDP_-_NOEDNS_)
  • fdicoig.gov/NS: No response was received from the server over UDP (tried 12 times). (2600:1480:4800::40, 2600:1480:d800::41, 2a02:26f0:117::42, UDP_-_NOEDNS_)
Warnings (4)
  • fdicoig.gov/DS (alg 8, id 50002): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fdicoig.gov/DS (alg 8, id 50002): DNSSEC specification prohibits signing with DS records that use digest algorithm 1 (SHA-1).
  • fdicoig.gov/DS (alg 8, id 50002): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.
  • fdicoig.gov/DS (alg 8, id 50002): DS records with digest type 1 (SHA-1) are ignored when DS records with digest type 2 (SHA-256) exist in the same RRset.

DNSKEY legend

Full legend
SEP bit setSEP bit set
Revoke bit setRevoke bit set
Trust anchorTrust anchor
Download: png | svg
Warning JavaScript is required to make the graph below interactive.

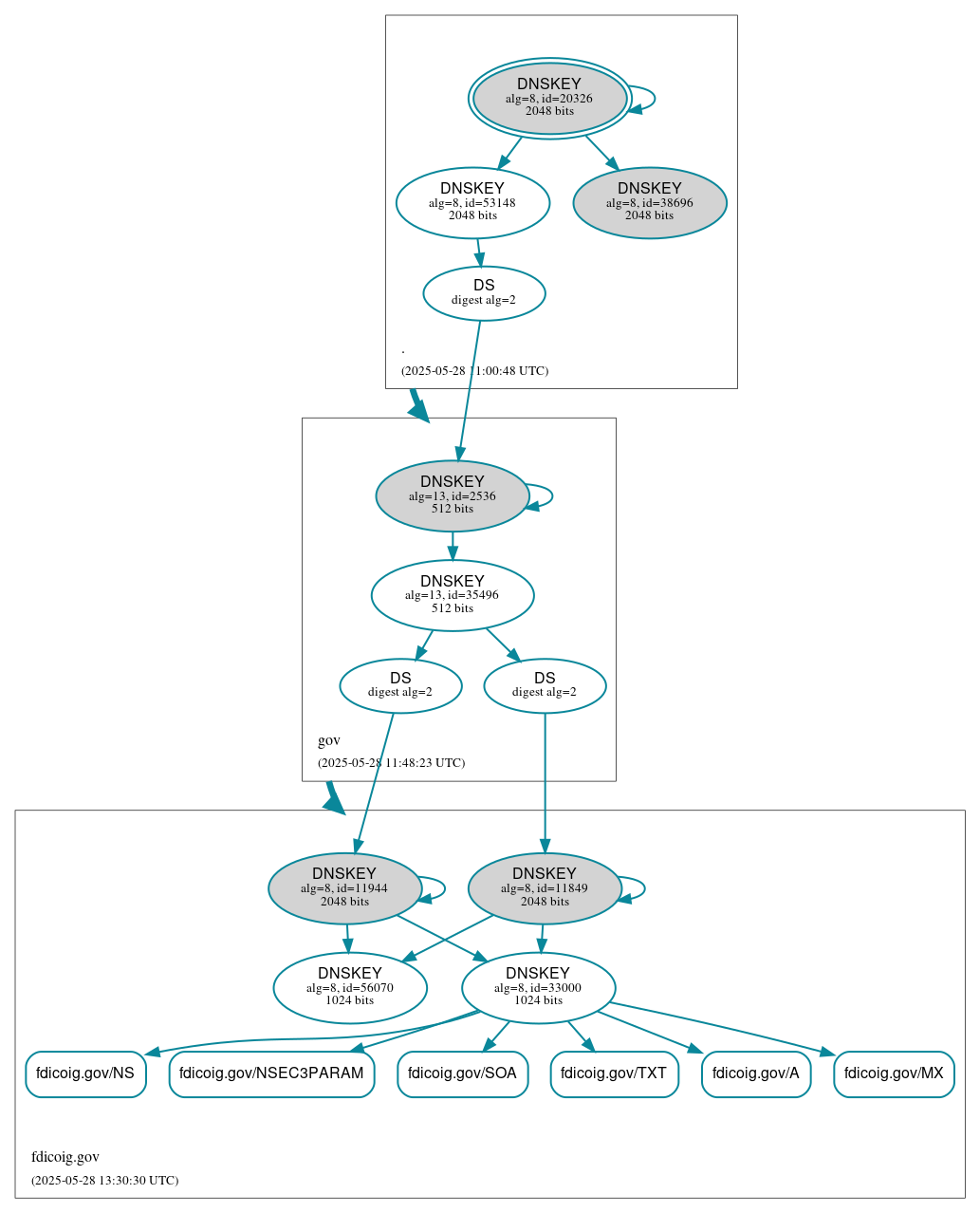

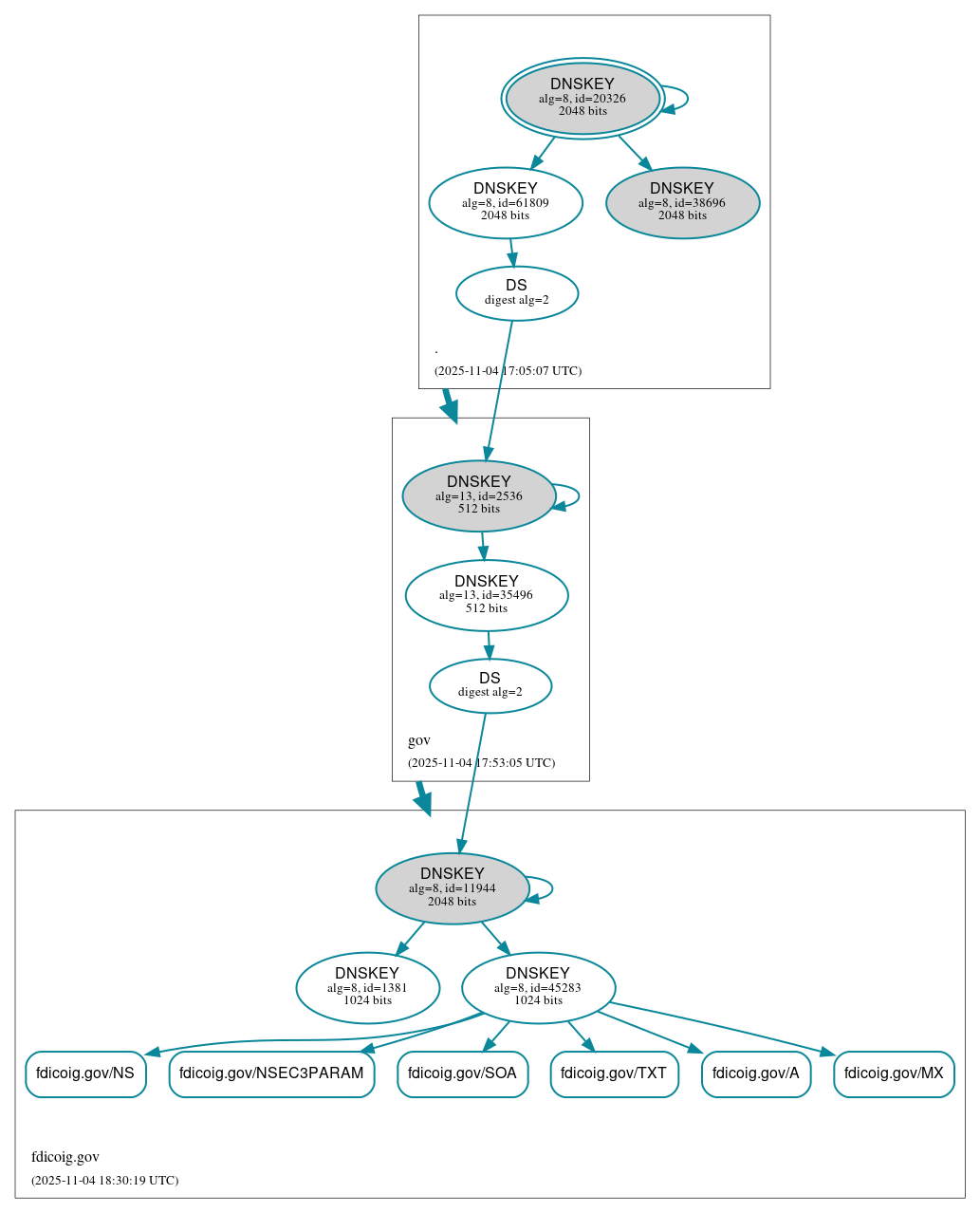

DNSSEC authentication graph
